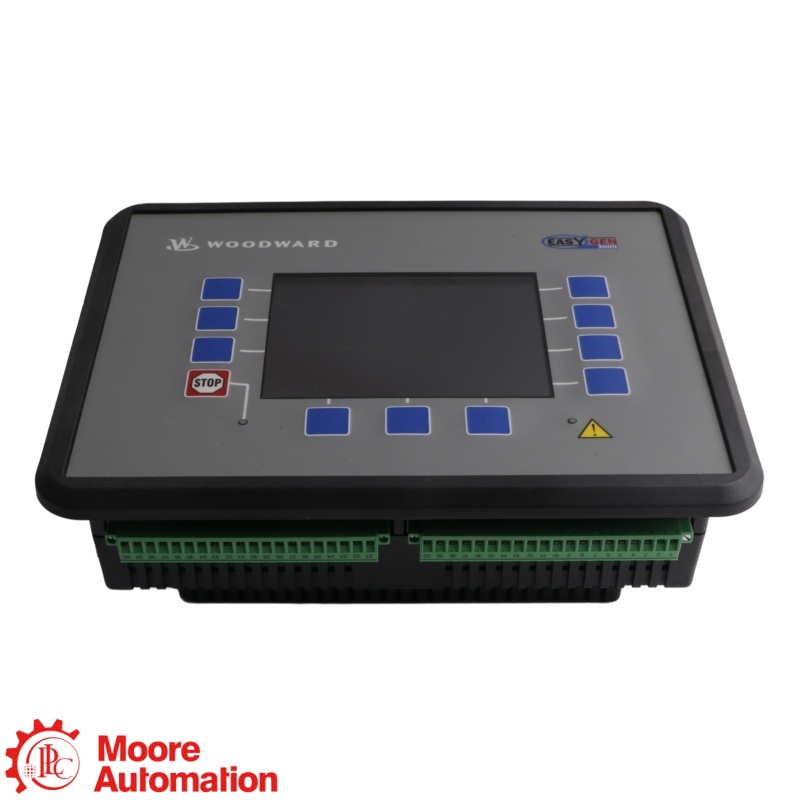

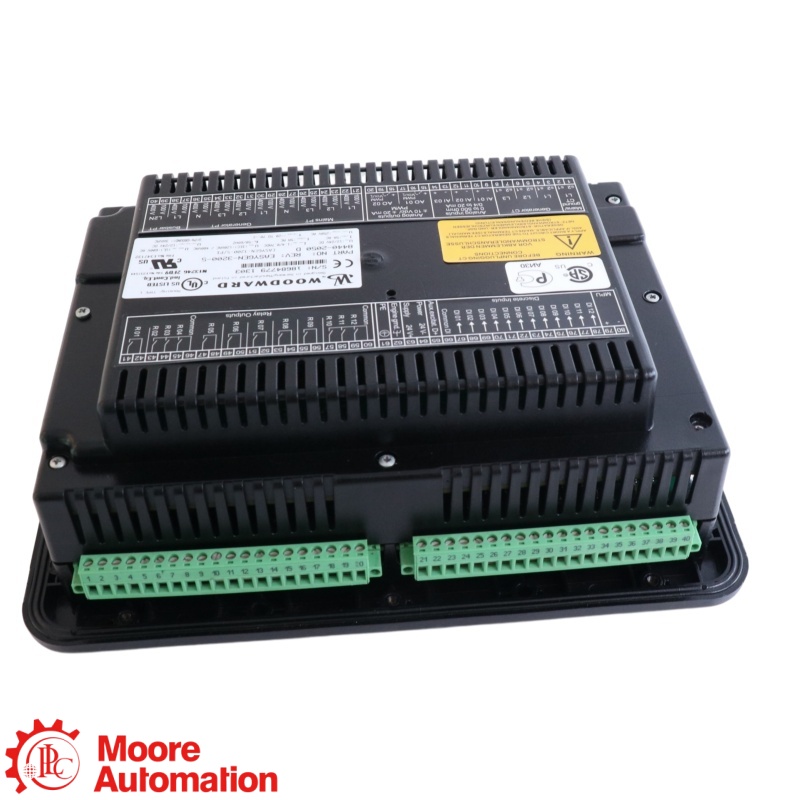

Woodward 8440-2281 easYgen-3200XT-P1-LITE Genset Controller
Woodward 8440-2281 easYgen-3200XT-P1-LITE Genset Controller
Woodward 8440-2281 easYgen-3200XT-P1-LITE Genset Controller

Woodward 8440-2281 easYgen-3200XT-P1-LITE Genset Controller

Woodward easYgen-3000XT · easYgen-3200XT-P1-LITE

8440-2281

The 8440-2281 is Woodward's front-panel HMI easYgen-3200XT-P1-LITE controller for single-backup generators and closed-transition return to mains.

CT INPUTS1 A / 5 A
MOUNTINGFront panel
DISPLAYColor LCD
MODEL PACKAGEP1-LITE
MANUFACTURERWoodward
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
WOODWARD ● GENSET CONTROLLER
Woodward easYgen-3200XT

8440-2281

easYgen-3200XT-P1-LITE · 1 A / 5 A CT

Front-panel HMI · Color display

MODULE ROLE
8440-2281 is Woodward's front-panel HMI easYgen-3200XT-P1-LITE controller for single-backup gensets with closed-transition return to mains.
CONFIGURATION NOTE
For 8440-2281, Woodward identifies 8440-2281 as the front-panel HMI version of the easYgen-3200XT-P1-LITE. The LITE package is intended for single-backup gensets with closed-transition return to mains; verify the configured sensing, wiring and application.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the easYgen-3200XT-P1-LITE reference is identified

easYgen-3200XT-P1-LITE
ModelWoodward easYgen-3200XT-P1-LITE model
8440-2281
Part numberWoodward order number 8440-2281
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Woodward easYgen-3000 ↗
easYgen-3200XT-P1-LITE GENSET CONTROLLER

Engineering data at a glance

Click “+” to expand more specifications.

CT INPUTS1 A / 5 A
MOUNTINGFront panel
DISPLAYColor LCD
MODEL PACKAGEP1-LITE
Official Woodward product data.
Official product verification Verify part number 8440-2281, the easYgen-3200XT-P1-LITE package, 1 A or 5 A CT secondary, panel cutout, display, controller revision, wiring and project settings against the official Woodward documentation before installation or replacement.
General Information −
BrandWoodward
Part number8440-2281
Product typeeasYgen-3200XT-P1-LITE Genset Controller
Product familyWoodward easYgen-3000
Mounting styleFront panel with color display
Controller modeleasYgen-3200XT-P1-LITE
Controller Inputs and I/O ＋
Current-transformer input1 A / 5 A CT inputs
Discrete alarm inputs12 configurable inputs (10)
Discrete outputsUp to 12 configurable outputs
Communications and Expansion ＋
CAN interfaces2 FlexCAN interfaces
Network / service interfacesCAN/CANopen and Modbus · USB 2.0 service port
External discrete I/O16 inputs / 16 outputs via CANopen
Analog inputs3 configurable FlexIn inputs
Analog outputs2 configurable outputs
Listings and Approvals ＋
Official listings and approvals: UL/cUL, CSA, LR and ABS Marine, BDEW / VDE-AR-N 4105, and CE.
Source: Woodward official easYgen-3200XT-LITE product-release information and manual B37927 for part number 8440-2281.
FAQ

Questions Buyers Ask Most

What is 8440-2281 used for?＋

8440-2281 is Woodward's front-panel HMI easYgen-3200XT-P1-LITE controller for single-backup gensets and closed-transition return to mains. Verify the configured sensing, wiring and application before commissioning.

Is 8440-2281 the front-panel HMI version?＋

8440-2281 is the front-panel HMI version of the easYgen-3200XT-P1-LITE package; the backpanel, no-HMI variant is a different part number. Confirm the panel cutout and display requirement before replacement.

Does 8440-2281 support 1 A or 5 A CT sensing?＋

8440-2281 supports the easYgen-3000XT family's 1 A or 5 A current-sensing arrangement. Match the CT secondary, wiring and controller configuration to the installed generator system.

What application is 8440-2281 intended for?＋

8440-2281 is intended for single backup gensets with closed-transition return to the mains supply. The LITE package omits bus-bar voltage measurement, kW/kVAR load sharing, LDSS and import/export control.

Which interfaces are used with 8440-2281?＋

8440-2281 uses the easYgen-3000XT communication architecture with CAN/CANopen and Modbus functions plus a USB 2.0 service port for configuration. Verify firmware, protocol settings and terminal wiring.

What must be checked before replacing a controller with 8440-2281?＋

8440-2281 requires confirmation of the complete part number, P1-LITE package, front-panel HMI, current-sensing arrangement, firmware, settings, wiring and transition sequence before energizing the genset.

Where can official documentation for 8440-2281 be found?＋

8440-2281 Official Woodward product-release information identifies 8440-2281 as CONTROL-EASYGEN-3200XT-P1-LITE and links the B37927 easYgen-3000XT-LITE manual. Match the manual revision to the installed controller.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
8440-2281

Official Woodward documentation for the easYgen-3200XT-P1-LITE genset controller, part number 8440-2281.

Woodward easYgen-3200XT-P1-LITE

Woodward identifies 8440-2281 as the front-panel HMI version of the easYgen-3200XT-P1-LITE. The LITE package is intended for single-backup gensets with closed-transition return to mains; verify the configured sensing, wiring and application.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are based on publicly available official Woodward manufacturer documentation.

easYgen-3000 GENSET CONTROL RELATIONSHIP

How 8440-2281 Fits the Woodward easYgen-3000 System

Woodward is the brand; easYgen-3200XT is the product family; and 8440-2281 is the 1 A / 5 A CT, front-panel P1-LITE HMI package of the easYgen-3200XT genset controller.

Woodward · BRAND
Woodward easYgen-3200XTGENSET CONTROL FAMILY · MULTIPLE-UNIT OPERATION
CONTROLLER MODEL

easYgen-3200XT-P1-LITE · 8440-2281

The easYgen-3200XT-P1-LITE measures generator and mains values and supports closed-transition backup-genset control when configured for the installed application.

MEASUREMENT PACKAGE

1 A / 5 A CT INPUTS

Part number 8440-2281 is the front-panel HMI version; the easYgen-3000XT family supports 1 A or 5 A current sensing, so verify the CT secondary, wiring and panel arrangement.

COMMUNICATIONS

CAN/CANopen · USB 2.0

CAN/CANopen and Modbus communication support controller networking; the USB 2.0 service port is used for configuration on the easYgen-3000XT.

System relationship: verify the P1-LITE package, current-sensing wiring, breaker arrangement, communication settings, firmware and load-sharing topology before installation or replacement.
APPLICATION AREAS

Application mind map for 8440-2281

Single-Backup Genset ControlSingle-backup genset control, synchronization and closed-transition return to mains
Isolated and Parallel OperationSupport single backup gensets with closed-transition return to mains
APPLICATION CENTER 8440-2281 easYgen-3200XT-P1-LITE genset controller
Front-Panel OperationUse the color HMI for controller operation, status and configuration
System IntegrationMatch 1 A or 5 A current sensing, CAN/CANopen, Modbus and USB service connections to the installed generator project
