Vibro-Meter XIO16T 620-002-000-113 VM600 Extended Input/Output Module
Vibro-Meter XIO16T 620-002-000-113 VM600 Extended Input/Output Module
Vibro-Meter XIO16T 620-002-000-113 VM600 Extended Input/Output Module

Vibro-Meter XIO16T 620-002-000-113 VM600 Extended Input/Output Module

Vibro-Meter XIO16T 620-002-000-113

XIO16T 620-002-000-113

The XIO16T 620-002-000-113 is the Meggitt Vibro-Meter VM600 extended input/output module for XMx16 processing modules, providing 16 dynamic and 4 tachometer channels for machinery condition monitoring.

MODULE TYPEXIO16T extended input/output module
SYSTEM FAMILYVM600
COMPATIBILITYXMx16 / VM600 racks
ORDERING NUMBER620-002-000-113
MANUFACTURERMeggitt vibro-meter
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
VIBRO-METER ● XIO16T EXTENDED INPUT/OUTPUT MODULE
Vibro-Meter XIO16T

XIO16T 620-002-000-113

620-002-000-113 · STANDARD ORDERING NUMBER

VM600 version with painted front-panel finish

MODULE ROLE

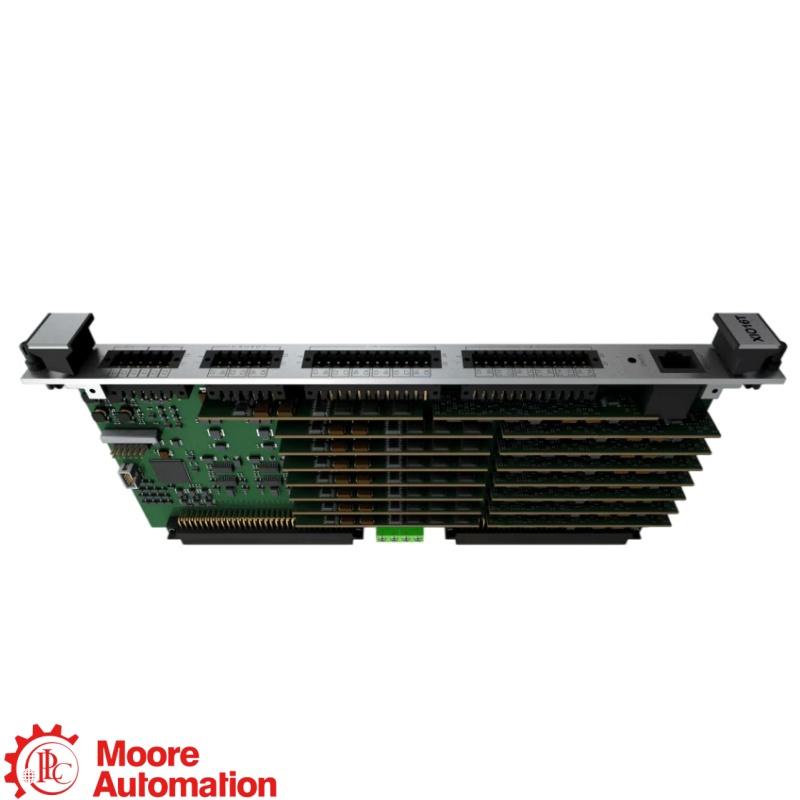

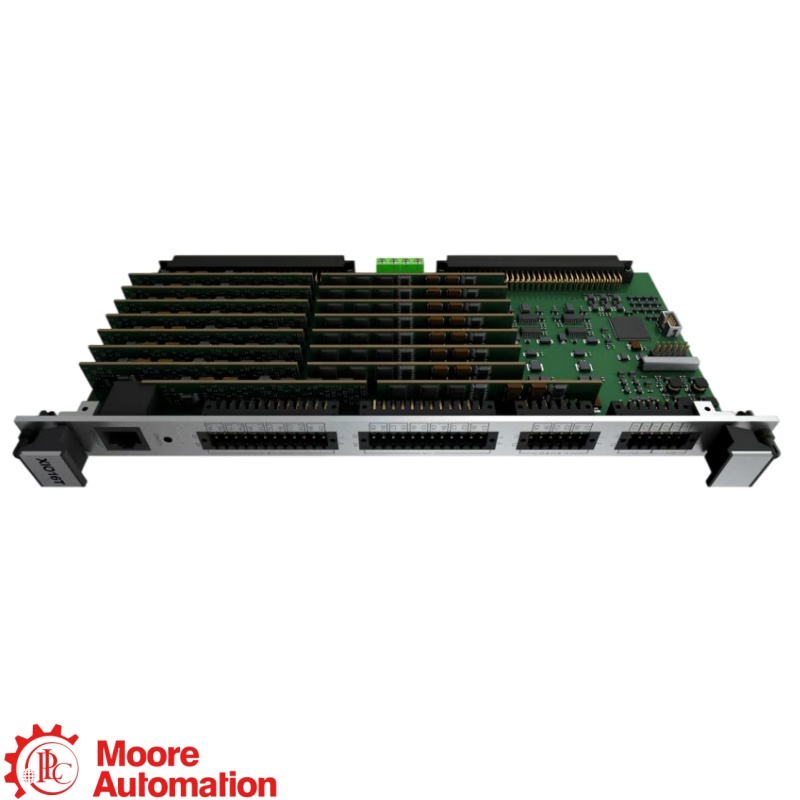

XIO16T 620-002-000-113 is the Meggitt Vibro-Meter VM600 extended input/output module installed at the rear of a compatible XMx16 processing module.
CONFIGURATION NOTE
For XIO16T 620-002-000-113, match the module with a compatible XMV16, XMC16 or XMVS16 processing module, the VM600 rack, sensor wiring and VibroSight configuration.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Meggitt Vibro-Meter ↗
XIO16T EXTENDED INPUT/OUTPUT MODULE

Engineering data at a glance

Click “+” to expand more specifications.

MODULE TYPEVM600 extended input/output module
COMPANIONXMx16
SYSTEMVM600
CHANNELS16 dynamic + 4 tachometer
Official Meggitt Vibro-Meter family reference data.
Official product identityMeggitt document DS 660-020-010-213A directly lists XIO16T 620-002-000-113 as the VM600 extended input/output module for compatible XMx16 processing modules.
GENERAL INFORMATION−
Brand / product lineMeggitt Vibro-Meter
Ordering numberXIO16T 620-002-000-113
Product typeVM600 extended input/output module
System familyXMx16 / XIO16T / VM600
Module roleRear interface module for a compatible VM600 XMx16 processing module
Module characteristicsVM600 version with painted front-panel finish
Operating temperature0 to 65°C (32 to 149°F)
Storage temperature−40 to 85°C (−40 to 185°F)
Operating humidity0 to 90% RH, non-condensing
Power supplyVM600 rack power supply: +5 VDC and ±12 VDC
Module and Rack Configuration＋
System requirementVM600 ABE04x or ABE056 rack with compatible XMx16
Module versionVM600 painted-front-panel version, PNR 620-002-000-113
Physical dimensions6U high × 20 mm wide × 125 mm deep; 0.32 kg approx.
System Integration and Installation＋
Module roleRear interface module for a compatible VM600 XMx16 processing module
Compatible systemVM600 ABE04x or ABE056 rack with compatible XMx16
Companion modulesUsed with a compatible XMV16, XMC16 or XMVS16 processing module
Module interfaceProvides 16 dynamic inputs, 4 tachometer inputs and Ethernet connectivity
Configuration softwareFully software configurable through the matched XMx16 and VibroSight software
Environmental and Mechanical Data＋
Verified XIO16T identity: VM600 extended input/output module, PNR 620-002-000-113 Official reference: Meggitt DS 660-020-010-213A lists XIO16T 620-002-000-113 for VM600 XMx16 extended monitoring modules.
FAQ

Questions Buyers Ask Most

What is XIO16T 620-002-000-113?＋

XIO16T 620-002-000-113 is the VM600 extended input/output module for compatible XMx16 processing modules, with 16 dynamic and 4 tachometer channels.

Which companion module is used with XIO16T 620-002-000-113?＋

XIO16T 620-002-000-113 operates with a compatible XMV16, XMC16 or XMVS16 processing module in a VM600 ABE04x or ABE056 rack.

How many measurement channels does XIO16T 620-002-000-113 support?＋

XIO16T 620-002-000-113 supports 16 dynamic inputs and 4 tachometer inputs when used with its compatible XMx16 processing module.

Which rack or system compatibility applies to XIO16T 620-002-000-113?＋

XIO16T 620-002-000-113 is designed for VM600 ABE04x system racks or ABE056 slimline racks with a compatible XMx16 processing module.

Which connectors are provided on XIO16T 620-002-000-113?＋

XIO16T 620-002-000-113 provides J2 for four tachometer inputs, J3 and J4 for sixteen dynamic inputs, plus an 8P8C Ethernet connector.

What environmental limits apply to XIO16T 620-002-000-113?＋

XIO16T 620-002-000-113 is specified for 0 to 65°C operation and 0 to 90% RH non-condensing conditions in a compatible VM600 installation.

What information should be supplied when ordering XIO16T 620-002-000-113?＋

XIO16T 620-002-000-113 inquiries should include the full PNR, companion XMx16 type, rack model, sensor inputs, connector requirements and VibroSight version.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete ordering code, installed rack, module versions, communications wiring and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Official Data Sheet for
XIO16T 620-002-000-113

The official Meggitt data sheet lists XIO16T 620-002-000-113 as the VM600 extended input/output module for combustion or vibration monitoring.

Meggitt Vibro-Meter XIO16T

Meggitt DS 660-020-010-213A lists the exact XIO16T 620-002-000-113 PNR, specifications, connectors and VM600 compatibility.

OPEN OFFICIAL MANUAL PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Official Meggitt document DS 660-020-010-213A directly lists XIO16T PNR 620-002-000-113 for the VM600 version.

XIO16T VM600 SYSTEM RELATIONSHIP

How XIO16T 620-002-000-113 Fits the Vibro-Meter VM600 System

Meggitt Vibro-Meter is the product line; XIO16T is the rear extended input/output module used with a compatible XMx16; and XIO16T 620-002-000-113 is the exact VM600 painted-front-panel PNR.

Meggitt Vibro-Meter · PRODUCT LINE
XMx16 + XIO16T extended monitoring module pairVM600 condition-monitoring system · MODULE RELATIONSHIP
MODULE MODEL

XIO16T · 620-002-000-113

The XIO16T 620-002-000-113 provides 16 dynamic inputs, 4 tachometer inputs and Ethernet connectivity for a compatible XMx16.

SYSTEM FAMILY

XMx16 · XIO16T · VM600

The XIO16T operates in VM600 ABE04x system racks or ABE056 slimline racks with a compatible XMx16 processing module.

MODULE CHARACTERISTICS

16 dynamic channels · 4 tachometer channels · Ethernet

The XIO16T provides J2 tachometer inputs, J3/J4 dynamic inputs and Ethernet communication for the matched XMx16 and VibroSight software.

Compatibility check: match PNR 620-002-000-113 with a compatible XMV16, XMC16 or XMVS16 module, the VM600 rack and the required sensor wiring.
APPLICATION AREAS

Application mind map for XIO16T 620-002-000-113

Machinery Vibration MonitoringInterfaces acceleration, velocity, displacement, speed and phase-reference signals
Rotor Dynamics AnalysisSupports waveform and spectrum acquisition for rotating machinery analysis
APPLICATION CENTERXIO16T 620-002-000-113VM600 extended input/output module for XMx16
Rolling-Element Bearing AnalysisProvides dynamic channels for high-resolution bearing vibration analysis
Hydro Air-Gap and Magnetic-Flux MonitoringSupports XMV16 applications for hydro air-gap and magnetic-flux monitoring
