VIBRO METER CE281 444-281-000-111 Piezoelectric Pressure Transducer

BRAND/ MANUFACTURER:

PART NUMBER

CONDITION:

COUNTRY OF ORIGIN

VIBRO METER

CE281 444-281-000-111

Brand New Factory Sealed - Original

Name：Frida

Email：sales5@mooreplc.com

Whatsapp：+86 15359408275

Welcome to Inquire

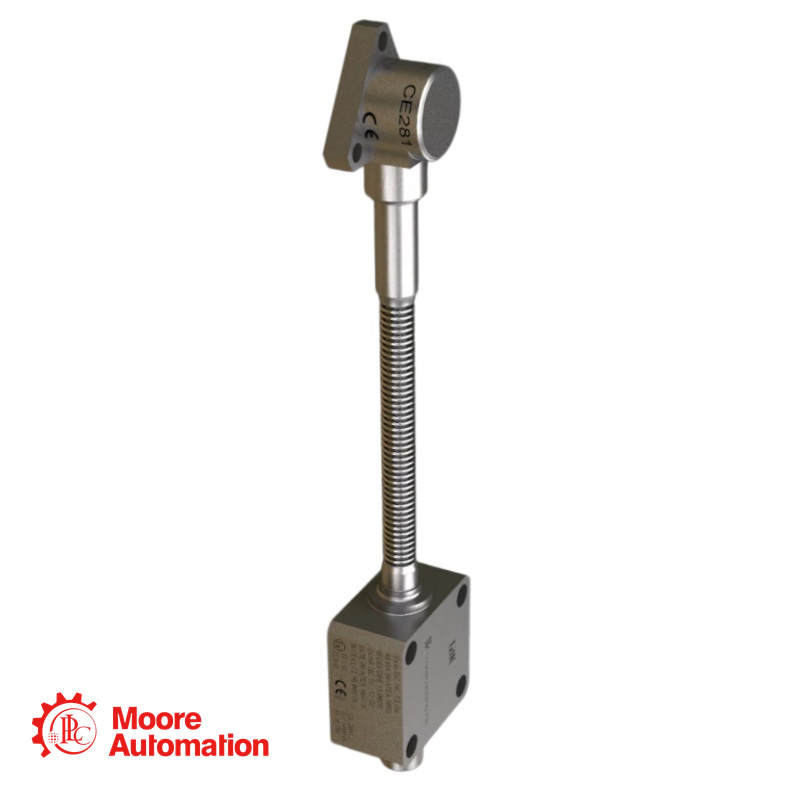

The CE281 piezoelectric accelerometer from Meggitt’s vibro-meter® product line is a vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments and/or hazardous areas.

The CE281 sensor features a centre-mounted symmetrical shear-mode measuring element using polycrystalline material. The sensor uses integrally attached electronics to provide the required signal processing, eliminating the need for an external signal conditioner (charge amplifier). The attached electronics also performs charge-to-current conversion in order to provide a current-modulated output signal that is suitable for transmission over long distances.

From the vibro-meter® product line

Sensitivity: 10 µA/g

Frequency response: 3 to 7000 Hz

Temperature range: −55 to 260°C (sensor) and −40 to 125°C (electronics)

Long-distance signal transmission

Integrally attached electronics

Integral case insulation

Available in standard versions and

Ex versions certified for use in potentially explosive atmospheres

Input power supply requirements : 15 to 28 VDC, with a bias (standby) current of 5 to 8 mA

Signal transmission : Current-modulated output (2-wire system)

Sensitivity : 10 µA/g ±5%

Dynamic measurement range(sensor head only): 0.0001 to 200 g PEAK

Overload capacity (spikes) (sensor head only): Up to 2000 g PEAK

Linearity : ±1% over dynamic measurement range

Sensor head : 2000 g PEAK (half-sine wave, 1 ms duration)
