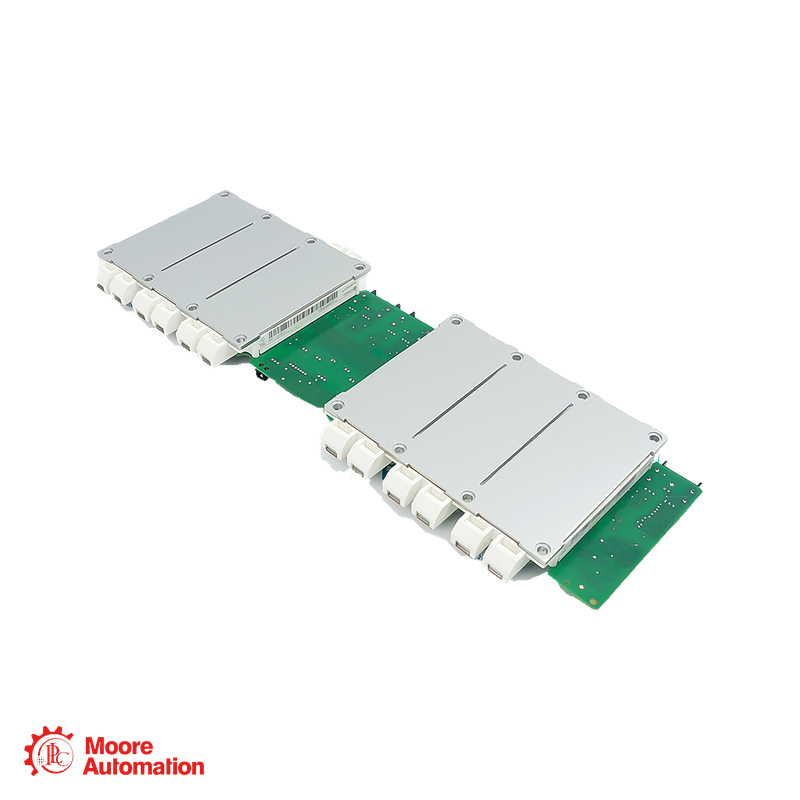

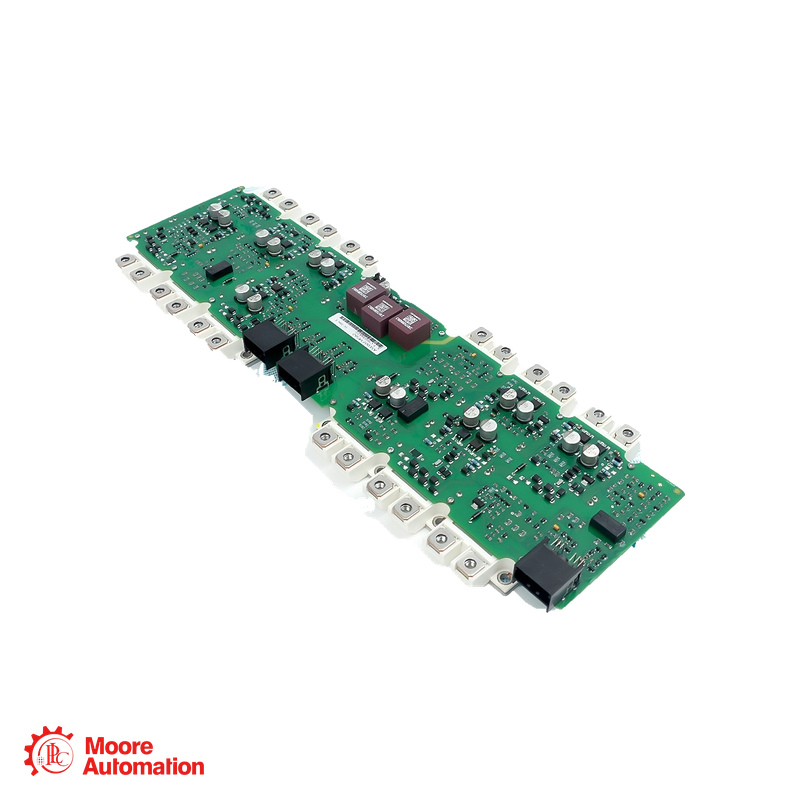

Siemens A5E00755411 SINAMICS S120 PSBC2 Power Board
Siemens A5E00755411 SINAMICS S120 PSBC2 Power Board
Siemens A5E00755411 SINAMICS S120 PSBC2 Power Board

Siemens A5E00755411 SINAMICS S120 PSBC2 Power Board

Siemens SINAMICS S120 · PSBC2 Power Board

A5E00755411

The A5E00755411 identifies a Siemens PSBC2 power board associated with SINAMICS S120 drive electronics. The supplied board information lists a 320–1244 V DC input and 180 W rated output.

PRODUCT TYPEPOWER BOARD
DC INPUT320–1244 V
RATED OUTPUT180 W
PROTECTIONIP00
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● SINAMICS S120 PSBC2 POWER BOARD
Siemens SINAMICS S120

A5E00755411

PSBC2 · Drive Power Board

PSBC2 · Drive Power Board

BOARD ROLE
A5E00755411 identifies a Siemens PSBC2 board used within SINAMICS S120 drive electronics. Its stated role is internal power supply for the drive assembly.
LONG DESCRIPTION
For A5E00755411, the supplied board information lists DC input at 320–1244 V and 0.2–0.7 A, a 24 V DC control supply, and auxiliary 24 V and −24 V outputs. The board is identified as PSBC2 for the SINAMICS S120 drive system.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Contact Frida for documentation ↗
SINAMICS S120 Power Board

Engineering data at a glance

Click “+” to expand more specifications.

BOARD TYPEPSBC2
DC INPUT320–1244 V
RATED OUTPUT180 W
PROTECTIONIP00
PSBC2 board identity and ratings for A5E00755411 follow the supplied product information.
MODEL IDENTITYBoard identifier A5E00755411 is associated with the SINAMICS S120 PSBC2 power board.
General Information −
BrandSiemens
Part numberA5E00755411
Product typePSBC2 power board
Product familySINAMICS S120
Board designationPSBC2
DC bus input320–1244 V DC
Input current0.2–0.7 A
Control supply24 V DC, 8.8 A
Rated output180 W
ProtectionIP00
Board Identification ＋
Board formPrinted circuit board
Board markingA5E00755411
Ingress protectionIP00
Function & Configuration ＋
Installed roleDrive power supply board
Drive familySINAMICS S120
DC input320–1244 V DC
DC input current0.2–0.7 A
Control supply24 V DC, 8.8 A
Output rail 124 V DC / 3 A
Output rail 224 V DC / 3.8 A
Output rail 3−24 V DC / 0.7 A
Source: Supplied PSBC2 board information for A5E00755411.
FAQ

Questions Buyers Ask Most

What is A5E00755411 in SINAMICS S120?＋

A5E00755411 is identified as a Siemens PSBC2 power board associated with SINAMICS S120 drive electronics. It belongs to the drive power-supply assembly and is identified here by its board marking.

What DC input range is listed for A5E00755411?＋

The supplied board information for A5E00755411 lists a DC input of 320–1244 V and 0.2–0.7 A. Match these values to the physical board label and installed drive assembly.

What control supply is listed for A5E00755411?＋

The supplied PSBC2 information for A5E00755411 lists a 24 V DC control supply at 8.8 A. The complete board marking and associated SINAMICS module should be checked together when matching this configuration.

Which auxiliary outputs are listed for A5E00755411?＋

The supplied information for A5E00755411 lists 24 V DC / 3 A, 24 V DC / 3.8 A and −24 V DC / 0.7 A auxiliary outputs, with 180 W rated output. Match the board revision before replacement.

What does the IP00 designation mean for A5E00755411?＋

The supplied board information lists A5E00755411 as IP00. This denotes the board-level protection marking; use the complete installed drive and enclosure information when assessing the finished assembly.

Is A5E00755411 a complete drive order number?＋

The identifier A5E00755411 is used for the PSBC2 board. It should not be substituted for a complete SINAMICS drive or module order number when specifying the installed equipment.

What should be checked when ordering A5E00755411?＋

When ordering A5E00755411, provide the exact board marking, quantity, visible revision and the complete SINAMICS module or drive order number. This helps match the PSBC2 board to the installed configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the A5E board marking, visible revision, installed SINAMICS module number and quantity for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
A5E00755411

Product information and support route for the Siemens PSBC2 board identifier A5E00755411.

Official datasheet status

No exact Siemens-hosted PDF for the PSBC2 board identifier A5E00755411 was located. For board documentation and compatibility details matched to the installed SINAMICS assembly, contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The supplied information identifies A5E00755411 as a PSBC2 power board associated with SINAMICS S120 drive electronics.

MODEL IDENTIFICATION

PSBC2 board identity for A5E00755411

A5E00755411 identifies a Siemens PSBC2 power board associated with SINAMICS S120 drive electronics. Use the board identifier together with the installed module marking.

Siemens · BRAND
Siemens SINAMICS S120PSBC2 Power Board
BOARD IDENTIFIER

A5E00755411

Match A5E00755411 to the PSBC2 board marking, visible revision and installed SINAMICS module number. The board information lists a DC input range of 320–1244 V.

Product identification: Siemens SINAMICS S120 PSBC2 power board, board identifier A5E00755411.
APPLICATION AREAS

Application functions for A5E00755411

Drive Power BoardPower-supply board within SINAMICS S120 drive electronics
DC Bus Input320–1244 V DC input is listed for the PSBC2 board
SINAMICS S120 DRIVE ELECTRONICS A5E00755411 PSBC2 · Drive Power Board
Control Supply24 V DC control supply is listed for the board
Auxiliary Outputs24 V and −24 V output rails serve the drive assembly
