Siemens 6GK5308-2FM10-2AA3 SCALANCE X308-2LD Managed Industrial Ethernet Switch
Siemens 6GK5308-2FM10-2AA3 SCALANCE X308-2LD Managed Industrial Ethernet Switch
Siemens 6GK5308-2FM10-2AA3 SCALANCE X308-2LD Managed Industrial Ethernet Switch

Siemens 6GK5308-2FM10-2AA3 SCALANCE X308-2LD Managed Industrial Ethernet Switch

Siemens SCALANCE X-300 · Managed Industrial Ethernet Switch

6GK5308-2FM10-2AA3

The 6GK5308-2FM10-2AA3 is a Siemens SCALANCE X308-2LD managed Industrial Ethernet switch with two 1000 Mbit/s single-mode SC ports, one 10/100/1000 Mbit/s RJ45 port and seven 10/100 Mbit/s RJ45 ports.

WIDTH120 MM
HEIGHT125 MM
DEPTH123 MM
WEIGHT1.4 KG
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● SCALANCE X308-2LD MANAGED ETHERNET SWITCH
Siemens SCALANCE X-300

6GK5308-2FM10-2AA3

SCALANCE X-300 · MANAGED INDUSTRIAL ETHERNET SWITCH

Managed switching for single-mode fiber and copper Industrial Ethernet networks.

PRODUCT ROLE
6GK5308-2FM10-2AA3 is the Siemens SCALANCE X308-2LD managed Industrial Ethernet switch for connecting single-mode fiber uplinks and copper Ethernet devices in managed industrial networks.
TECHNICAL CONTEXT
The 6GK5308-2FM10-2AA3 provides two 1000 Mbit/s single-mode SC ports, one 10/100/1000 Mbit/s RJ45 port and seven 10/100 Mbit/s RJ45 ports, with PROFINET IO, network management, an integrated redundancy manager, RSTP, VLAN and IGMP.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens 6GK5308-2FM10-2AA3 ↗
SCALANCE X308-2LD MANAGED ETHERNET SWITCH

Engineering data at a glance

Click “+” to expand more specifications.

WIDTH120 MM
HEIGHT125 MM
DEPTH123 MM
WEIGHT1.4 KG

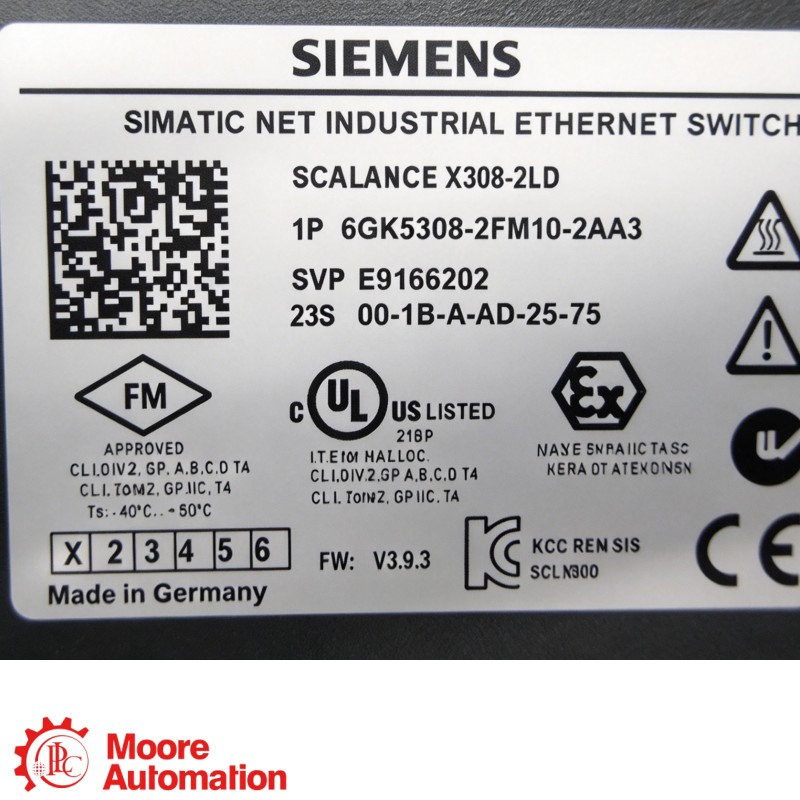

Complete Siemens SCALANCE X308-2LD article number: 6GK5308-2FM10-2AA3.
MODEL IDENTITYExact Siemens SCALANCE X308-2LD managed Industrial Ethernet switch article number: 6GK5308-2FM10-2AA3.
General Information −
BrandSiemens
Part number6GK5308-2FM10-2AA3
Product lineSCALANCE X-300
ModelX308-2LD
Product typeManaged Industrial Ethernet switch
Port configuration2 optical ports + 8 RJ45 ports
Power supply24 V DC
Maximum current400 mA
Protection classIP30
Physical Data ＋
Width120 mm
Height125 mm
Depth123 mm
Device weightApprox. 1.4 kg
Ambient temperature-40 to +60 °C
Interfaces & Network Functions ＋
Optical interfaces2 × 1000 Mbit/s single-mode SC
Gigabit copper interface1 × 10/100/1000 Mbit/s RJ45
Fast Ethernet interfaces7 × 10/100 Mbit/s RJ45
Industrial protocolPROFINET IO device
Network functionsRSTP, VLAN and IGMP
ManagementNetwork management and integrated redundancy manager
Diagnostics and signalingLED diagnostics and error signaling contact
Removable mediaC-PLUG included
Source: Siemens Industry Mall, official SCALANCE X-300 documentation and Siemens certification for 6GK5308-2FM10-2AA3.
FAQ

Questions Buyers Ask Most

What type of product is 6GK5308-2FM10-2AA3?＋

6GK5308-2FM10-2AA3 is the Siemens SCALANCE X308-2LD managed Industrial Ethernet switch for managed fiber and copper industrial networks.

Which Ethernet ports are provided on 6GK5308-2FM10-2AA3?＋

The 6GK5308-2FM10-2AA3 provides one 10/100/1000 Mbit/s RJ45 port and seven 10/100 Mbit/s RJ45 ports.

Which optical interfaces are provided on 6GK5308-2FM10-2AA3?＋

The 6GK5308-2FM10-2AA3 provides two 1000 Mbit/s single-mode optical ports with SC connectors.

Does 6GK5308-2FM10-2AA3 support PROFINET IO and network redundancy?＋

Yes. The 6GK5308-2FM10-2AA3 operates as a PROFINET IO device and includes an integrated redundancy manager with RSTP support.

Which network functions are supported by 6GK5308-2FM10-2AA3?＋

The 6GK5308-2FM10-2AA3 supports network management together with RSTP, VLAN and IGMP functions.

What are the physical and supply data for 6GK5308-2FM10-2AA3?＋

The 6GK5308-2FM10-2AA3 is specified for 24 V DC with a maximum current of 400 mA. Its device dimensions are 120 × 125 × 123 mm and its weight is approximately 1.4 kg.

What should be checked before ordering 6GK5308-2FM10-2AA3?＋

For 6GK5308-2FM10-2AA3, confirm the complete article number, X308-2LD designation, copper and optical port mix, single-mode SC interfaces, power supply and installed network requirements.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, required port mix and installed Industrial Ethernet network details for availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
TECHNICAL DOCUMENTATION

Documentation for
6GK5308-2FM10-2AA3

No exact public PDF for the complete Siemens article number 6GK5308-2FM10-2AA3 was verified. Contact Frida for documentation support.

Exact document check

Send the complete model 6GK5308-2FM10-2AA3 and your documentation requirement so Frida can check the matching technical file.

CONTACT FRIDA FOR DOCUMENTATION

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Siemens identifies 6GK5308-2FM10-2AA3 as the SCALANCE X308-2LD managed Industrial Ethernet switch with single-mode fiber and copper Ethernet interfaces.

MODEL IDENTIFICATION

Exact Siemens reference for 6GK5308-2FM10-2AA3

6GK5308-2FM10-2AA3 is the complete Siemens article number for this SCALANCE X308-2LD managed Industrial Ethernet switch with two 1000 Mbit/s single-mode SC ports and eight RJ45 Ethernet ports.

Siemens · BRAND
Siemens SCALANCE X-300X308-2LD MANAGED ETHERNET SWITCH
EXACT ARTICLE NUMBER

6GK5308-2FM10-2AA3

Use the complete article number 6GK5308-2FM10-2AA3 together with the X308-2LD designation, two single-mode SC ports and eight RJ45 Ethernet ports when matching this product.

Product identification: Siemens SCALANCE X308-2LD managed Industrial Ethernet switch, two 1000 Mbit/s single-mode SC ports, eight RJ45 Ethernet ports, article number 6GK5308-2FM10-2AA3.
APPLICATION AREAS

Application fields for 6GK5308-2FM10-2AA3

Managed Industrial EthernetManaged switching for industrial copper Ethernet devices and single-mode fiber uplinks
Fiber and Copper SegmentationConnecting Gigabit single-mode SC links with RJ45 Industrial Ethernet segments
INDUSTRIAL AUTOMATION APPLICATIONS 6GK5308-2FM10-2AA3 SCALANCE X308-2LD MANAGED ETHERNET SWITCH
PROFINET IO InfrastructureManaged network integration as a PROFINET IO device
Redundant Network TopologiesIndustrial Ethernet redundancy using the integrated redundancy manager and RSTP
