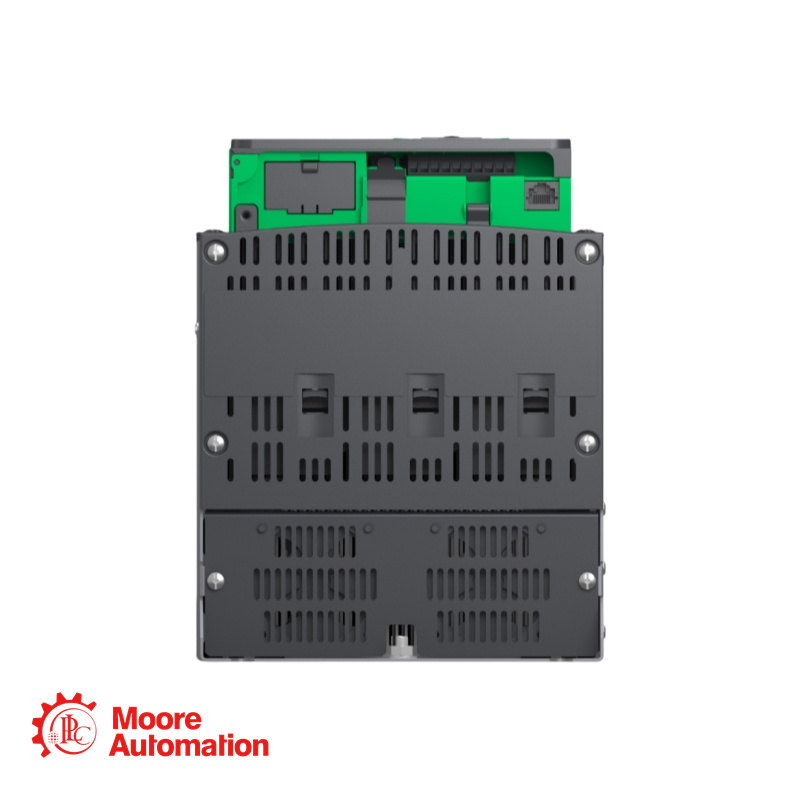

Altivar Soft Starter ATS480D62Y is intended to start and stop asynchronous motors supplied from 208V to 690V. With an operational rated current of 62A in normal duty, it supplies motor from 15kW to 45kW according to mains voltage.
ยี่ห้อ :
Schneiderส่วนจำนวน :
ATS480D62Yน้ำหนัก :
8.3 kgมิติ :
247.0 mm*190.0 mm*290.0 mmประเทศต้นกำเนิด :
Franceรหัส HS :
8537101190คำอธิบาย :
Soft Starter
Want to inquire? Contact us now
Sales Manager: Frida
Phone: +86 15359408275
Email: sales5@mooreplc.com
Product Details
Rated Operational Current (Ie): 62.0 A at <40°C (Normal Duty)
Rated Heavy Duty Current: 47.0 A at 40°C
Main Supply Voltage (Ue): 208...690 V AC, ±15...10%
Supply Frequency: 50...60 Hz, ±20...20%
Utilisation Category: AC-53A
Rated Insulation Voltage (Ui): 690 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Control Supply Voltage (Us): 110...230 V AC, 50/60 Hz, -15...+10%
Internal DC Control Voltage (Uc): 24 V DC
Current Limiting: Adjustable from 150% to 700% of Ie (5 x Ie maximum).
Digital Inputs: 4 (STOP, RUN, DI3, DI4). PLC-compatible, 3500 Ohm, programmable.
Relay Outputs: 3 (R1A NO, R1B NO, R1C NO/NC programmable). 2 A max at 250V AC / 30V DC.
Digital Outputs: 2 (DQ1, DQ2) programmable, open collector, ≤30 V.
Analog Input: 1 configurable for PTC or Pt100 temperature probes (3 channels).
Analog Output: 1 (AQ1) configurable for 0...20 mA or 0...10 V, impedance <500 Ohm.
Communication Port: Modbus serial via 2-wire RS-485 (RJ45 connector). RTU frame, 1200...256000 bit/s, address range 0...247 (Slave).
Power Loss (Static): 25.0 W (current-independent)
Power Loss (Device): 181.0 W (current-dependent at rated current)
Apparent Power: 0.09 kVA
Operating Temperature: -15...40°C (no derating), 40...60°C (with 2% current derating per °C)
Storage Temperature: -25...70°C
Relative Humidity: 0...95% (non-condensing)
