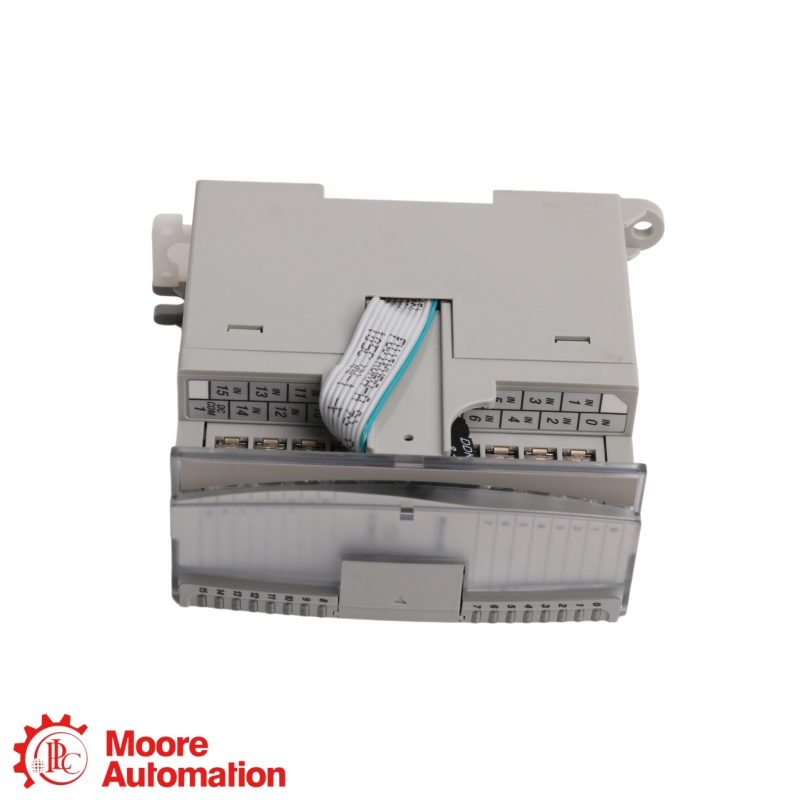

Rockwell Automation 1769-IQ16K is a conformally coated 1769 Compact I/O module with 16 sinking/sourcing digital inputs rated for 24 V DC.
ยี่ห้อ :
Rockwell Automationส่วนจำนวน :
1769-IQ16Kน้ำหนัก :
Approx. 270 gมิติ :
Approx. 118 × 35 × 87 mm (H × W × D)คำอธิบาย :
Rockwell Automation 1769-IQ16K is a conformally coated 1769 Compact I/O module with 16 sinking/sourcing digital inputs rated for 24 V DC.Click “+” to expand more specifications.
Source: Rockwell Automation publication 1769-TD006H-EN-P lists 1769-IQ16K in the 1769-IQ16/1769-IQ16K technical table; the exact product record confirms conformal coating.
1769-IQ16K is a Rockwell Automation 1769 Compact I/O digital input module. It reads 16 field signals in two groups of eight, allowing a compatible controller or adapter assembly to receive 24 V DC input states.
1769-IQ16K supports 24 V DC sinking or sourcing input wiring. Rockwell shows separate commons for its two eight-point groups; select the appropriate field-supply polarity and terminal connections for the installed sensor circuit.
1769-IQ16K provides 16 digital input points arranged as eight points per group. The manufacturer wiring diagram labels separate DC COM 1 and DC COM 2 terminals, so identify the intended group before wiring or troubleshooting.
1769-IQ16K is a nominal 24 V DC input module. Its documented operating range is 10–30 V DC at 30 °C and 10–26.4 V DC at 60 °C; check ambient temperature when selecting field-signal levels.
1769-IQ16K can mount on a DIN rail or panel within a 1769 Compact I/O assembly. Match the controller or adapter, installed power supply and eight-module distance rating before commissioning the input wiring.
1769-IQ16K is the conformally coated version identified by Rockwell Automation’s exact product record. It remains a 16-point 24 V DC sink/source digital input module; retain the full suffix when checking the catalog number or ordering a replacement.
For 1769-IQ16K, provide the complete catalog number, quantity, installed 1769 controller or adapter, power-supply arrangement and terminal-block requirement. Rockwell lists 1769-RTBN18 as the replacement terminal block; confirm the existing assembly and nameplate before purchase.
Rockwell Automation documentation for the exact 1769-IQ16K conformally coated 16-point 24 V DC digital input module.
Rockwell Automation publication 1769-TD006H-EN-P names 1769-IQ16K and documents its 16-point sink/source wiring, operating voltage, delay, dimensions and mounting.
OPEN OFFICIAL MANUAL PDFSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements use Rockwell Automation publication 1769-TD006H-EN-P and the official exact-model 1769-IQ16K product record.
Rockwell Automation identifies 1769-IQ16K as a conformally coated 1769 Compact I/O module with 16 digital inputs. Publication 1769-TD006H-EN-P documents 24 V DC sinking/sourcing operation with eight input points in each of two groups.
The exact conformally coated catalog number listed by Rockwell Automation.
Two groups of eight input points in a 1769 Compact I/O module.
The manufacturer identifies both sinking and sourcing input wiring.
Rockwell lists this part as the replacement terminal block for the module.
The 16 digital inputs receive 24 V DC field-signal states through the 1769 Compact I/O assembly.
Rockwell lists the module for 1769 CompactLogix controller or supported 1769 adapter-based assemblies.
The terminal diagram shows separate common terminals for two groups of eight sinking or sourcing inputs.
The module can be installed on a DIN rail or panel within a compatible 1769 Compact I/O bank.
