RF3D-146-180 - ABB FAN

ABB RF3D-146-180 FAN

Sales Manager: Frida

Email: sales5@mooreplc.com

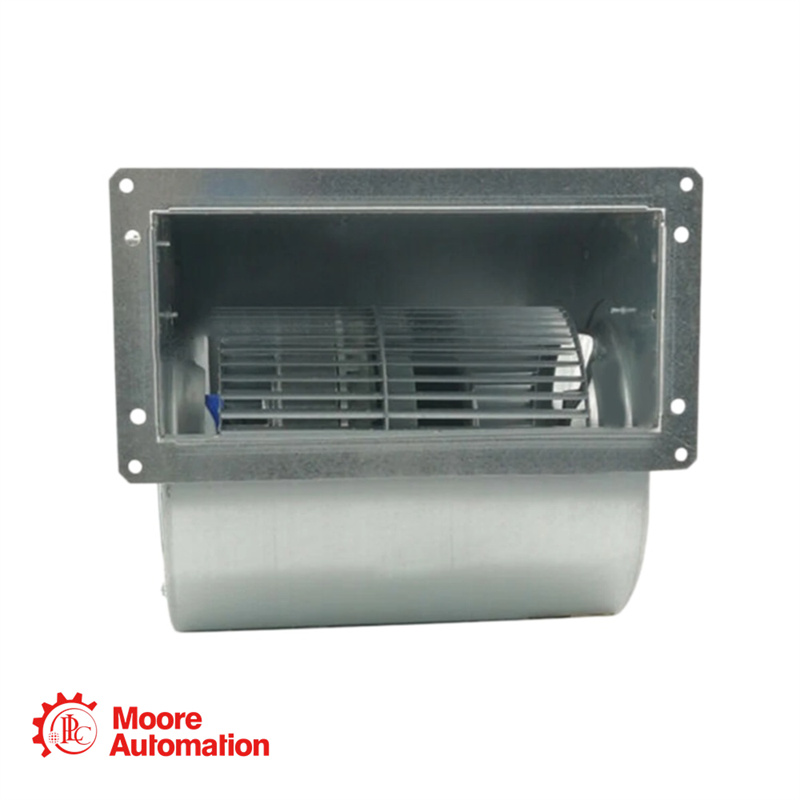

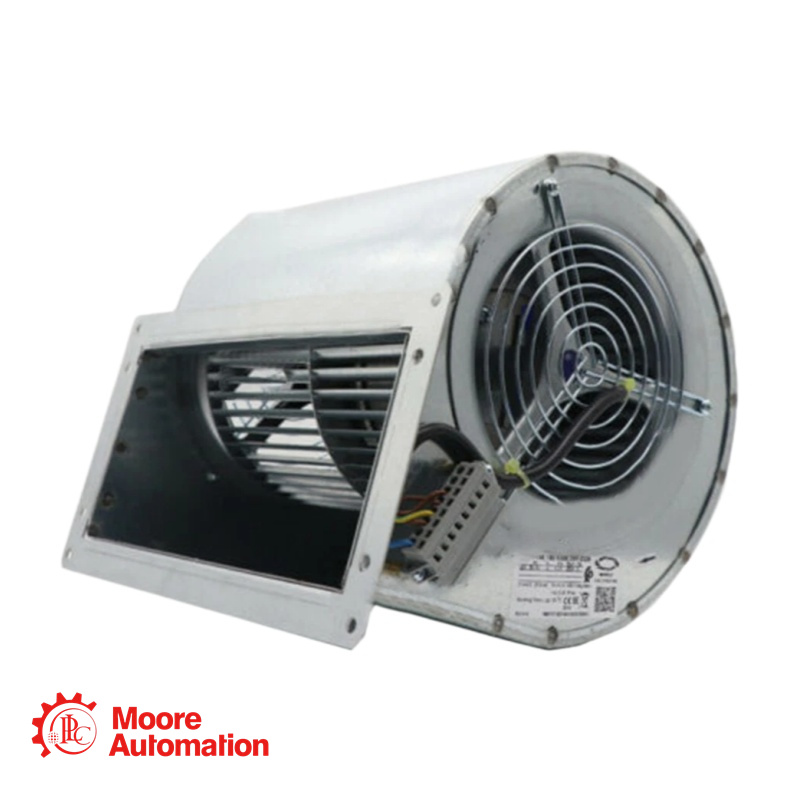

The RF3D-146-180 K506 DSF-2326 is a high-performance, dual-inlet forward-curved EC (Electronically Commutated) centrifugal blower manufactured by EMC (S&P) / ebm-papst. It features an integrated external-rotor motor and durable galvanized sheet steel blades. This fan is primarily engineered as a heavy-duty, long-life cooling solution for ABB ACS800 series industrial inverters and variable frequency drives (VFDs), ensuring optimal thermal management and system reliability.

Model/Cross-ref: RF3D-146-180 K506 DSF-2326 / D3G146-AB06-10Key
Specifications: 230 VAC, ~1.4A, up to 1740 m³/h, ~2694 RPM
Design: Dual inlet with 146mm diameter and maintenance-free bearings
Operating Temp: -25°C to +70°CWeight: 4.7 kg

Q: What is the primary application of the RF3D-146-180 fan?
A: This fan is explicitly designed for the thermal management and cooling of ABB ACS800 series inverters (such as ACS800-07 modules). It helps prevent component overheating, ensuring the system's runtime lifespan.

Q: Does this fan require an external running capacitor?
A: No. Unlike legacy models, the RF3D-146-180 uses modern Electronically Commutated (EC) internal motor driving features. It connects directly to the power source and does not use a starting or running capacitor.

Q: Does this fan require an external running capacitor?
A: No. Unlike legacy models, the RF3D-146-180 uses modern Electronically Commutated (EC) internal motor driving features. It connects directly to the power source and does not use a starting or running capacitor.
