ยี่ห้อ :
Powerexส่วนจำนวน :
CM75YE13-12Fน้ำหนัก :
0.80 kgมิติ :
12.50 cm x 11.35 cm x 2.25 cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :

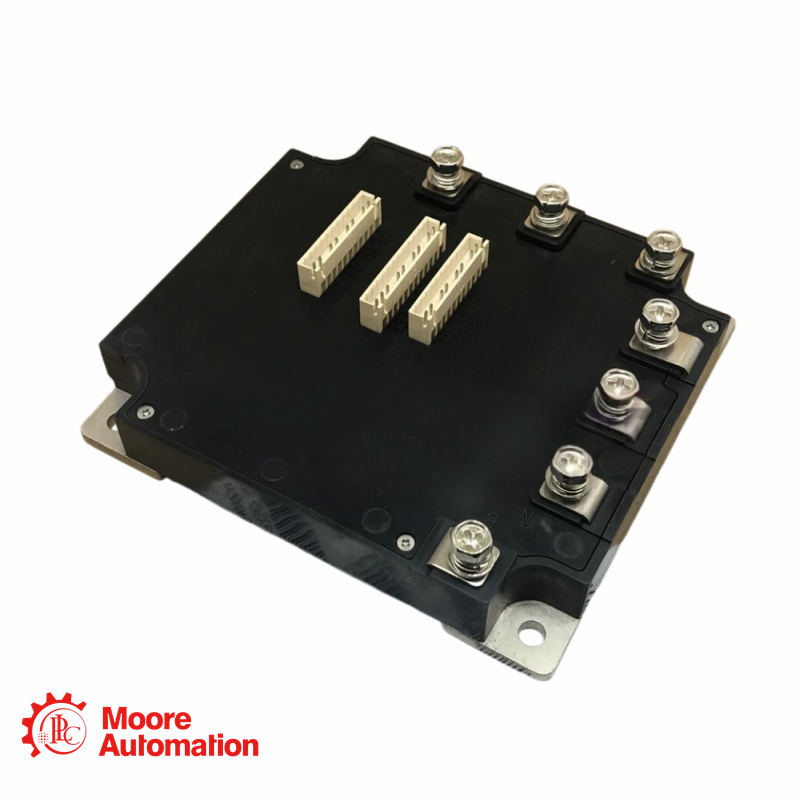

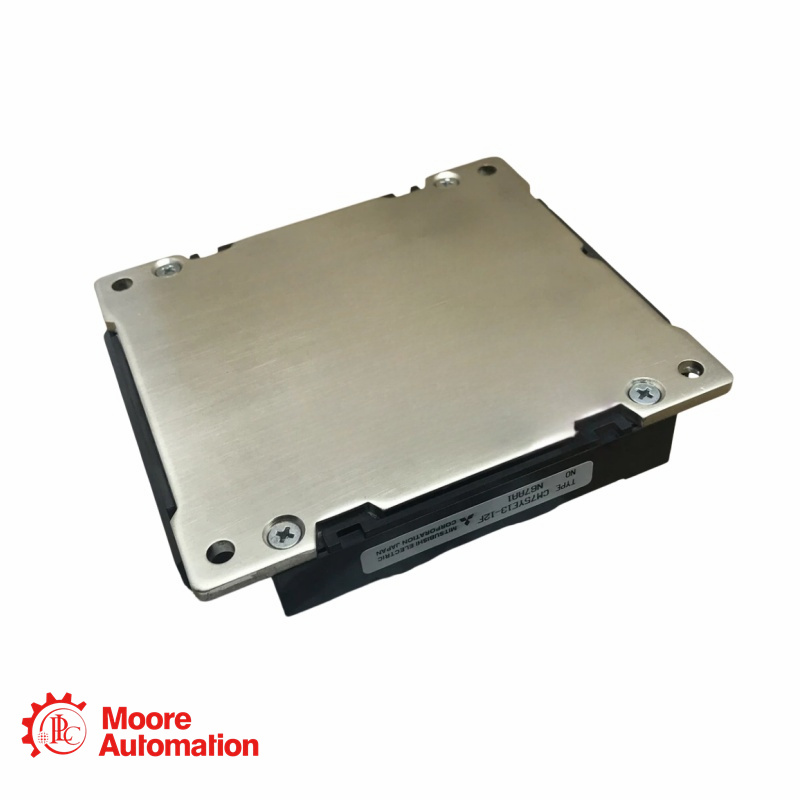

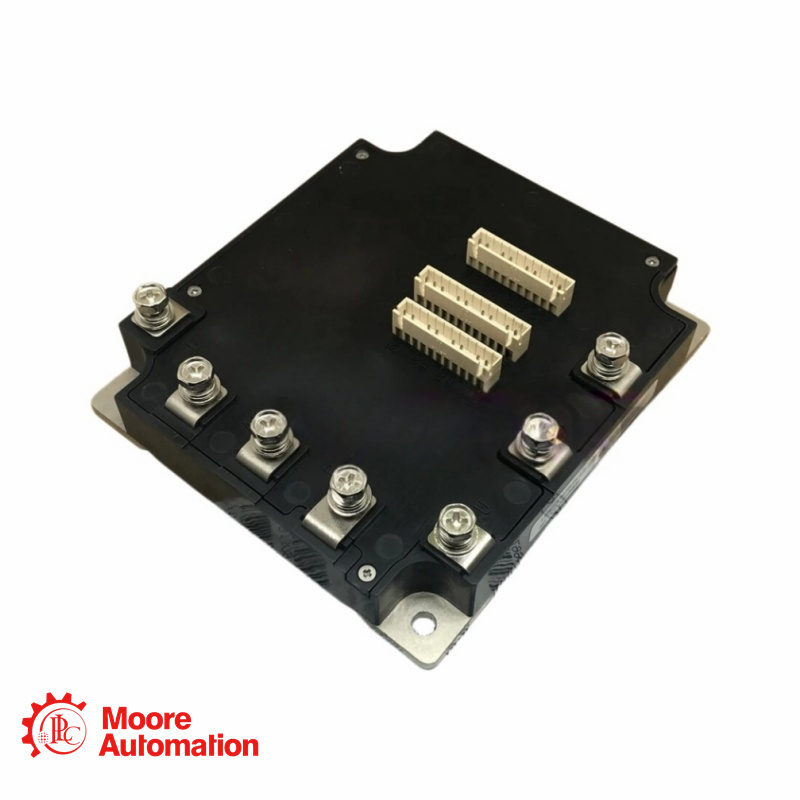

Powerex TLI-Series 75 A, 600 V three-level inverter IGBT power module
|
Pls Click Here To Get In Touch: |
|
Sales Manager: Nina Lan Phone/Whatsapp/Wechat: +8618030235312 Email: sales8@askplc.com
|
Details about product CM75YE13-12F
The Powerex CM75YE13-12F is a TLI-Series IGBT power module developed for three-level neutral-point-clamped inverter topologies. Rated at 600 V and 75 A, it provides smaller output-voltage steps, reduced ripple current, lower surge voltage, and improved output waveform quality. Its integrated inverter, clamp-diode, and braking sections support efficient power conversion in motor drives, solar inverters, UPS equipment, and systems using long motor cables where reflected-voltage surges must be controlled.
Specification of CM75YE13-12F
Brand
Powerex
Maximum Power Dissipation
270 W, inverter section
Manufacturer
Powerex, Inc.
Junction Temperature
-40°C to +150°C
Model
CM75YE13-12F
Collector-Emitter Voltage
600 V
Product Series
TLI-Series
Rated Collector Current
75 A DC; 150 A peak
Product Type
IGBT Power Module
Isolation Voltage
2,500 Vrms for 1 minute
Gate-Emitter Voltage
±20 V
Storage Temperature
-40°C to +125°C
Typical Saturation Voltage
1.6 V at 75 A and 25°C
Main Terminal Type
M5 metric
Brake Section Rating
1,200 V, 25 A DC
Typical Gate Charge
465 nC
|
FAQ |
|
Q1: What is CM75YE13-12F used for? |
|
It switches and controls high-power DC energy in three-level inverter circuits. |
|
Q2: Is it a complete inverter? |
|
No. It is a semiconductor power module that requires gate drivers, control electronics, cooling, and protection circuits. |
|
Q3: Can it replace a standard two-level IGBT module? |
|
Not directly. The three-level topology, terminal arrangement, voltage rating, gate drive, and cooling design must match. |
Product Applications
Oil and Gas Variable-Frequency Drives
Natural Gas Compressor Inverters
Petrochemical Pump and Fan Systems
Chemical Process Motor Control
Industrial Physics Test Power Supplies
|
