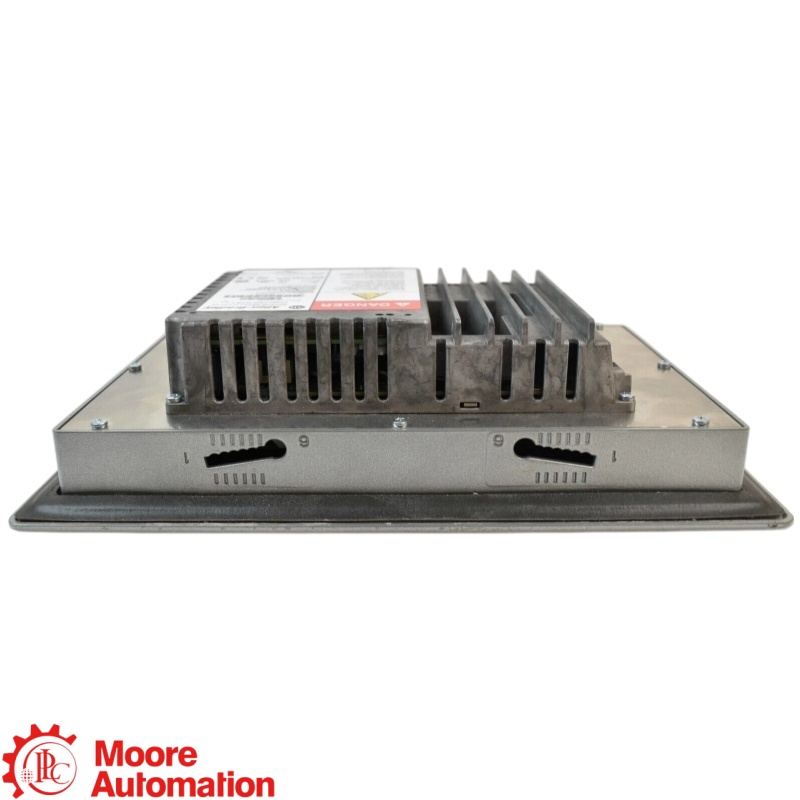

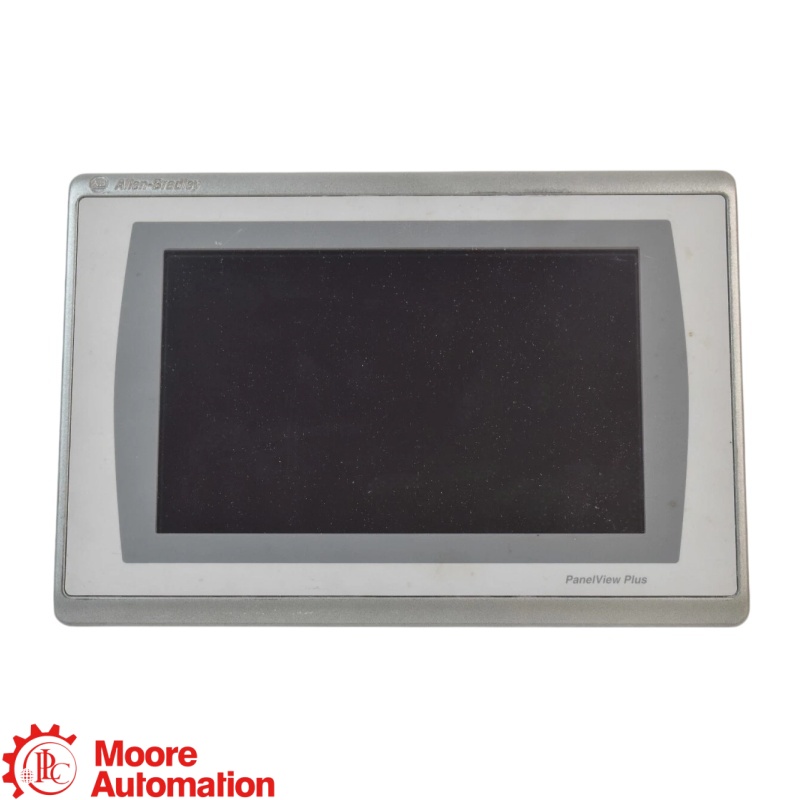

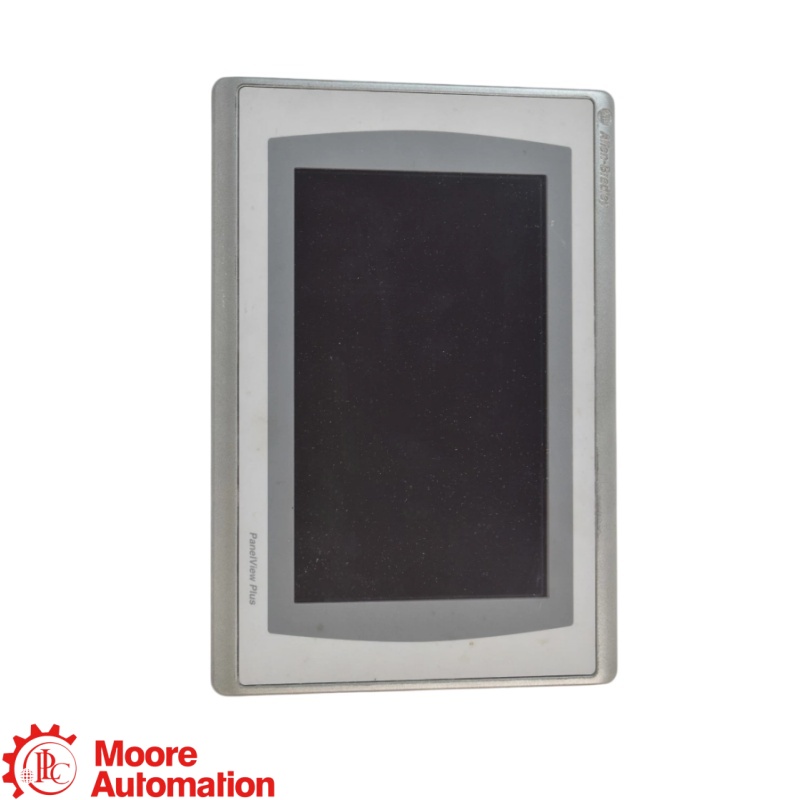

PLC 2715P-T10CD 10.4-inch Operator Terminal
PLC 2715P-T10CD 10.4-inch Operator Terminal
PLC 2715P-T10CD 10.4-inch Operator Terminal

PLC 2715P-T10CD 10.4-inch Operator Terminal

10.4-INCH OPERATOR TERMINAL

2715P-T10CD

The 2715P-T10CD is a 10.4-inch, 4:3 resistive-touch operator terminal with 800 × 600 SVGA resolution, two 10/100Base-T Ethernet ports and 24 V DC input.

CATALOG2715P-T10CD
RESOLUTION800 × 600 SVGA
ETHERNET2 × 10/100Base-T
POWER24 V DC
BRANDPLC
PRODUCT TYPE10.4-inch Operator Terminal
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry

  • ยี่ห้อ :

    PLC

  • ส่วนจำนวน :

    2715P-T10CD

  • คำอธิบาย :

    10.4-inch Operator Terminal
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● OFFICIAL OPERATOR TERMINAL DATA
10.4-INCH OPERATOR TERMINAL

2715P-T10CD

10.4-INCH OPERATOR TERMINAL

2715P FAMILY · 10.4-INCH SVGA TOUCH · DUAL ETHERNET · 24 V DC

PRODUCT ROLE
2715P-T10CD is a 10.4-inch, 4:3 resistive-touch operator terminal with 800 × 600 SVGA resolution, two 10/100Base-T Ethernet ports and 24 V DC input.
INSTALLATION CHECK
Confirm the complete 2715P-T10CD label, installed chassis or panel, hardware revision, wiring, power and saved application before installation or replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 2715P-T10CD reference is structured

2715P
Bulletin identifier2715P product family
T10CD
Exact module identifierKeep the complete suffix and sequence when ordering
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

2715P-T10CD TECHNICAL DATA ↗
2715P-T10CD

Engineering data at a glance

Click “+” to expand the model-specific information.

DISPLAY10.4-inch touch
RESOLUTION800 × 600 SVGA
ETHERNET2 × 10/100Base-T
POWER24 V DC
Verified configuration

Official manufacturer documentation identifies 2715P-T10CD is a 10.4-inch, 4:3 resistive-touch operator terminal with 800 × 600 SVGA resolution, two 10/100Base-T Ethernet ports and 24 V DC input.

General Information −
BrandPLC
Model2715P-T10CD
Product type10.4-inch operator terminal
Display10.4-inch 4:3 resistive touch
Resolution800 × 600 SVGA
Supply24 V DC; operating range 18–30 V DC
EthernetTwo 10/100Base-T ports
Front protectionIP66 and NEMA 4X/12/13 when properly mounted
Mounting cutout224 × 269 mm
Front dimensions297 × 252 mm
CoatingNon-conformal-coated version
Display and Electrical Specifications ＋
Display size10.4 in.
Viewing area211 x 158 mm (8.3 x 6.2 in.)
Display resolution800 x 600 SVGA, 4:3
Color depth24-bit (16.7 million colors)
Memory1 GB RAM; 1 GB nonvolatile project storage
Input voltage24V DC nominal (18…30V DC)
Power consumption25 W maximum; 15 W typical
Weight, approximate2.28 kg (5.03 lb)
Environmental Specifications ＋
Operating temperature0…55 °C (32…131 °F)
Nonoperating temperature-25…+70 °C (-13…+158 °F)
Relative humidity5…95% without condensation
Operating altitudeSea level to 2000 m (6562 ft)
Vibration0.012 in. peak-to-peak at 10…57 Hz; 2 g peak at 57…500 Hz
Operating shock15 g at 11 ms
Nonoperating shock30 g at 11 ms
Enclosure ratingsNEMA/UL Type 1, 4X, 12, 13; IP66
Source: official 2715P technical data publication 2715P-TD001 and the exact manufacturer product page.
FAQ

Questions Buyers Ask Most

What is 2715P-T10CD used for?＋

2715P-T10CD is a 10.4-inch industrial operator terminal used to display and control a configured machine or process application through compatible controller and network connections.

What display and resolution does 2715P-T10CD provide?＋

2715P-T10CD provides a 10.4-inch 4:3 resistive-touch display with 800 × 600 SVGA resolution. The saved application must be designed for that screen format.

Which power supply is required for 2715P-T10CD?＋

2715P-T10CD requires a nominal 24 V DC supply with an official operating range of 18–30 V DC, and the branch protection, grounding and conductor sizing must match the installation.

Which panel cutout is required for 2715P-T10CD ?＋

2715P-T10CD requires a nominal 224 × 269 mm panel cutout, and the front sealing surface and enclosure must support the specified mounting and environmental rating.

Which network connections are available on 2715P-T10CD?＋

2715P-T10CD provides two 10/100Base-T Ethernet ports. IP settings, device names, controller communication, switch configuration and the saved application must match.

Can a 15-inch terminal directly replace 2715P-T10CD?＋

2715P-T10CD must not be replaced by a 15-inch terminal without checking the panel cutout, display resolution, application layout, power, network and enclosure clearances.

What information should be supplied when ordering 2715P-T10CD?＋

For 2715P-T10CD, provide the complete catalog number, screen size, power and network details, application-backup status, mounting cutout, quantity and delivery destination.

CONTACT PRODUCT SPECIALIST

Check 2715P-T10CD configuration with Frida

Share the exact model, installed hardware, wiring, application record and quantity for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 2715P-T10CD

Official technical data for 2715P terminals documents the 10.4-inch resistive-touch display, SVGA resolution, dual Ethernet ports, 24 V DC supply, enclosure ratings and mounting dimensions. 2715P-T10CD

2715P-T10CD Technical Data

Official technical data for 2715P terminals documents the 10.4-inch resistive-touch display, SVGA resolution, dual Ethernet ports, 24 V DC supply, enclosure ratings and mounting dimensions.

OPEN OFFICIAL TECHNICAL DATA ↗

Contact to Get Support

Send the exact model, quantity, complete label, installed system details and your technical or purchasing question.

Source: official 2715P technical data publication 2715P-TD001 and the exact manufacturer product page.

MODEL IDENTIFICATION

How the 2715P-T10CD reference should be verified

2715P-T10CD is the complete product reference. Do not install or substitute the product until the exact model, revision, wiring and system compatibility are verified.

PLATFORM / TYPE2715P family · 10.4-inch operator terminal
→
COMPLETE MODEL2715P-T10CD
→
CONFIGURATION / SYSTEM10.4-inch SVGA resistive touch · 24 V DC
Installed System

Record the panel cutout, enclosure rating, controller connection, network topology and saved application.

Signal Evidence

Record both Ethernet ports, IP settings, connected controller, USB use and peripheral connections.

Power Evidence

Confirm the 18–30 V DC supply, branch protection, grounding and conductor size.

Replacement Limit

Do not install or substitute the product until the exact model, revision, wiring and system compatibility are verified.

VERIFICATION EVIDENCE

Evidence needed to verify 2715P-T10CD correctly

Product Identity

Match 2715P-T10CD to the complete product label and installed-system record.

Installation Context

Document the host system, slot or mounting position, connected hardware, wiring and saved application.

PRODUCT REFERENCE2715P-T10CDComplete 10.4-inch operator terminal reference
Configuration Evidence

Use the product label, official documentation when available, installation photographs and system records to verify identity.

Replacement Check

Match the complete catalog number, hardware revision, wiring, power and application before replacement.
