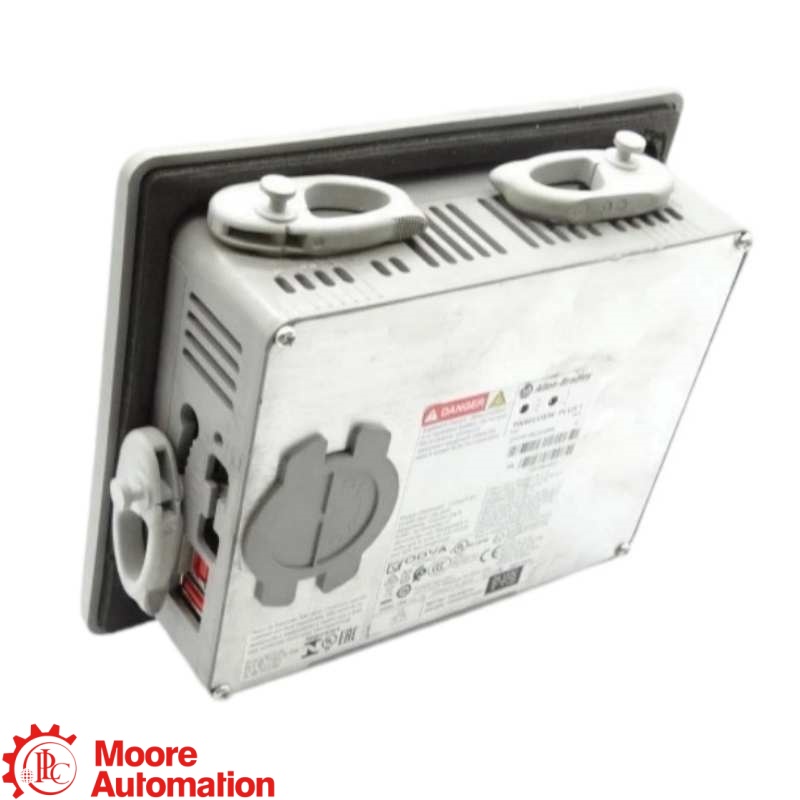

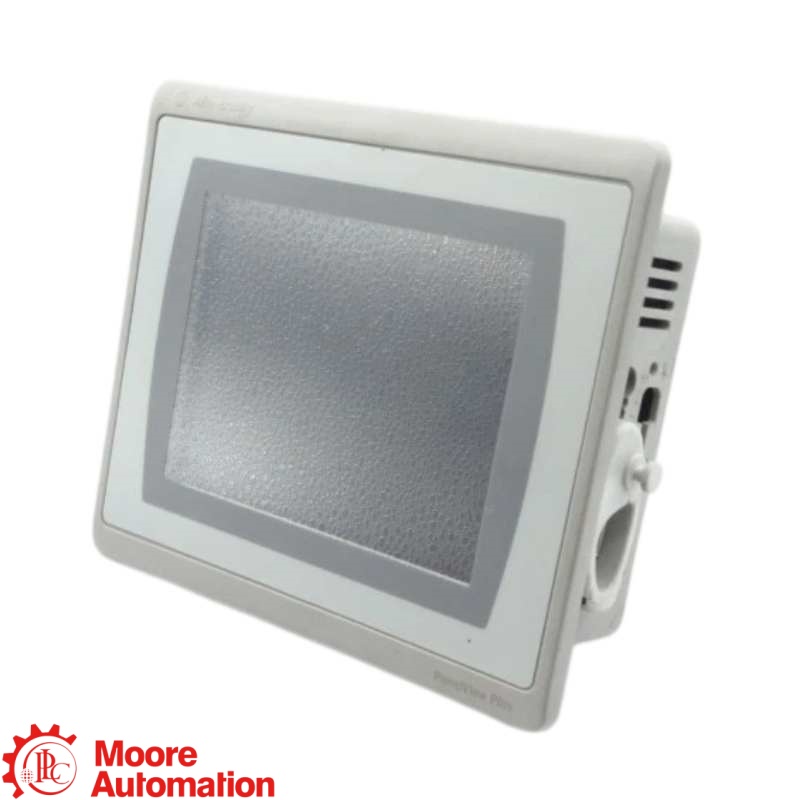

PLC 2711P-T6C21D8S 5.7-inch Standard Color Touch Terminal
PLC 2711P-T6C21D8S 5.7-inch Standard Color Touch Terminal
PLC 2711P-T6C21D8S 5.7-inch Standard Color Touch Terminal

PLC 2711P-T6C21D8S 5.7-inch Standard Color Touch Terminal

PLC STANDARD TOUCH TERMINAL

2711P-T6C21D8S

The 2711P-T6C21D8S is a 5.7 in. color touch terminal with 640 × 480 VGA graphics, one 10/100base-t ethernet port, 24V DC input and standard HMI functionality.

CATALOG2711P-T6C21D8S
DISPLAY SIZE5.7 in.
RESOLUTION640 × 480 VGA
NETWORKSingle Ethernet
BRANDPLC
PRODUCT TYPEPLC Standard Touch Terminal
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry

  • ยี่ห้อ :

    PLC

  • ส่วนจำนวน :

    2711P-T6C21D8S

  • คำอธิบาย :

    Standard Color Touch Terminal
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● VERIFIED STANDARD TOUCH TERMINAL
PLC STANDARD TOUCH TERMINAL

2711P-T6C21D8S

TOUCH TERMINAL

5.7 in. COLOR TFT · 640 × 480 VGA · ONE 10/100BASE-T ETHERNET PORT

PRODUCT ROLE
2711P-T6C21D8S is a standard color-touch touch terminal that stores the machine and process information in a compatible PLC panel installation.
INSTALLATION CHECK
Confirm the complete 2711P-T6C21D8S catalog number, display size, Ethernet-port code, 24V DC supply, panel cutout and application backup before installation or replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 2711P-T6C21D8S reference is structured

2711P
Family segment2711P terminal family
T6C21D8S
Configuration segmentDisplay, network, power, operating-system and standard-model segment
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

2711P-T6C21D8S DATASHEET ↗
2711P-T6C21D8S

Engineering data at a glance

Click “+” to expand the verified information.

Display size5.7 in.
Display resolution640 × 480 VGA
Operator interface roleStandard HMI touch terminal
Ethernet portsOne 10/100Base-T Ethernet port
Verified configuration

Official technical data 2711P-TD008 lists 2711P-T6C21D8S with a 5.7 in. color TFT display, 640 × 480 VGA graphics, one 10/100base-t ethernet port and 24V DC input.

General Information −
BrandPLC
Model2711P-T6C21D8S
Product typePLC standard color touch terminal
Display size5.7 in.
Display resolution640 × 480 VGA
Operator interface roleMachine and process operator interface
Network topologyStar or end-node linear topology
Official technical data2711P-TD008
Electrical input24V DC nominal (18…30V DC); 35 W max
Mechanical dataApprox. 0.70 kg (1.53 lb); dimensions 152 × 176 × 56.5 mm; panel cutout 123 × 156 mm
Display and Electrical Specifications ＋
Display size5.7 in.
Viewing area115 x 86 mm
Display resolution640 x 480 VGA, 18-bit color graphics
Brightness, typical300 nits
Input voltage24V DC nominal (18…30V DC)
Power consumption, maximum35 W (1.46 A at 24V DC)
Ethernet portOne 10/100Base-T port with IEEE 1588 support
Weight, approximate0.70 kg (1.53 lb)
Environmental Specifications ＋
Operating temperature0…55 °C (32…131 °F)
Nonoperating temperature-25…+70 °C (-13…+158 °F)
Relative humidity5…95% without condensation
Heat dissipation15 W = 51 BTU
Operating altitude2000 m
Vibration0.012 in. peak-to-peak at 10…57 Hz; 2 g peak at 57…500 Hz
Operating shock15 g at 11 ms
Nonoperating shock30 g at 11 ms
Source: official technical data 2711P-TD008, which lists 2711P-T6C21D8S and its verified display, memory, network, electrical and mechanical specifications.
FAQ

Questions Buyers Ask Most

What is 2711P-T6C21D8S used for?＋

2711P-T6C21D8S is a standard color touch terminal used to monitor and control connected industrial devices through an HMI application.

What display does 2711P-T6C21D8S use?＋

2711P-T6C21D8S uses a 5.7 in. color TFT LCD touch display with 640 × 480 VGA graphics and a 4:3 aspect ratio.

How many Ethernet ports does 2711P-T6C21D8S provide?＋

2711P-T6C21D8S provides one 10/100base-t ethernet port. Its documented network topology is star or end-node linear topology.

What power supply does 2711P-T6C21D8S require?＋

2711P-T6C21D8S requires 24V DC nominal input with an 18…30V DC operating range. Maximum documented power consumption is 35 W max.

What memory is available in 2711P-T6C21D8S?＋

2711P-T6C21D8S provides 512 MB RAM, 512 MB storage and 80 MB of nonvolatile application storage, plus one SD card slot.

What must be checked before installing 2711P-T6C21D8S?＋

2711P-T6C21D8S requires confirmation of the 123 × 156 mm panel cutout, 24V DC supply, Ethernet topology, complete catalog number and HMI application backup before installation.

What information should be supplied when ordering 2711P-T6C21D8S?＋

For 2711P-T6C21D8S, provide the exact catalog number, display and network requirements, application version, required quantity, installation location and delivery destination.

CONTACT PRODUCT SPECIALIST

Check 2711P-T6C21D8S configuration with Frida

Share the exact model, display size, Ethernet topology, application-backup status and quantity for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Official Datasheet for 2711P-T6C21D8S

Official technical data publication 2711P-TD008 identifies 2711P-T6C21D8S as a standard color touch terminal and provides verified display, memory, network, electrical and mechanical specifications.

Official technical data

The official 2711P-TD008 technical data lists 2711P-T6C21D8S with a 5.7 in. color TFT touch display, 640 × 480 VGA graphics, one 10/100base-t ethernet port, 24V DC input and 35 W max power consumption.

OFFICIAL DATASHEET

Contact to Get Support

Send the exact model, quantity, display size, Ethernet topology, 24V DC supply and application requirement.

Technical statements on this page are based on official technical data publication 2711P-TD008 for 2711P-T6C21D8S.

MODEL IDENTIFICATION

How the 2711P-T6C21D8S reference should be verified

2711P-T6C21D8S is the complete standard touch-terminal catalog number. Match its display size, Ethernet-port code, 24V DC supply, panel cutout and HMI application.

PLATFORM / TYPEPLC family · standard color touch terminal
→
COMPLETE MODEL2711P-T6C21D8S
→
CONFIGURATION / SYSTEMMatching display, Ethernet topology and panel cutout
Installed System

Record the complete terminal catalog number, display size, Ethernet topology and HMI application backup.

Signal Evidence

Record the 640 × 480 VGA display requirement, one 10/100base-t ethernet port and required application version.

Power Evidence

Back up the HMI application and isolate the 24V DC supply before terminal work.

Replacement Limit

Do not install or replace the terminal until the panel cutout, power supply, Ethernet topology and complete catalog number are verified.

VERIFICATION EVIDENCE

Evidence needed to verify 2711P-T6C21D8S correctly

Product Identity

Match 2711P-T6C21D8S to the complete terminal label, panel cutout and installed network record.

Installation Context

Document the 5.7 in. display, 640 × 480 VGA resolution, Ethernet ports, 24V DC supply and application backup.

PRODUCT REFERENCE2711P-T6C21D8SComplete standard touch-terminal reference
Configuration Evidence

Use the terminal label, official technical data 2711P-TD008, panel dimensions and network record to verify identity and configuration.

Replacement Check

Match the display size, panel cutout, Ethernet topology, application version and backup procedure before replacement.
