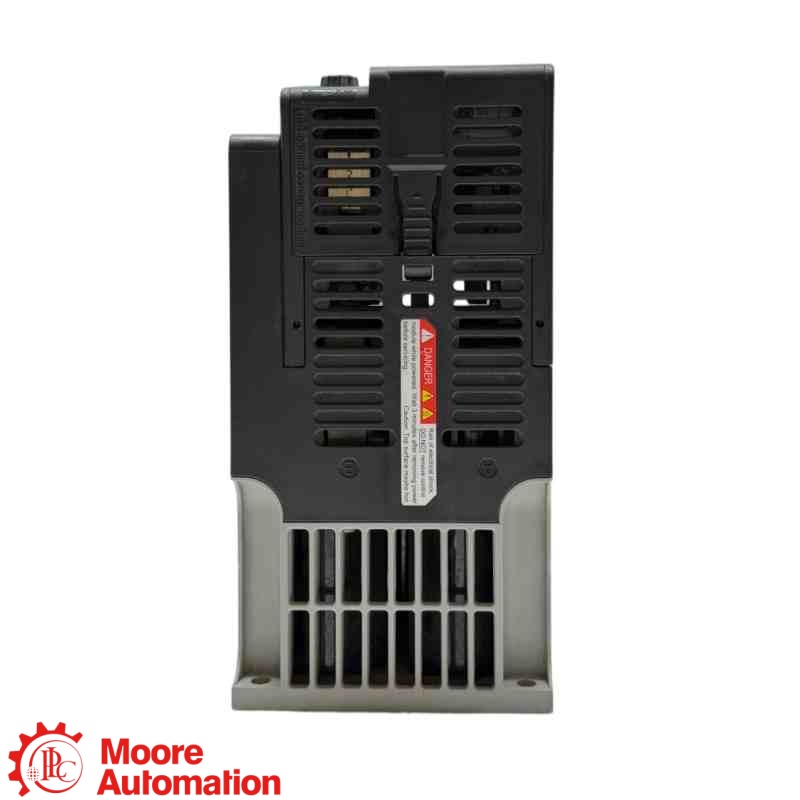

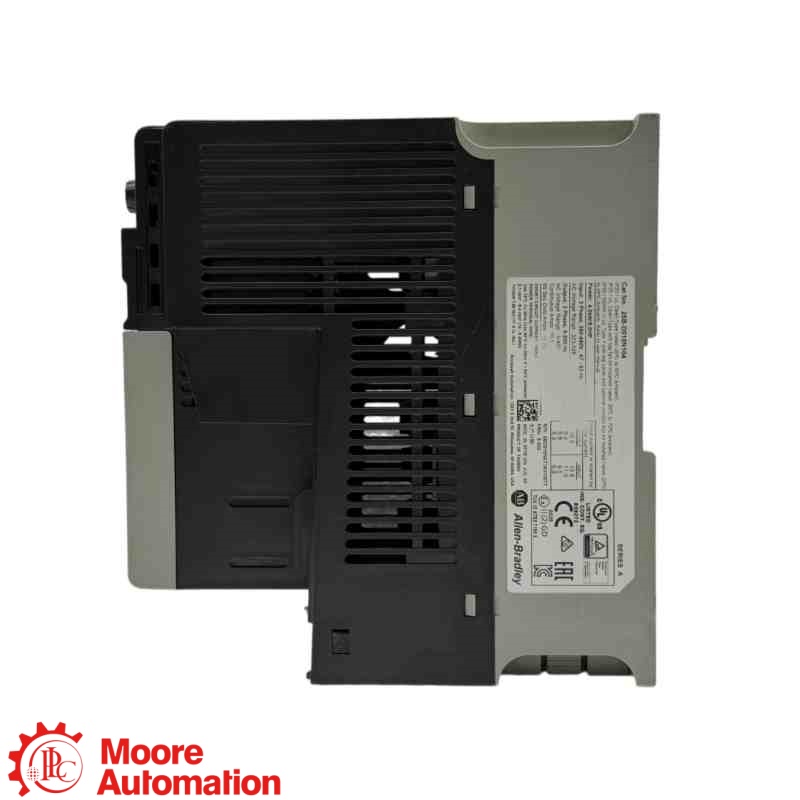

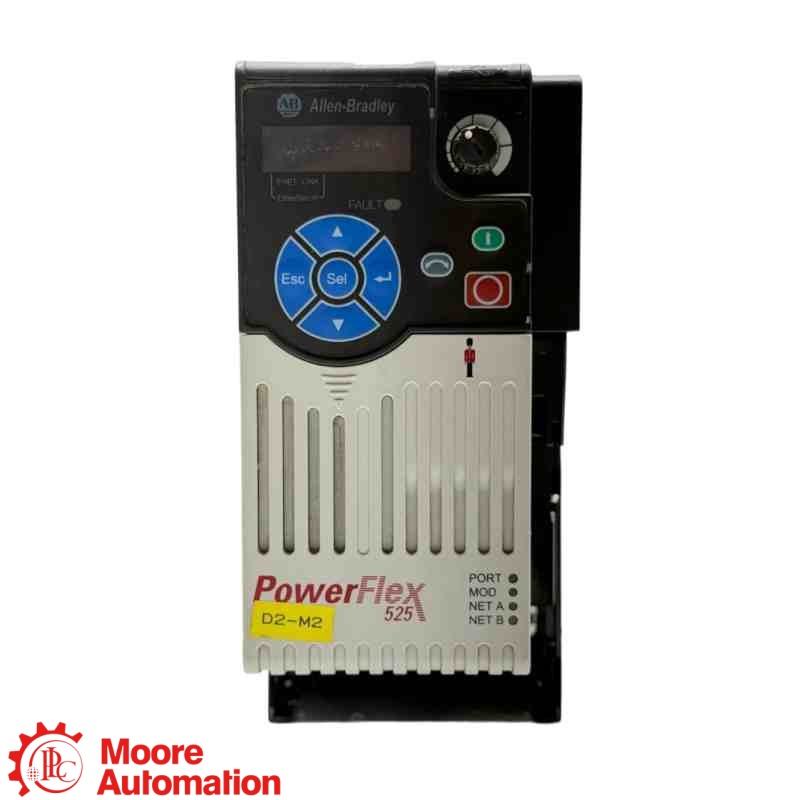

The 25B-D043N104 is a PowerFlex 525 AC drive for 380...480 V AC three-phase input, rated 43.0 A with 30 HP / 22.0 kW normal-duty output.
ยี่ห้อ :
PLCส่วนจำนวน :
25B-D043N104น้ำหนัก :
12.9 kgมิติ :
300 × 185 × 279 mmประเทศต้นกำเนิด :
Multiple; verify from the exact product labelรหัส HS :
PowerFlex 525 AC Driveคำอธิบาย :
The 25B-D043N104 is a PowerFlex 525 AC Drive for 380...480 V AC, 3 phase input, rated 43.0 A with 30 HP / 22.0 kW motor output.Click “+” to expand more specifications.
Source: Official publication 520-TD001 and the exact official product cutsheet support 25B-D043N104 technical specifications. Verify the full catalog number, 380...480 V AC voltage class, output current, duty rating, frame, enclosure, interface module and EMC filter status before replacement.
25B-D043N104 is a PowerFlex 525 AC drive with embedded EtherNet/IP and safety for 380...480 V AC three-phase input.
25B-D043N104 has a rated output current of 43.0 A; verify the complete catalog number and motor full-load current before replacement.
25B-D043N104 is rated 30 HP / 22.0 kW for normal-duty operation according to official technical data.
25B-D043N104 is rated 30 HP / 22.0 kW for heavy-duty operation according to official technical data.
25B-D043N104 uses an IP20 NEMA/Open Type enclosure in Frame E, measuring 300 × 185 × 279 mm with an approximate shipping weight of 12.9 kg.
25B-D043N104 specifies a standard interface, no EMC filter, embedded EtherNet/IP communication and integrated safety.
25B-D043N104 requires verification of the exact catalog number, 380...480 V supply, 43.0 A rating, duty rating, Frame E, IP20 open enclosure, no-filter configuration and installed motor system.
Official manufacturer-reference information for the 25B-D043N104 PowerFlex 525 AC drive.
Official publication 520-TD001 provides exact model ratings and dimensions for 25B-D043N104.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publication 520-TD001 and the exact product cutsheet for 25B-D043N104. No third-party product sources were used.
25B identifies the PowerFlex 525 drive family; D identifies the 380...480 V AC three-phase voltage class; 043 identifies the 43.0 A rated output-current code; and N104 identifies the IP20 NEMA/Open Type, standard interface, no EMC filter.
PowerFlex 525 AC drive.
380...480 V AC, three-phase input.
Rated output current 43.0 A.
IP20 NEMA/Open Type, standard interface, no EMC filter.
Match 25B-D043N104 to the complete drive nameplate and installed-system documentation.
Confirm 380...480 V AC three-phase supply, 43.0 A output and 30 HP / 22.0 kW motor output rating.
Confirm EtherNet/IP settings, the installed control wiring and the saved drive parameters.
Confirm Frame E, 300 × 185 × 279 mm dimensions, IP20 open enclosure and cooling clearances before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
