PLC 22B-D4P0N104 AC Drive
PLC 22B-D4P0N104 AC Drive
PLC 22B-D4P0N104 AC Drive

PLC 22B-D4P0N104 AC Drive

PLC AC DRIVE

22B-D4P0N104

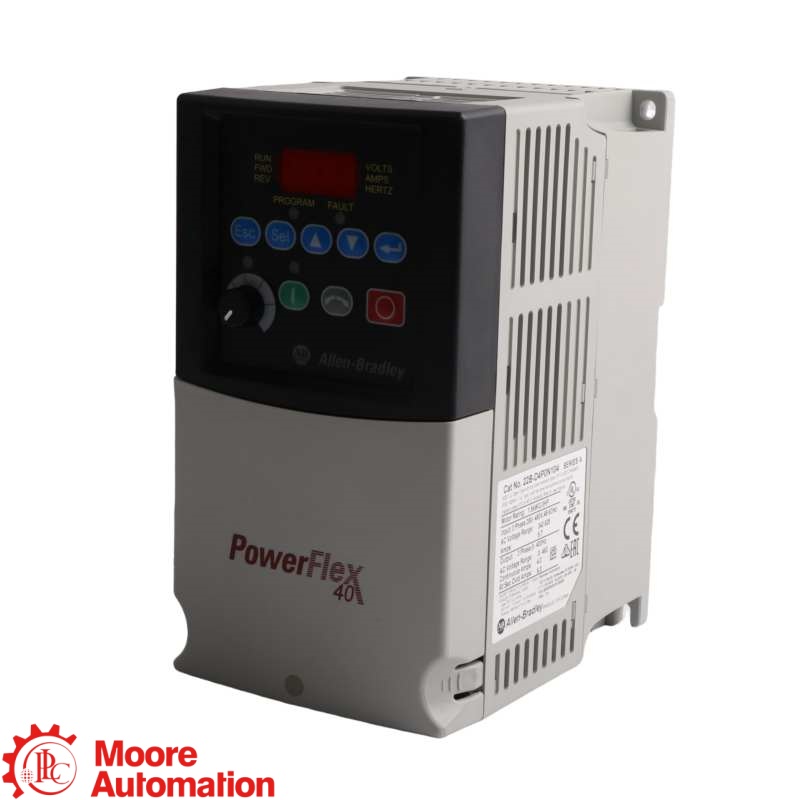

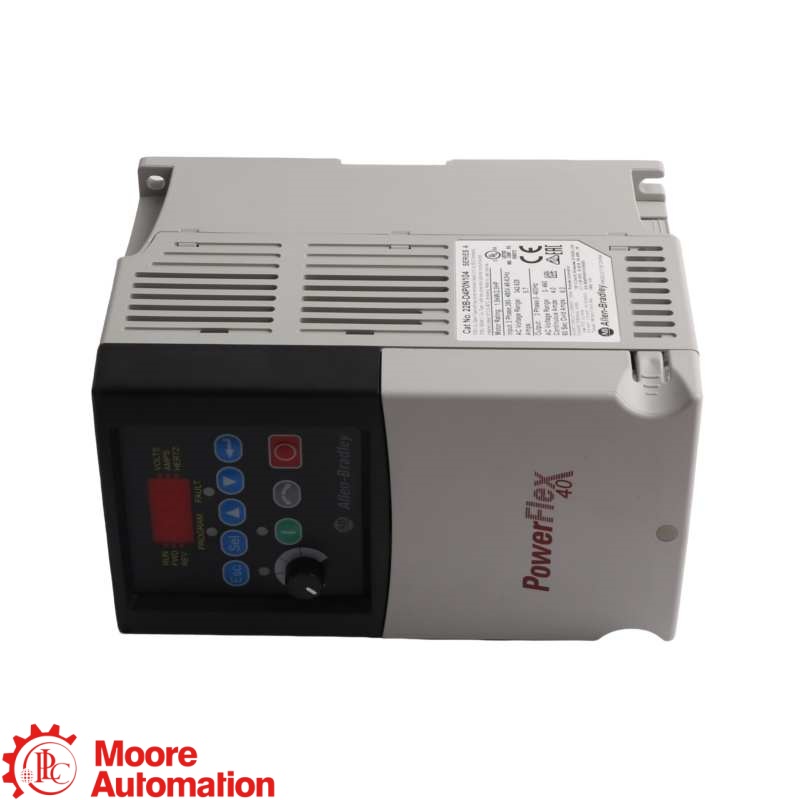

The 22B-D4P0N104 is a 1.5 kW (2 HP) AC drive rated for 380…480V AC three-phase input and 4.0 A output, with a Frame B IP20 open enclosure, fixed keypad, integral RS-485 and brake IGBT.

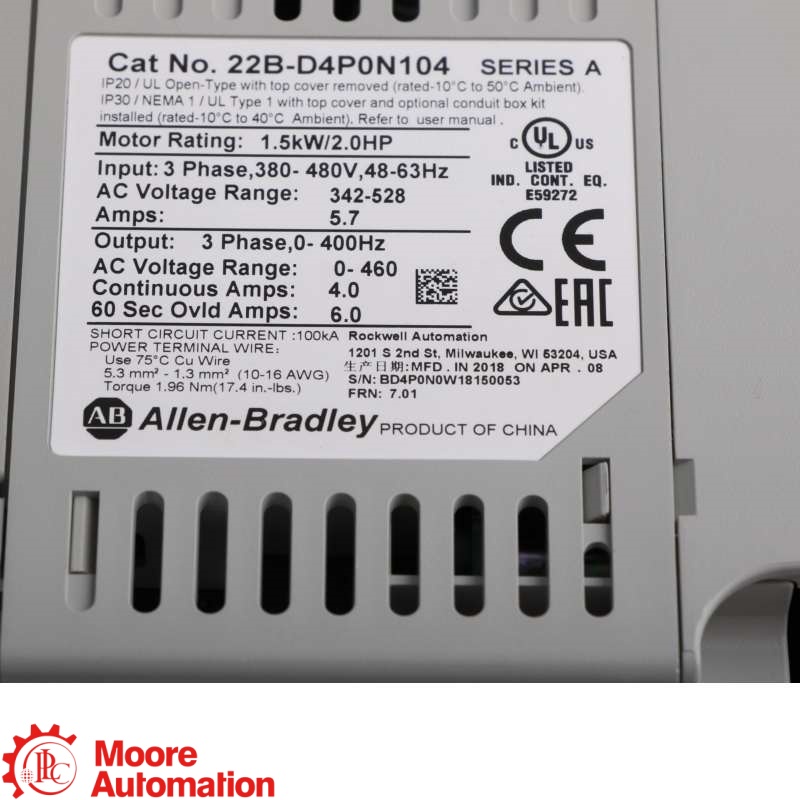

CATALOG22B-D4P0N104
RATED POWER1.5 kW (2 HP)
OUTPUT CURRENT4.0 A
INPUT380…480V AC, 3PH
BRANDPLC
PRODUCT TYPEPLC AC Drive
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry

  • ยี่ห้อ :

    PLC

  • ส่วนจำนวน :

    22B-D4P0N104

  • คำอธิบาย :

    AC Drive
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● VERIFIED AC DRIVE
PLC AC DRIVE

22B-D4P0N104

AC DRIVE

1.5 kW (2 HP) · 4.0 A OUTPUT · 380…480V AC THREE-PHASE INPUT

PRODUCT ROLE
22B-D4P0N104 is a 1.5 kW (2 HP) AC drive that controls a compatible three-phase motor from a 380…480V AC supply.
INSTALLATION CHECK
Confirm the complete 22B-D4P0N104 catalog number, supply voltage, motor rating, enclosure, grounding, wiring, brake requirements and parameter backup before installation or replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 22B-D4P0N104 catalog number is structured

22B
DrivePowerFlex 40
D
Voltage rating480 V AC · 3-phase
4P0
Output rating4.0 A · 1.5 kW (2 HP)
N
EnclosurePanel Mount · IP20 · NEMA/UL Type Open
1
HIMFixed keypad
0
Emission classNot filtered
4
Type / brake IGBTStandard · with brake IGBT
Source: PowerFlex 40 Adjustable Frequency AC Drive User Manual, publication 22B-UM001J-EN-E.
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

22B-D4P0N104 DATASHEET ↗
22B-D4P0N104

Engineering data at a glance

Click “+” to expand the verified information.

Rated power1.5 kW (2 HP)
Output current4.0 A
Input supply380…480V AC, three-phase
EnclosureFrame B · Panel Mount IP20 · NEMA/UL Type Open
Verified configuration

Official technical data 22-TD001 lists 22B-D4P0N104 with 1.5 kW (2 HP), 4.0 A output, 380…480V AC three-phase input and Frame B enclosure.

General Information −
BrandPLC
Model22B-D4P0N104
Product typePLC AC drive
Rated power1.5 kW (2 HP)
Output current4.0 A
Input supply380…480V AC, three-phase
EnclosureFrame B; Panel Mount IP20; NEMA/UL Type Open
Official technical data22-TD001
Interface / communicationFixed keypad; integral RS-485
Installed optionsNot filtered; brake IGBT included
Official Documentation ＋
22-TD001 technical data22-TD001
Exact catalog matchExact catalog number listed
Required confirmationComplete catalog number, 380…480V AC supply, 4.0 A motor rating, enclosure, brake requirements and parameter backup
Ordering Check ＋
Installation compatibilityUse 22B-D4P0N104 with a verified 380…480V AC three-phase supply and compatible motor; confirm enclosure, grounding, wiring, brake requirements and parameter backup before commissioning.
Quotation evidenceExact model, supply voltage, motor power and current, enclosure, brake requirements, parameter-backup status, quantity and delivery destination
Source: official technical data 22-TD001, which lists 22B-D4P0N104 and its verified power, current, voltage, enclosure and option configuration.
FAQ

Questions Buyers Ask Most

What is 22B-D4P0N104 used for?＋

22B-D4P0N104 is a 1.5 kW (2 HP) AC drive used to control compatible three-phase motors from a 380…480V AC supply.

What output rating does 22B-D4P0N104 provide?＋

22B-D4P0N104 is rated for 4.0 A output current and 1.5 kW (2 HP). The connected motor and application load must remain within these ratings.

What input supply does 22B-D4P0N104 require?＋

22B-D4P0N104 is listed for 380…480V AC, three-phase input, with the official selection table showing a 342…528V input range.

What enclosure does 22B-D4P0N104 use?＋

22B-D4P0N104 uses a Frame B panel-mount enclosure rated IP20, NEMA/UL Type Open. Installation must provide a suitable surrounding enclosure and clearances.

What interface and communication are available on 22B-D4P0N104?＋

22B-D4P0N104 includes a fixed keypad and integral RS-485 communication. Confirm controller compatibility, addressing and communication settings before commissioning.

What must be checked before installing 22B-D4P0N104?＋

22B-D4P0N104 requires verification of the complete catalog number, supply voltage, motor rating, enclosure, grounding, wiring, brake requirements and parameter backup before installation.

What information should be supplied when ordering 22B-D4P0N104?＋

For 22B-D4P0N104, provide the complete catalog number, input supply, motor power and current, enclosure requirement, quantity, installed application and delivery destination.

CONTACT PRODUCT SPECIALIST

Check 22B-D4P0N104 configuration with Frida

Share the exact model, supply voltage, motor rating, enclosure, brake requirement, parameter-backup status and quantity for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Official Technical Data for 22B-D4P0N104

Official technical data publication 22-TD001 identifies 22B-D4P0N104 as a 1.5 kW (2 HP), 4.0 A AC drive for 380…480V AC three-phase input.

Official technical data

The official 22-TD001 technical data lists 22B-D4P0N104 with Frame B construction, panel-mount IP20 open enclosure, fixed keypad, no filter and brake IGBT.

OFFICIAL DATASHEET

Contact to Get Support

Send the exact model, quantity, supply voltage, motor rating, enclosure, brake requirement and application details.

Technical statements on this page are based on official technical data publication 22-TD001 for 22B-D4P0N104.

MODEL IDENTIFICATION

How the 22B-D4P0N104 reference should be verified

22B-D4P0N104 is the complete AC-drive catalog number. Match its input voltage, output current, motor rating, enclosure, keypad, filter and brake configuration.

PLATFORM / TYPEPLC · AC drive
→
COMPLETE MODEL22B-D4P0N104
→
CONFIGURATION / SYSTEMMatching supply, motor rating and enclosure
Installed System

Record the complete drive catalog number, input supply, motor rating, enclosure and parameter backup.

Signal Evidence

Record the 380…480V AC three-phase supply, 4.0 A output and 1.5 kW (2 HP) motor rating.

Power Evidence

Back up drive parameters and isolate the AC supply before drive work.

Replacement Limit

Do not install or replace the drive until the supply, motor rating, enclosure, grounding, brake requirement and complete catalog number are verified.

VERIFICATION EVIDENCE

Evidence needed to verify 22B-D4P0N104 correctly

Product Identity

Match 22B-D4P0N104 to the complete drive label, supply, motor and enclosure record.

Installation Context

Document the 380…480V AC three-phase supply, 4.0 A output, 1.5 kW (2 HP) motor rating, Frame B enclosure and parameter backup.

PRODUCT REFERENCE22B-D4P0N104Complete AC-drive reference
Configuration Evidence

Use the drive label, official technical data 22-TD001, motor data and installation record to verify identity and configuration.

Replacement Check

Match the supply voltage, motor rating, enclosure, brake configuration and parameter-backup procedure before replacement.
