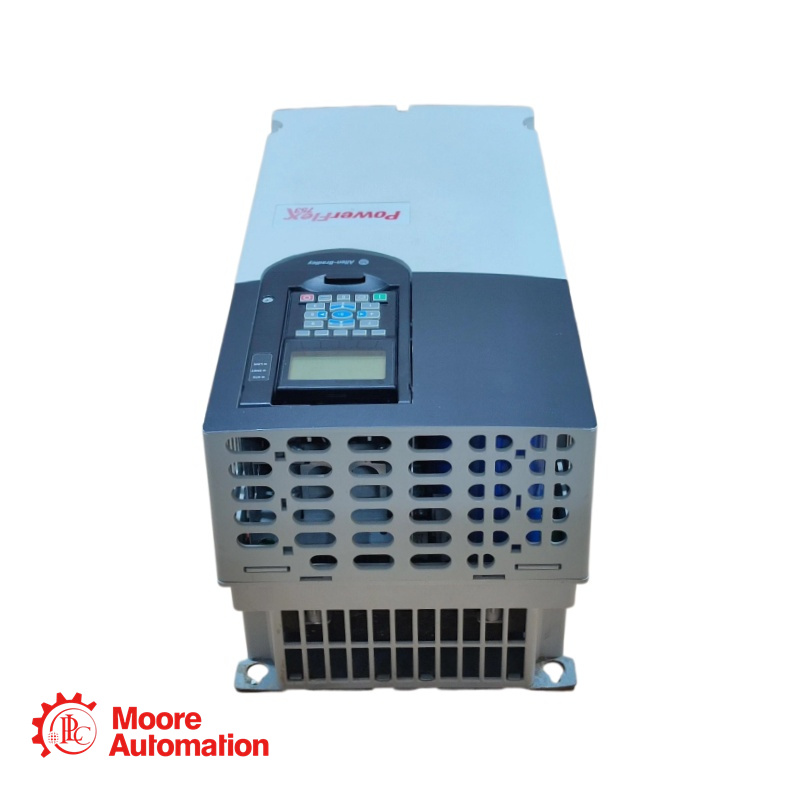

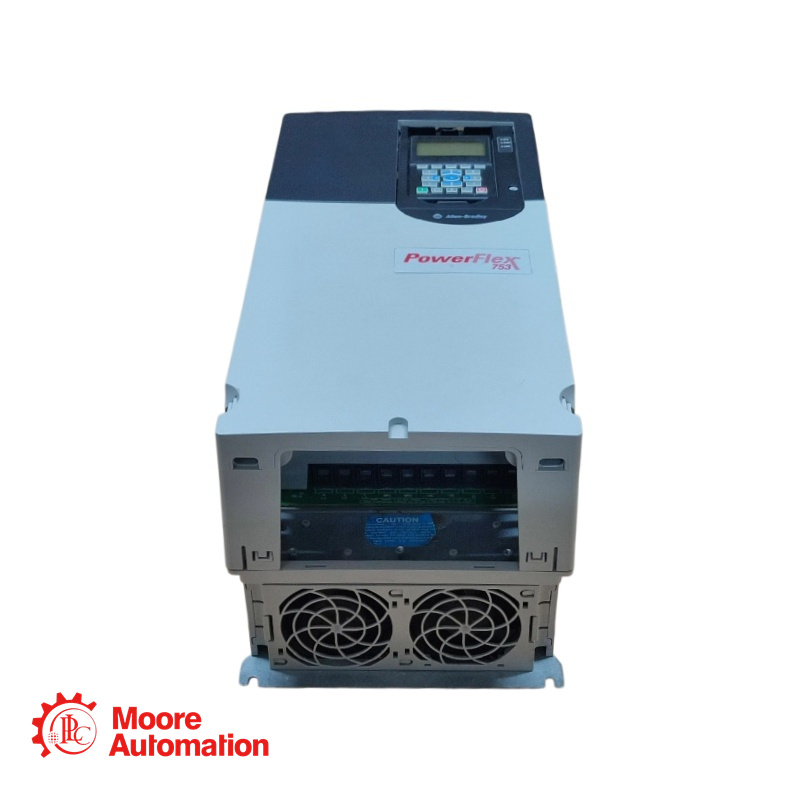

PLC 20F11NC060JA0NNNNN AC Drive

Contact Information

20F11NC060JA0NNNNN Specifications

20F11NC060JA0NNNNN Description

PF 753 AC Drive, with Embedded I/O, Standard Protection, Forced Air, AC Input with DC Terminals, Open Type, 60 Amps, 30kW ND, 22kW HD, 400 VAC, 3 PH, Frame 4, Filtered, CM jumper installed (preferred), DB Transistor, Blank (No HIM)

The 20F11NC060JA0NNNNN 753 AC Drives are a cost-effective and simple solution for general-purpose applications. Ideal for machine builders and system integrators wanting to minimise engineering costs while increasing productivity. Features built-in I/O as standard and available with a wide range of card options.

20F11NC060JA0NNNNN Alternative names

20F11NC060JA0NNNNN FAQ

What is the 20F11NC060JA0NNNNN AC Drive?

The 20F11NC060JA0NNNNN is a PowerFlex 753 AC Drive. It is a cost-effective, general-purpose drive designed for machine builders and system integrators who require a simple, reliable solution with built-in I/O and a wide range of expansion options.

What does the part number 20F11NC060JA0NNNNN signify?

The part number breaks down as follows:
20F: PowerFlex 753 Series
1: 400V AC Voltage Class
1: Open Type Enclosure (IP20/NEMA Open)
NC: AC Input with DC Terminals (with precharge)
060: 60 Amps Output Current
J: Filtered with CM Jumper Installed (preferred)
A: Dynamic Brake (DB) Transistor included
0: Standard I/O (no additional I/O options)
NNNNN: Blank (No HIM - Human Interface Module)

Does this drive have a built-in HIM?

No. The "-NNNNN" option indicates this drive comes with a blank faceplate and does not include a Human Interface Module (HIM) . A HIM can be ordered separately (e.g., 20-HIM-A3 or 20-HIM-C3) if local programming is required.

Does this drive include a dynamic braking (DB) transistor?

Yes. This model includes a built-in DB transistor , allowing connection of an external dynamic braking resistor to dissipate regenerative energy and improve deceleration performance.

What communication protocols does this drive support?

The drive features a built-in RS-485 port supporting Modbus RTU and DSI (Drive Serial Interface) protocols. For additional communication options, such as EtherNet/IP, PROFIBUS DP, DeviceNet, ControlNet, and PROFINET, optional communication modules can be installed.
