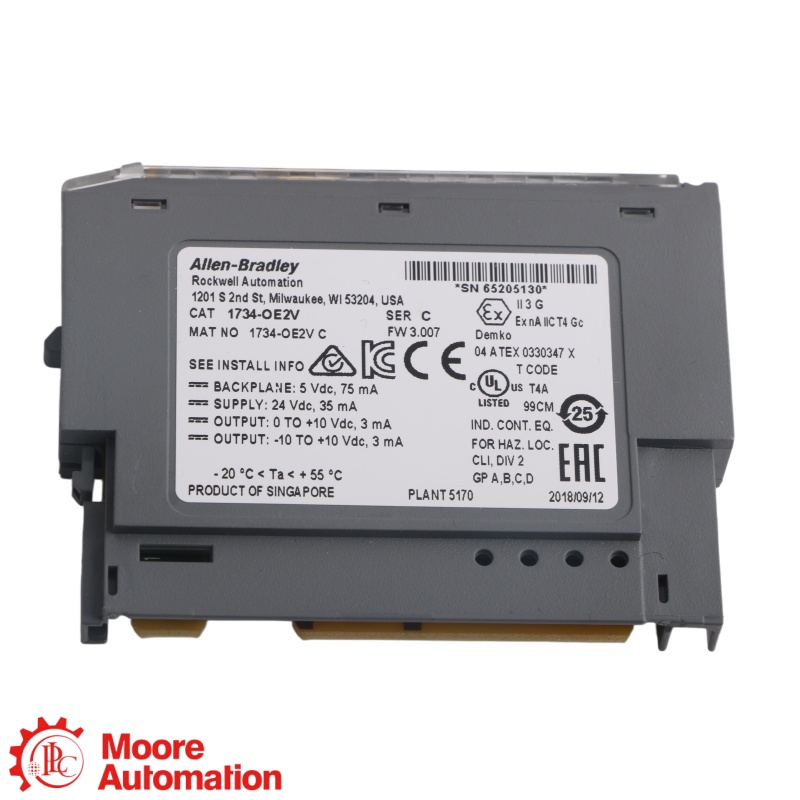

PLC 1734-OE2V 2-Channel Analog Voltage Output Module

1734 ANALOG OUTPUT MODULE

1734-OE2V

The 1734-OE2V is a distributed I/O 2-channel analog voltage output module providing single-ended, non-isolated voltage outputs with 14-bit resolution, as documented by PLC official instructions..

PRODUCT TYPEAnalog Output
CHANNELS2
TEMPERATURE−20…55 °C
RESOLUTION14 bit
MANUFACTURERPLC Product
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE

  • ประเทศต้นกำเนิด :

    USA
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SEARCH MODELS
PRODUCT INFORMATION ● distributed I/O ANALOG OUTPUT
1734 ANALOG OUTPUT MODULE

1734-OE2V

2-CHANNEL VOLTAGE OUTPUT

2 OUTPUTS · 14-BIT RESOLUTION

PRODUCT ROLE
1734-OE2V is a 2-channel analog voltage output module with single-ended, non-isolated outputs. It provides 0…10 V or ±10 V output ranges and requires an external 24 V DC supply.
ORDER CHECK
For 1734-OE2V, confirm the complete catalog number, output range, external 24 V DC supply and connected load requirements before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 1734-OE2V order number is structured

1734
Bulletin family1734 distributed I/O family
OE2
Module functionTwo analog outputs
V
Output signalVoltage-output version
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

1734 ANALOG OUTPUT MODULE ↗
1734-OE2V

Engineering data at a glance

Click “+” to expand more specifications.

OUTPUT RANGE0…10 V / ±10 V
RESOLUTION14 bit
DIMENSIONS56.6 × 12.1 × 77.5 mm
WEIGHT36 g
Official 1734-OE2V documentation values.
Configuration verification

Confirm the exact catalog number, output range, power supply and connected load before ordering 1734-OE2V.

General Information −
Catalog number1734-OE2V
Product typeTwo analog outputs
Output signal0…10 V / ±10 V
Number of terminals14 bit
MountingDIN rail within a compatible 1734 assembly
Module constructionOpen-style distributed I/O module
System roleConverts controller output data to analog voltage
Physical and Wiring ＋
Dimensions (H × W × D)56.6 × 12.1 × 77.5 mm (1.93 × 0.47 × 5.67 in.)
Approximate weight36 g (1.96 oz)
External supply24 V DC nominal
Field connectionCompatible removable terminal base
Output channels2
Output isolationNon-isolated channels
Enclosure typeNone (open-style)
Electrical and Isolation ＋
Power supply24 V DC external supply
Maximum currentFollow official load and derating limits
Signal range0…10 V or ±10 V
Resolution14 bit
Channel isolationOutputs are not isolated from each other
Installation checkVerify voltage and current against the official wiring instructions
System requirementUse only with compatible distributed I/O assemblies
Environmental ＋
Operating temperature−20…55 °C (−4…131 °F)
Storage temperature−40…85 °C (−40…185 °F)
Relative humidity5…95%, noncondensing
Vibration5 g at 10…500 Hz
Operating shock30 g
Nonoperating shock50 g
Documentation ＋
Installation instructions1734-IN002
User manual1734-UM001
Selection guide1734-SG001
Country of originUSA
Lifecycle and Compatibility ＋
Lifecycle statusConfirm current availability before ordering
Ordering checkConfirm the exact catalog number, output range, external power and connected load before replacement.
Source: official publications 1734-IN002, 1734-SG001 and the official 1734-OE2V product documentation.
FAQ

Questions Buyers Ask Most

What is 1734-OE2V used for?＋

1734-OE2V provides a one-piece spring-clamp terminal base and eight field-wiring terminations for compatible distributed I/O modules.

How many terminations does 1734-OE2V provide?＋

1734-OE2V provides eight terminations according to the official PLC product page.

What connection style does 1734-OE2V use?＋

1734-OE2V uses spring-clamp connections; PLC identifies 1734-OE2 as the corresponding screw-clamp version.

What temperature range is listed for 1734-OE2V?＋

1734-OE2V is listed for −20 to 55 °C (−4 to 131 °F).

Which official instructions cover 1734-OE2V?＋

1734-OE2V is covered by PLC publication 1734-IN002 for distributed I/O one-piece terminal bases.

What should be checked before ordering 1734-OE2V?＋

For 1734-OE2V, confirm the catalog number, output range, power supply and connected load before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
1734-OE2V

Official PLC documentation for the 1734-OE2V 2-channel analog voltage output module.

distributed I/O Analog Output Modules

PLC publication 1734-IN002 covering 2-channel analog voltage output modules, installation, wiring and safety information.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page are based on PLC publication 1734-IN002 and the official 1734-OE2V product page.

1734 ANALOG OUTPUT RELATIONSHIP

How 1734-OE2V Fits into the 1734 Analog Output Family

1734 identifies the distributed I/O platform. Within this platform, an analog output module converts controller data into field voltage signals for compatible loads. 1734-OE2V is the two-channel analog voltage output module with 14-bit resolution.

PLATFORM1734 Distributed I/OModular I/O architecture
→
MODULE FAMILY1734 Analog OutputTwo-channel voltage output
→
EXACT MODEL1734-OE2V2-channel analog voltage output module
Selection note: Match the output range, external 24 V DC supply and connected load requirements before replacement.
