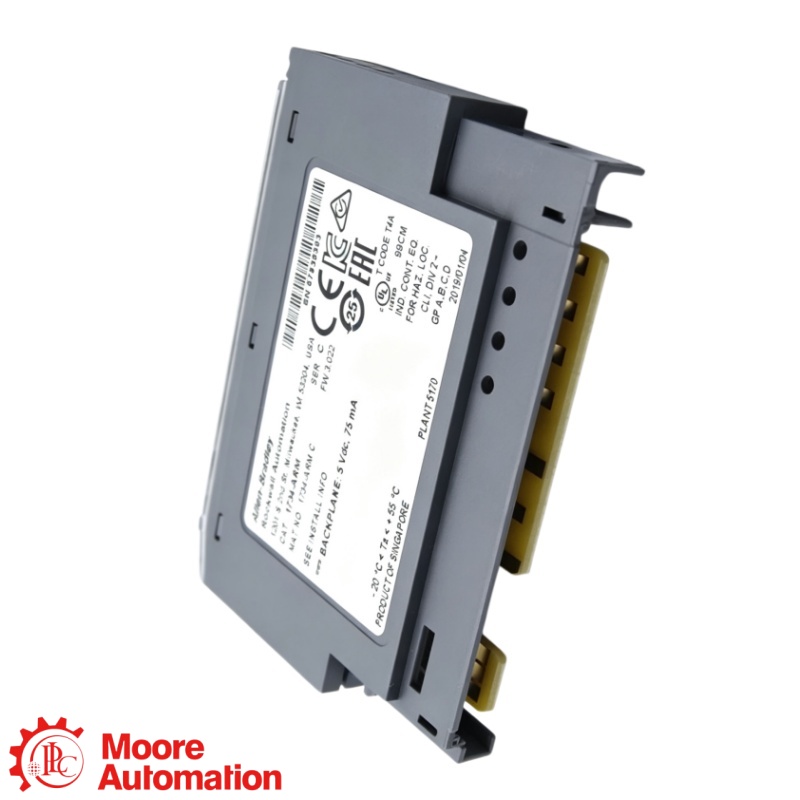

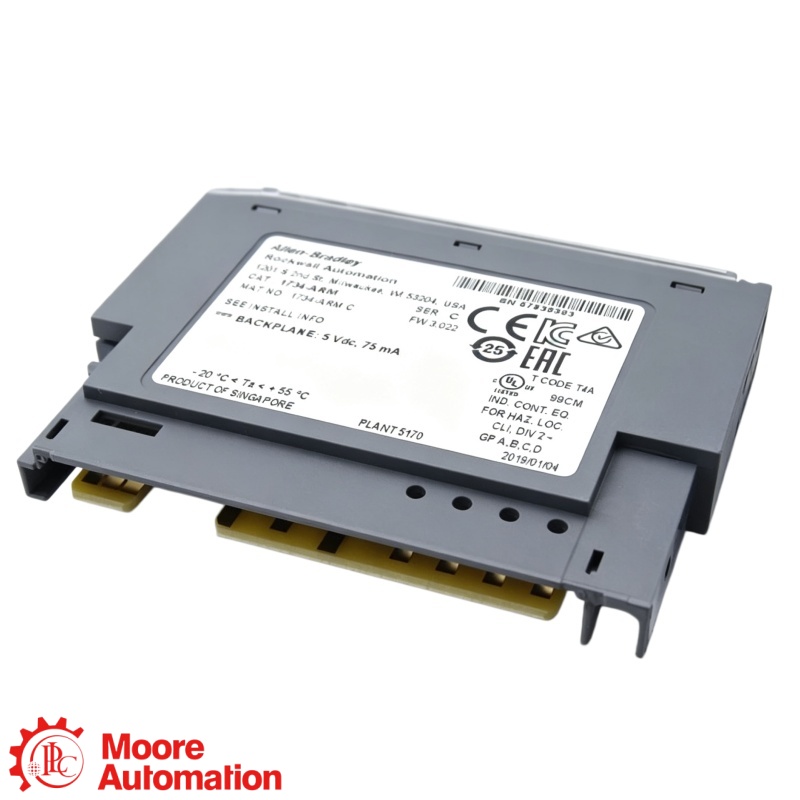

PLC 1734-ARM Address Reserve Module
PLC 1734-ARM Address Reserve Module
PLC 1734-ARM Address Reserve Module

PLC 1734-ARM Address Reserve Module

1734 ADDRESS RESERVE MODULE

1734-ARM

The 1734-ARM is a distributed I/O address reserve module that retains a node address for later insertion of a future option, as documented in PLC publication 1734-IN019.

FUNCTIONAddress Reserve
BUS CURRENT75 mA @ 5V DC
TEMPERATURE−20…55 °C
WIRINGNone Required
MANUFACTURERPLC Product
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE

  • ประเทศต้นกำเนิด :

    USA
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SEARCH MODELS
PRODUCT INFORMATION ● distributed I/O ADDRESS RESERVE
1734 ADDRESS RESERVE MODULE

1734-ARM

ADDRESS RESERVE MODULE

RESERVES ONE NODE ADDRESS

PRODUCT ROLE
1734-ARM is an address reserve module that retains a node address for later insertion of a future option. It requires no external wiring, produces one byte of I/O data and consumes no I/O data.
ORDER CHECK
For 1734-ARM, confirm the catalog number, intended slot, compatible wiring base, keyswitch position and future replacement module before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 1734-ARM order number is structured

1734
Bulletin family1734 distributed I/O family
ARM
Module codeAddress reserve module
SLOT
System roleRetains a node address
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

1734 ADDRESS RESERVE ↗
1734-ARM

Engineering data at a glance

Click “+” to expand more specifications.

FUNCTIONAddress reserve
BUS CURRENT75 mA @ 5V DC
DIMENSIONS56.6 × 12.1 × 77.5 mm
WEIGHT23.3 g
Official 1734-ARM documentation values.
Configuration verification

Confirm the exact catalog number, intended slot, wiring base, keyswitch position and future module before ordering 1734-ARM.

General Information −
Catalog number1734-ARM
Product typeAddress reserve module
System roleAddress reserve
External wiringNone required
Module location1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS wiring base
Produced I/O data1 byte
Consumed I/O dataNone
Physical and Wiring ＋
Dimensions (H × W × D)56.6 × 12.1 × 77.5 mm (2.23 × 0.49 × 3.05 in.)
Approximate weight23.3 g (1.0 oz)
Keyswitch positionUse the position of the future or removed module
Compatible bases1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS
Status indicatorsModule status and network status
Field wiringNo external wiring required
Enclosure typeNone (open-style)
Electrical and Isolation ＋
local backplane bus current, maximum75 mA @ 5V DC
Power dissipation, maximum0.375 W @ 5V DC
Thermal dissipation, maximum1.3 BTU/hr @ 5V DC
Produced data1 byte
Consumed dataNone
Module statusGreen/red status indicator
Network statusGreen/red network indicator
Environmental ＋
Operating temperature−20…55 °C (−4…131 °F)
Storage temperature−40…85 °C (−40…185 °F)
Relative humidity5…95%, noncondensing
Vibration2 g at 10…500 Hz
Operating shock30 g
Nonoperating shock50 g
Documentation ＋
Installation instructions1734-IN019
User manual1734-UM016
Selection guide1734-SG001
Country of originSingapore
Lifecycle and Compatibility ＋
Lifecycle statusActive
Ordering checkConfirm the exact catalog number, intended slot, wiring base, keyswitch position and future module before replacement.
Source: official publications 1734-IN019, 1734-SG001 and the official 1734-ARM product documentation.
FAQ

Questions Buyers Ask Most

What is 1734-ARM used for?＋

1734-ARM retains a node address so a future option can later be inserted into the reserved slot.

Does 1734-ARM require external wiring?＋

1734-ARM requires no external wiring according to PLC publication 1734-IN019.

How much I/O data does 1734-ARM exchange?＋

1734-ARM produces one byte of I/O data and consumes no I/O data.

Which wiring bases support 1734-ARM?＋

1734-ARM can be installed with 1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS wiring base assemblies.

What is the maximum local backplane bus current for 1734-ARM?＋

1734-ARM has a documented maximum local backplane bus current of 75 mA at 5V DC.

What should be checked before ordering 1734-ARM?＋

For 1734-ARM, confirm the complete catalog number, intended slot, compatible wiring base, keyswitch position and future module before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
1734-ARM

Official PLC documentation for the 1734-ARM distributed I/O address reserve module.

distributed I/O Address Reserve Modules

PLC publication 1734-IN019 covering distributed I/O address reserve modules, installation, wiring and safety information.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page are based on PLC publication 1734-IN019 and the official 1734-ARM product page.

1734 ADDRESS RESERVE RELATIONSHIP

How 1734-ARM Fits into the 1734 Distributed I/O System

1734 identifies the distributed I/O platform. Within this platform, an address reserve module retains a node address so a future option can later be inserted in the same slot. 1734-ARM retains a node address, requires no external wiring, produces one byte of I/O data and consumes no I/O data.

PLATFORM1734 Distributed I/OModular I/O architecture
→
SYSTEM ROLE1734 Address ReservationRetains the planned node address
→
EXACT MODEL1734-ARMAddress reserve module
Selection note: Match the reserved slot, compatible wiring base and keyswitch position to the planned future module.
APPLICATION AREAS

Application mind map for 1734-ARM

Maintenance ReplacementReserve a node address for a future distributed I/O option
Spare-Part PlanningMaintain planned slot allocation during staged system expansion
APPLICATION CENTER1734-ARM distributed I/O address reserve module
Compatibility ReviewCompare catalog number, wiring base and intended slot before shipment
Documentation CheckUse PLC publication 1734-IN019 for installation reference.
