Low-profile PCI Express, 2 GIGA Baud RM w/FO options, 128 MByte memory, multimode transmission.
Short bracket option for use in low-profile PCIE slots.
Tall bracket kit included for use in standard PCIE slot
ยี่ห้อ :
GEส่วนจำนวน :
PCIE-5565PIORC-100A00น้ำหนัก :
0.05kgมิติ :
1.1x1x120cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Reflective Memory PCI Express Node Card
|
Part Number |
PCIE-5565PIORC-100A00 |
|
Brand |
GE |
|
Category |
Reflective Memory PCI Express Node Card |
|
Family |
PCIE-5565PIORC |
|
Lifecycle Status |
Discontinued |
➤How To Get A Price? Contact Below Now!
Sales Manager: Frida Zhang (24/7 online)
Phone/Whatsapp: +86 15359408275
Email: sales5@mooreplc.com
➤Overview PCIE-5565PIORC-100A00

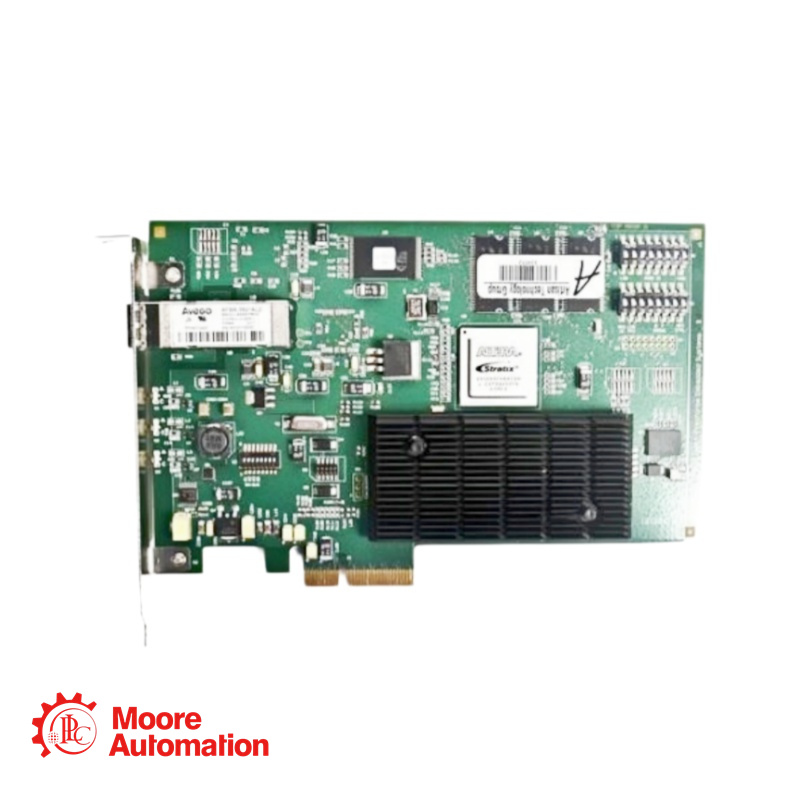

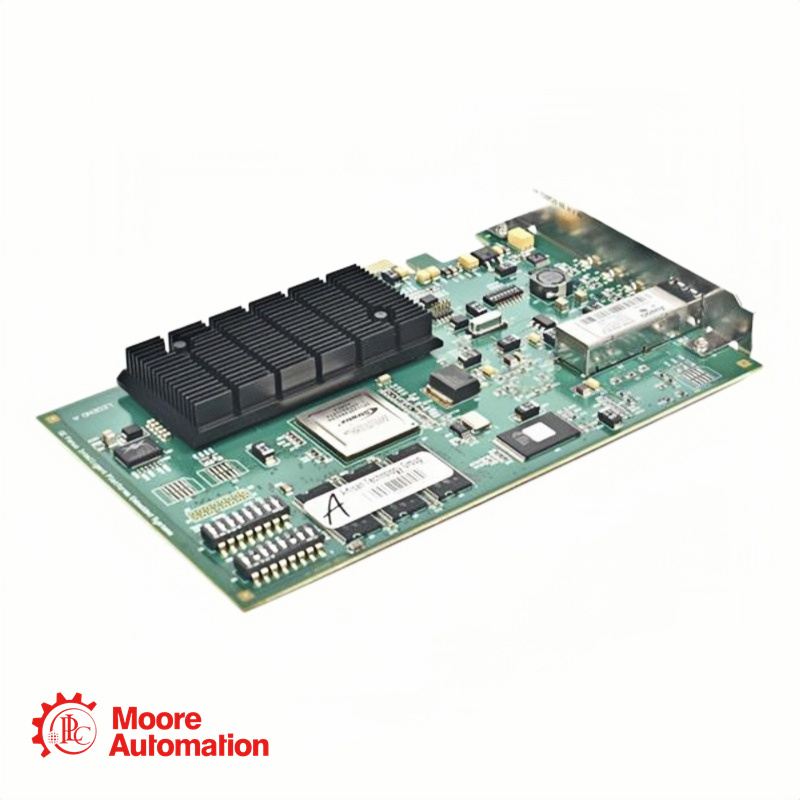

The PCIE-5565PIORC-100A00 is a low-profile PCI Express (PCIe) Reflective Memory (RFM) node interface card. It provides a high-speed, ultra-low latency, and deterministic fiber-optic network solution for distributed processing and real-time computing systems. Data written to the onboard memory of one node is automatically and transparently broadcasted via fiber optics to all other nodes on the network without any processor or software overhead. This specific model (-100A00) features 128 MByte of onboard memory and supports multimode fiber-optic transmission. It includes a short bracket pre-installed for low-profile slots and a tall bracket kit for standard PCIe slots. It is widely used in demanding industrial control applications, flight/ship simulators, and high-speed data acquisition systems.
➤Technical Data PCIE-5565PIORC-100A00
|
RAM |
128 MByte |
|
Transfer Specifications |
43 MByte/s (single longword accesses) to 170 MByte/s |
|
Power Requirements |
0.7A max at +12 VDC (± 5 percent) and 0.6A max at +3.3 VDC |
|
Environmental Specifications |
Operating: 0°C to +65°C, with forced air cooling |
|
Storage |
-40°C to +85°C |
