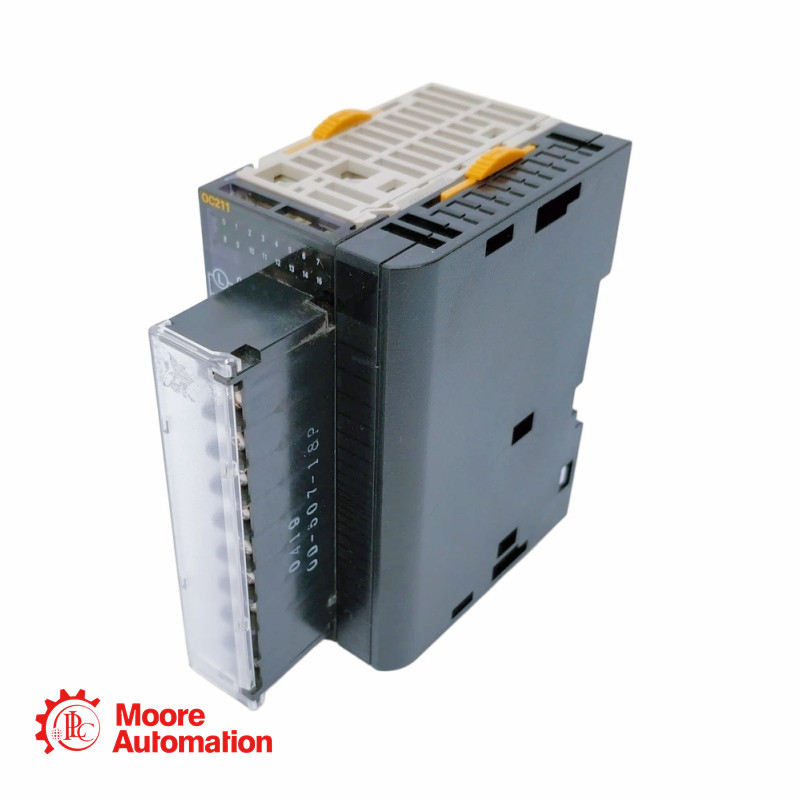

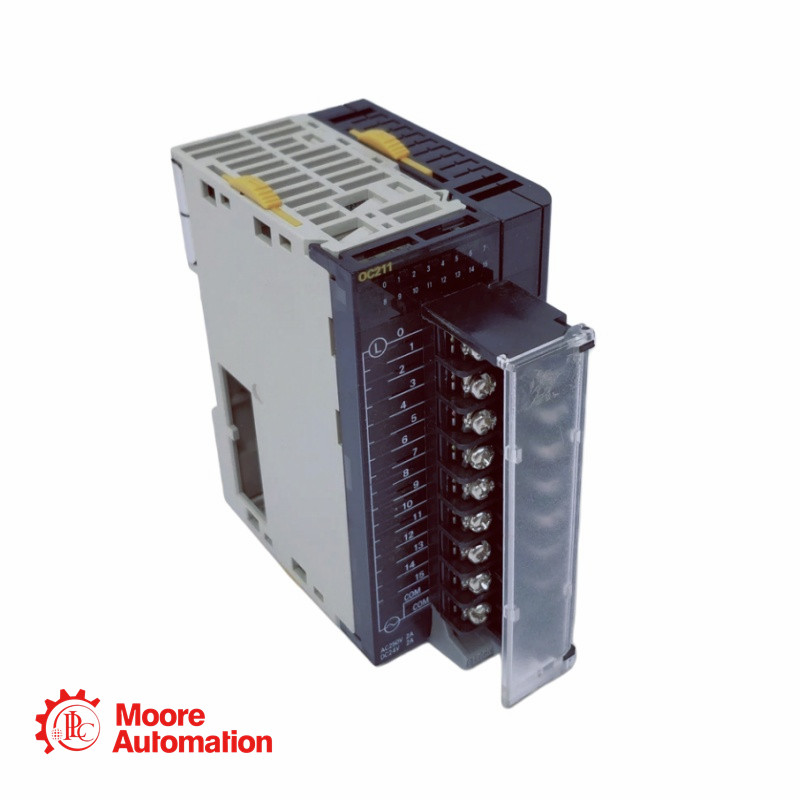

OMRON CJ1W-OC211 is a 16-point relay contact output unit for CJ-series PLCs, controlling external industrial loads reliably in automation systems.
ยี่ห้อ :
OMRONส่วนจำนวน :
CJ1W-OC211น้ำหนัก :
0.17 kgมิติ :
3.1cm x 9.0cm x 8.9cmประเทศต้นกำเนิด :
JAPANรหัส HS :
8537101190คำอธิบาย :
16-point relay contact output unit for OMRON CJ-series PLC control system applications.
The OMRON CJ1W-OC211 is a CJ-series basic I/O relay output unit designed for PLC-based ON/OFF control of external devices. It provides 16 relay contact outputs through a removable terminal block, supporting 250 VAC and 24 VDC load switching. With built-in output indicators, strong relay endurance, and CJ rack compatibility, it is suitable for machine automation, process panels, pump control, alarms, and general industrial control systems.
|
Contact Sales Manager Nina |
Whatsapp：+86 18030235312 |
|
Email：sales8@askplc.com |
|
Technical Parameters |
|
|
Part Number |
CJ1W-OC211 |
|
Product Series |
OMRON CJ Series |
|
Product Type |
Relay Contact Output Unit |
|
Number of Outputs |
16 relay contact outputs |
|
Maximum Switching Capacity |
2 A at 250 VAC; 2 A at 24 VDC; 8 A per unit |
|
Minimum Switching Capacity |
1 mA at 5 VDC |
|
Number of Circuits |
16 points/common, 1 circuit |
|
ON/OFF Response Time |
15 ms max. / 15 ms max. |
|
Relay Service Life |
Electrical: 150,000 operations at 24 VDC; Mechanical: 20,000,000 operations |
|
Internal Current Consumption |
110 mA at 5 VDC max.; 96 mA at 24 VDC max. |
|
Weight and Dimension |
0.17 kg max.; 3.1cm x 9.0cm x 8.9cm |
FAQ
Q1: What is the main function of CJ1W-OC211?
A: It is used to control external loads such as solenoids, indicators, interposing relays, contactors, alarms, and small control circuits.
Q2: Is CJ1W-OC211 suitable for both AC and DC loads?
A: Yes. It supports relay contact output switching up to 250 VAC or 24 VDC at 2 A per point, but the total unit load must not exceed the rated 8 A per unit.
Q3: What should be checked before replacing a CJ1W-OC211 module?
A: Check the CJ rack compatibility, allocated I/O word, common wiring, load voltage, load current, terminal block condition, relay output life, and whether inductive-load protection is required.
Q4: Can CJ1W-OC211 be used for high-speed output applications?
A: No. As a relay output module, it has a 15 ms response time and mechanical relay life limits. For high-speed pulse or frequent switching, transistor output models are usually more suitable.
Application Fields
Oil and gas wellhead monitoring skids
Natural gas compressor station control panels
Water and wastewater pump station automation
Power plant auxiliary equipment control
|
