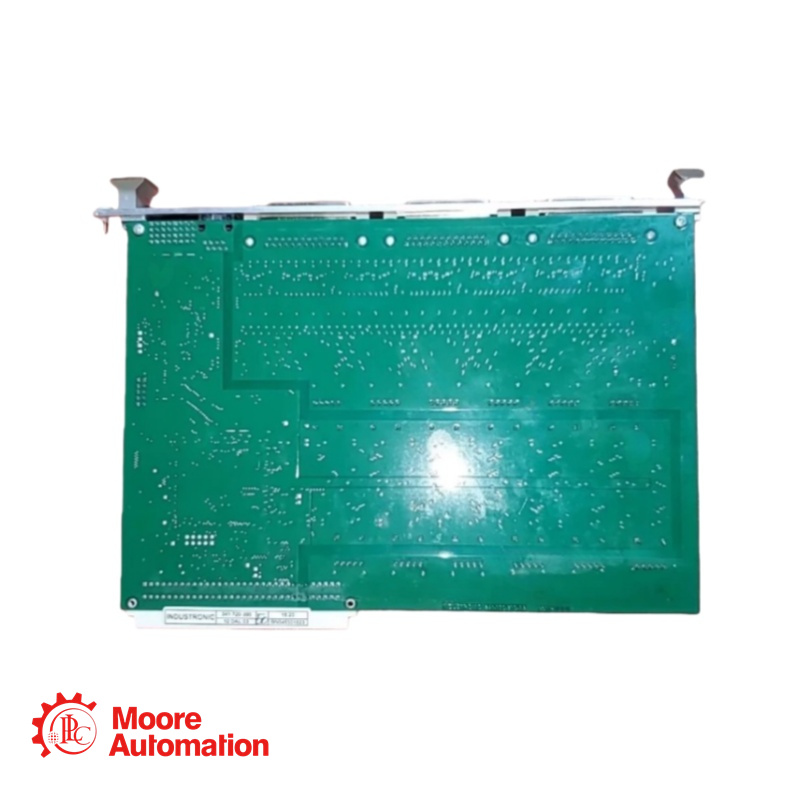

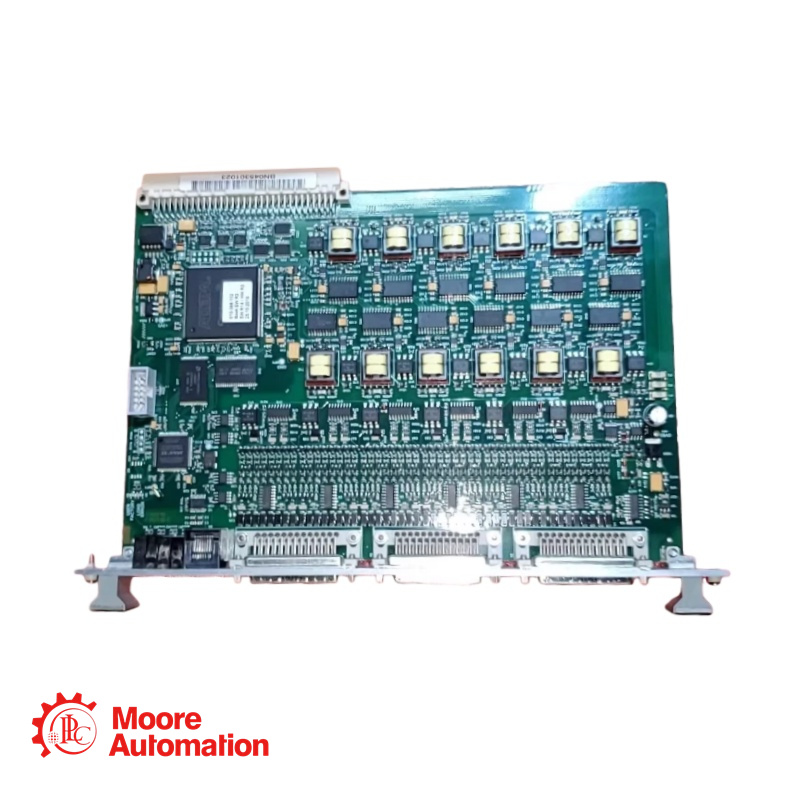

The 12 DAL 03 Analog Line Card is a dedicated interface module designed for integration within digital intercom systems, specifically to manage up to twelve analog intercom stations.
ยี่ห้อ :
INDUSTRONICส่วนจำนวน :
341-720-300 12 DAL 03น้ำหนัก :
0.8 kgมิติ :
86.36 mm*111.76 mm*55.88 mmประเทศต้นกำเนิด :
Germanyรหัส HS :
8537101190คำอธิบาย :
Analog Line CardGive you Best Offer - Sales Manager: Frida
Phone: +86 15359408275
Email: sales5@mooreplc.com
Product Parameters
Operating Voltage (Control Electronics): 5 V
Current Consumption: 0.3 A
AF Input Voltage Range: 0 Vss to 3.5 Vss
AF Input Impedance: Approx. 5,000 ohms
AF Output Voltage Range: 0 Vss to 3.5 Vss
AF Output Impedance: 300 ohms
Peripheral Operating Voltage: 48 V to 72 V
Max. Current via Central Tapping of AF Transformer: 350 mA
Max. Total Current per 8 Lines: 350 mA
Min. Input Voltage to Detect Active Line: 38 V
Operating Ambient Temperature: -5°C to +50°C (+23°F to +122°F)
Management Capacity: Up to 12 analog intercom stations, up to 48 line inputs/outputs
Product Description
It functions as a bidirectional signal conditioning and conversion unit, handling both Audio Frequency (AF) signals and 60 V DC line control signals. The card digitizes incoming analog audio signals into PCM (Pulse Code Modulation) format for transmission to a central DXC controller and conversely converts digital audio from the controller back to analog for output to connected stations.
|
