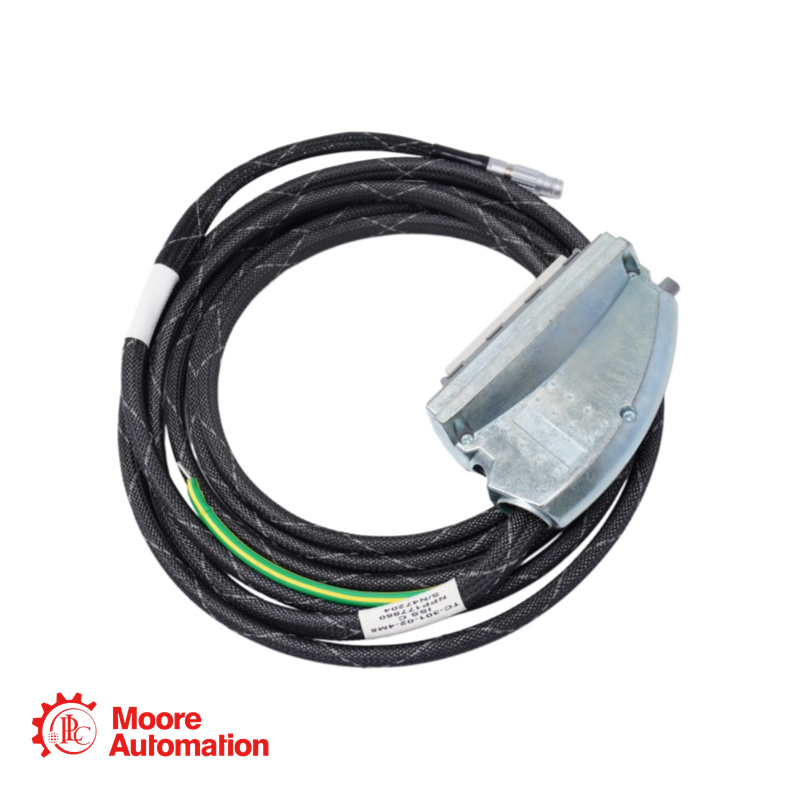

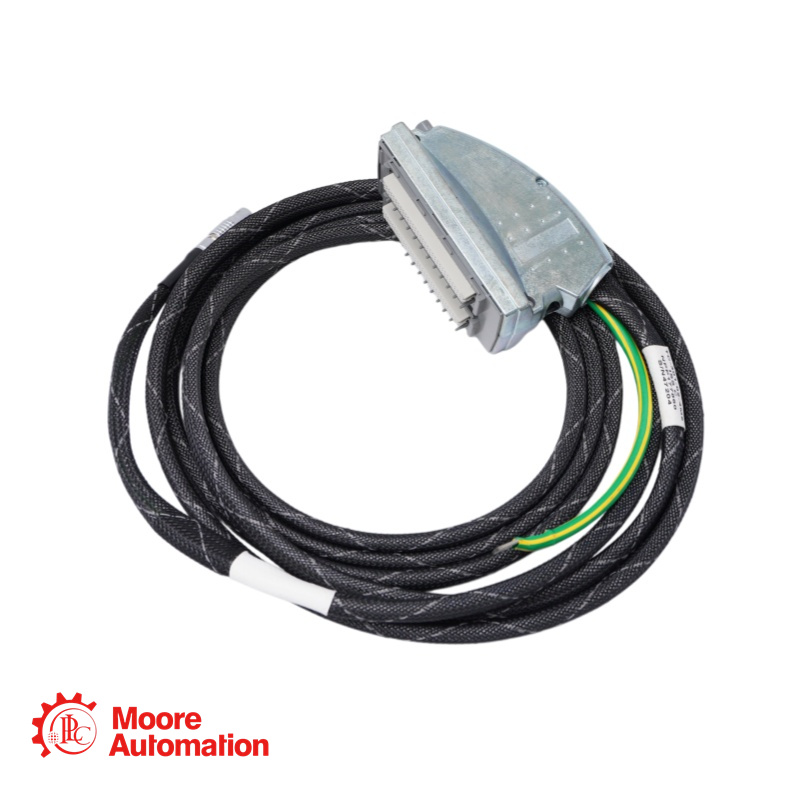

ICS Triplex TC-205-02-4M5 I/O Companion Slot Cable

Contact Us

Email:sales5@mooreplc.com
Phone/Whatsapp/Wechat:+86 15359408275

Description

This type of Trusted I/O Companion Slot Cable is designed for use with digital 24 V/120 Vdc
or analogue output modules and is suitable for connecting output signals from the module
to an internal FTA.
Three multi-core cables are used for this application. The chassis end of multi-core 1 is fitted with two 96-way type 'C' connectors housed in a double-width hood. The non-chassis end of multi-core 1 is fitted with a 96-way type 'R' connector housed in a single-width hood enabling connection to an FTA. The non-chassis end of multi-core 2 is fitted with a 5-way BLZF 3.5 series connector enabling the cable to be terminated at a T8290 Output Power Distribution Unit. This cable is used for field power return. The non-chassis end of multi-core 3 is fitted with a 6-way AMP plug used to connect power to the field from a T8290 or T8297 and is made up of five individual 2.5 mm wires contained within Rilgain sleeving.

Specifications

Brand: ICS Triplex
Model: TC-205-02-4M5
Product Type: I/O Companion Slot Cable
System: Trusted TMR (Triple Modular Redundancy)
Cable Length: 4.5 meters
Connector Type: 96-way DIN 41612 connectors
Connection Type: Module ↔ Field Termination Assembly (FTA)
Signal Type: Digital & Analog I/O signals
Shielding: Individually screened twisted pairs
Signal Integrity: High noise immunity, low crosstalk
Safety Level: Suitable for SIL-rated systems
Redundancy Support: TMR architecture compatible
Installation: Pre-terminated plug-and-play

Application

Safety Instrumented Systems (SIS)
Emergency Shutdown Systems (ESD)
Fire & Gas Detection Systems
Oil & Gas offshore/onshore platforms
Power generation and turbine protection systems
