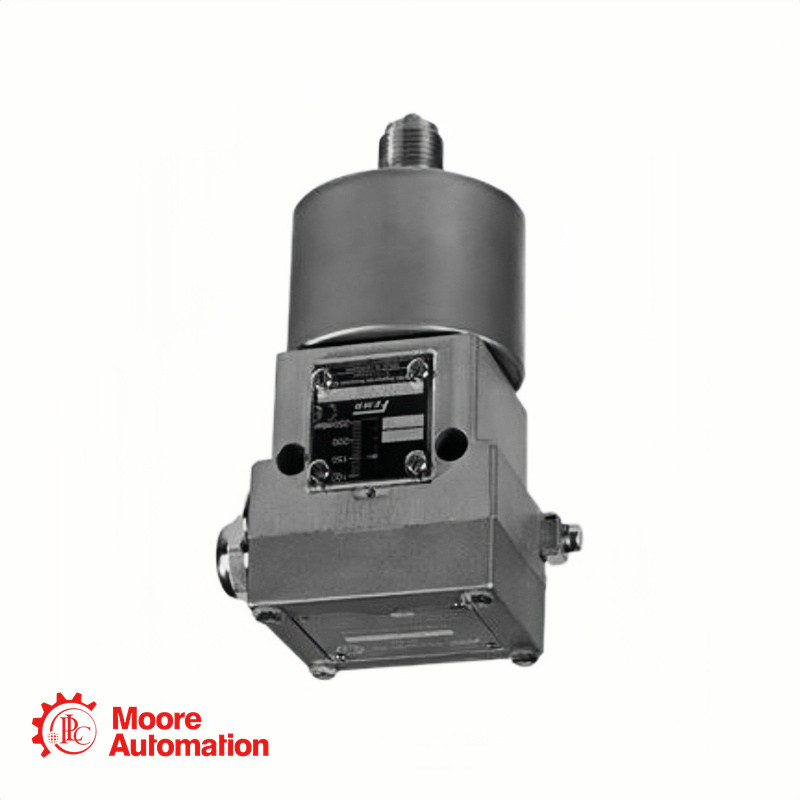

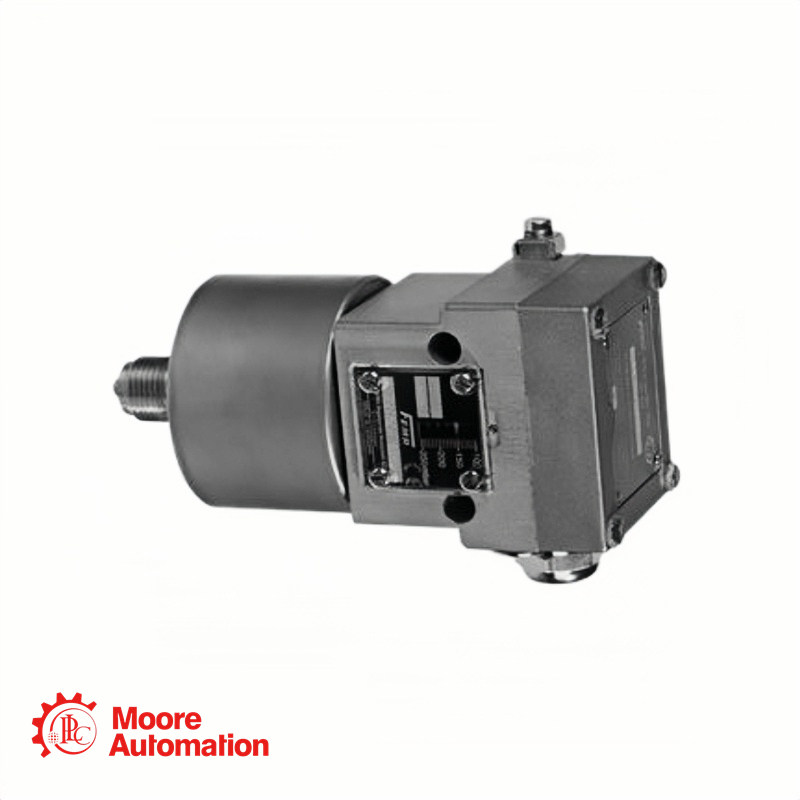

EX-DGM506 is Alerton Pressure monitor (Ex) for burnable gas (Ex-DGM).
ยี่ห้อ :
Honeywellส่วนจำนวน :
EX-DGM506น้ำหนัก :
1.1 kgมิติ :
16.1 cm x 11.3 cm x 7 cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Pressure monitor
Get a Better Price Now
◆5-Stars Sales Manager: Frida
EX-DGM506 Description
EX-DGM506 is Alerton Pressure monitor (Ex) for burnable gas (Ex-DGM).
EX-DGM506 Technical Specifications
Kind of pressure: overpressure, relative
Pressure connection: internal thread G1/4, external thread G1/2
Electrical connection: terminal connection M16x1,5
Protection class: IP65
Housing material: rugged housing of seawater resistant aluminium die casting GD Al Si 12
Sensing element material: 1.4104 + 1.4571
Media temp.: -15...60C
Media temp. limit: temperatures up to 80 oC are allowable for short periods. Higher temperatures are possible, provided that the limit is safeguarded by suitable measures (e.g. water tube trap, see Accessories for Pressure Switches / Transmitters)
Ambient temperature: -15...60C
Ambient temp. limit: at temperatures below 0 oC, ensure that no water condensation can arise in the sensor and in the switching device
Switch function/capacity: SPDT Microswitch 250 Vac; capacity 2 A inductive, 3 A resistive
EX-DGM506 Key Features and Advantages
√ Single mCertified Safety for Hazardous Areas.The EX-DGM506 is ATEX certified for use in potentially explosive atmospheres, making it suitable for natural gas, propane, and other fuel gas applications. Its SIL2 certification further underscores its reliability for safety-instrumented functions .
√ Robust, Corrosion-Resistant Construction. It features a rugged housing made of seawater-resistant aluminum die-casting (GD Al Si 12) , ensuring long-term durability in harsh industrial and offshore-type environments .
√ Compliance with International Standards. Its compliance with DIN EN 1854 (specific safety requirements for automatic shut-off valves and pressure monitors) and DVGW standards guarantees it meets high European safety and quality benchmarks for gas handling equipment.
Frequently Asked Questions about EX-DGM506
|
What is the maximum pressure the EX-DGM506 can withstand? |
|
The maximum permissible pressure for this monitor is 5 bar. |
|
What are the key pressure settings and capabilities of EX-DGM506? |
|
Based on the official model description, the EX-DGM506 has an adjustable switching pressure range of 15 to 60 mbar . Its switching differential is not adjustable and is typically between 7 and 11 mbar . The device is calibrated for rising pressure, meaning the setpoint on the scale corresponds to the switch point as pressure increases. |
|
What approvals and certifications does this EX-DGM506 hold? |
|
This pressure monitor holds several important certifications: |
