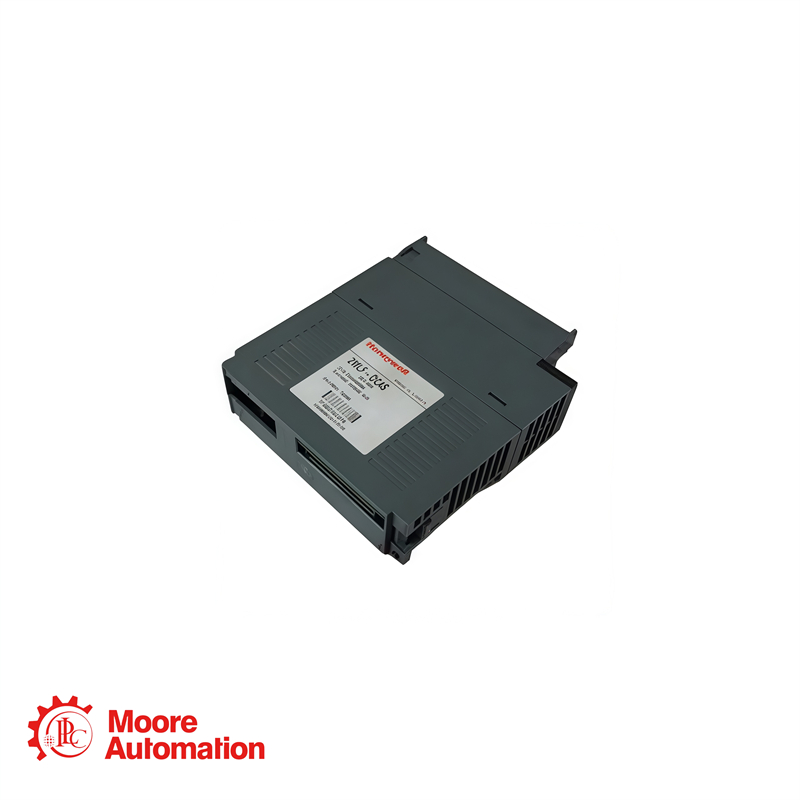

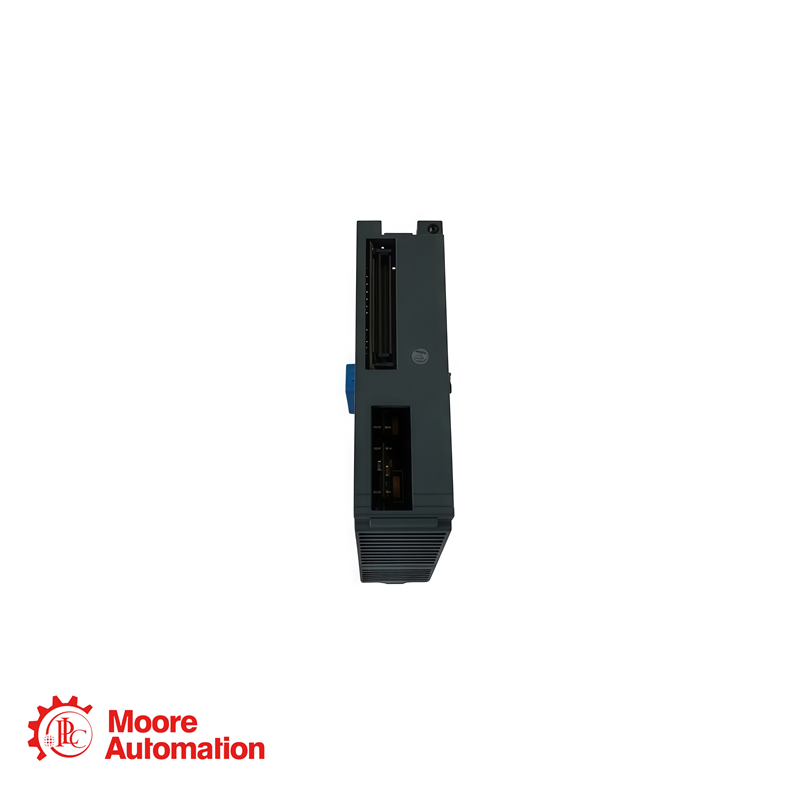

โมดูลเอาต์พุตอะนาล็อก HONEYWELL 2MLF-DC4H

Product Description

Brand: HONEYWELL

Part number: 2MLF-DC4H

Description: Analog Output Module

Country of origin: USA

Warranty: 1 Year

Availability: In Stock
Shipping Port: Xiamen, China

Output Channels: 4, channel-to-system optocoupler isolation
Settling Time: ≤ 1 ms (resistive load ≤ 600 Ω)
Accuracy: ±0.1 % F.S. (@25°C); ±0.3 % F.S. (0–55°C)
Temperature Coefficient: ±50 ppm/°C
Drive Capacity: ≤ 600 Ω load (at 24 V supply)
Offset Leakage Current: ≤ 0.1 mA
Wire Loss Readback: Supports 4–20 mA wire loss detection (< 3.2 mA)
Short-Circuit Protection: Automatic current limiting, automatic recovery upon fault clearance
Isolation: Channel to system optically isolated; non-isolated between channels
Isolation Voltage: AC 560 V rms / 3 cycles (at an altitude of 2000 m)
Backplane 5 V Consumption: ≤ 200 mA
External Power Supply: DC 24 V ±10%, ripple ≤ 4 Vp-p, typical 220 mA
Operating Temperature: -25 … +70°C
Storage Temperature: -40 … +85°C
Relative Humidity: 5–95% RH (non-condensing)
External Connections: 18-position removable screw terminal block (M3×6)
Applicable Wire Capacity: 0.3–0.75 mm² Litz wire
Mounting method: 35 mm DIN rail
