GE MARK VIE · 12-CHANNEL DISCRETE OUTPUT

IS220PDOAH1BC

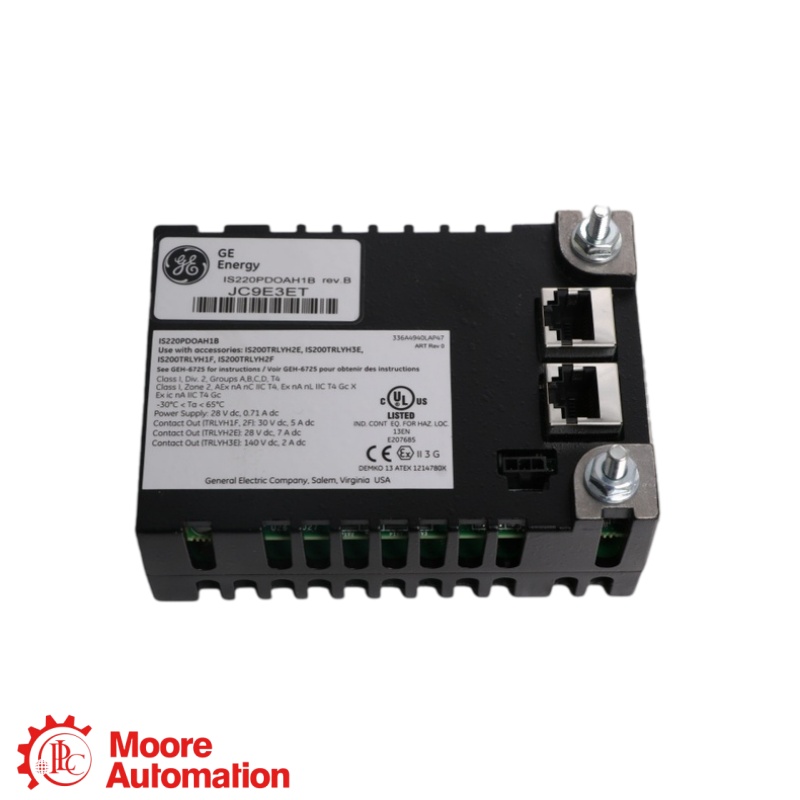

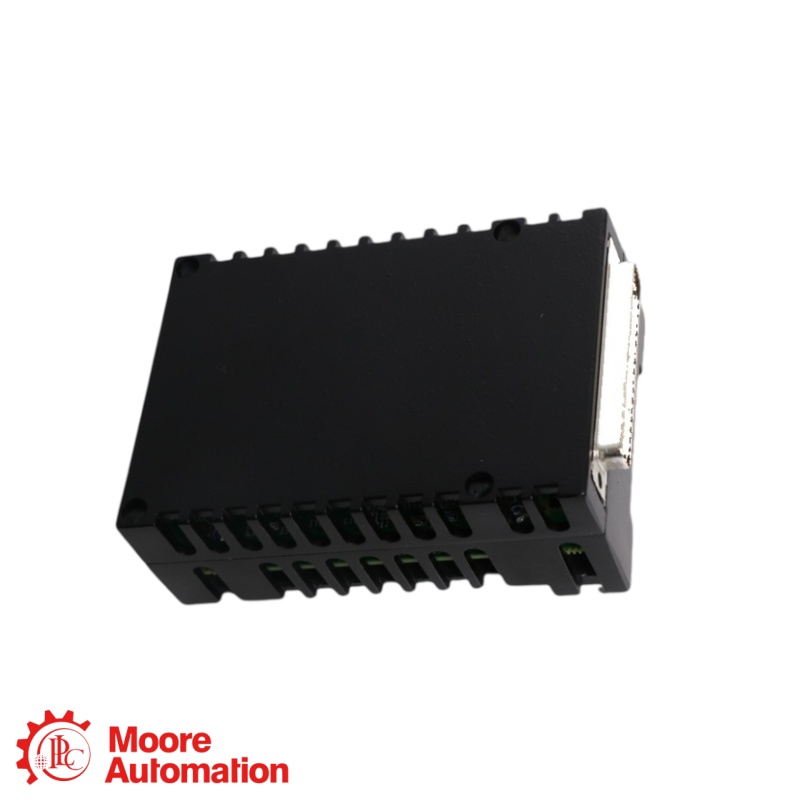

IS220PDOAH1BC is a Mark VIe PDOA discrete output pack for controlling up to twelve terminal-board relay channels. It uses the H1B hardware form with production revision C and a dual Ethernet I/O interface.

PRODUCT TYPEDISCRETE OUTPUT
PLATFORMMark VIe
RELAY CONTROL12 channels
IONET2 ports
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● 12-CHANNEL DISCRETE OUTPUT
MARK VIE

IS220PDOAH1BC

DISCRETE OUTPUT

MARK VIE · PDOA H1B · RELAY OUTPUT CONTROL

MODULE ROLE
IS220PDOAH1BC interfaces the Mark VIe Ethernet I/O network to a discrete output terminal board and its relay status feedback.
LONG DESCRIPTION
IS220PDOAH1BC commands relay outputs and reads the terminal-board-specific coil, contact and fuse feedback. Mechanical or solid-state relay characteristics depend on the selected TRLY or SRLY board. The pack uses a BPPC processor, two RJ-45 IONet connectors, a DC-37 terminal-board connection and a separate 28 Vdc power input.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS220PDOAH1BC Reference Is Structured

IS
Issuing organizationGE Power, Salem, Virginia
2
Substance designationLegacy non-RoHS designation
20
Assembly levelOne or more PCBAs in an enclosure
PDOA
Functional mnemonicDiscrete output
H
Technology codeIncludes surface-mount components
1
Assembly variantPDOA H1 hardware variant
B
Compatibility versionBackward-compatibility version B
C
Assembly revisionPWA production version C
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS220PDOAH1BC DISCRETE OUTPUT

Engineering data at a glance

Click “+” to expand more specifications.

RELAYS12
RESPONSE≈6 ms
IONET2 ports
SUPPLY28 Vdc
PDOA pack data: up to twelve relay-control channels, approximately 6 ms command-to-output response, and dual I/O Ethernet.
Module configuration The complete reference IS220PDOAH1BC identifies PDOA H1B hardware and production revision C. The final C is a revision code; relay contact type and load rating are determined by the terminal board.
GENERAL INFORMATION −
BrandGE
Part numberIS220PDOAH1BC
Product typeDiscrete Output Pack
Relay-control channelsUp to 12
Hardware formPDOAH1B, BPPC processor
Production revisionC
NETWORK & CONNECTIONS ＋
IONet interfaceTwo RJ-45 Ethernet connectors
Terminal interfaceDC-37 pin connector
External power28 Vdc through three-pin connector
OUTPUT & FEEDBACK ＋
Pack responseApproximately 6 ms, Ethernet command to output
Relay monitoring12 relay/coil feedback channels
Fuse monitoringThree status inputs multiplexed across six fuses
SOE reportingConfigurable relay operation events
Terminal-board typesCompatible TRLY and SRLY; DRLY excluded
TERMINAL BOARD OPERATION ＋
Relay characteristics: The connected terminal board determines mechanical versus solid-state outputs, contact arrangement, load rating and available feedback. The PDOA pack is not a standalone relay terminal board.
Source: GEH-6721T, Volume II, PDOA Discrete Output Module, chapter 13; GEH-6855, Volume I, component part-number structure.
