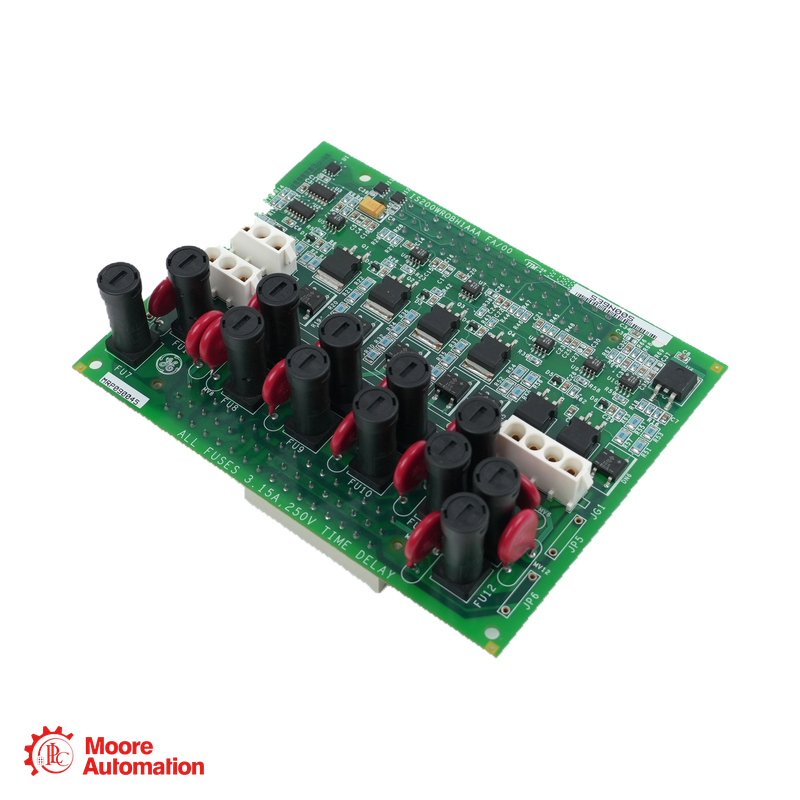

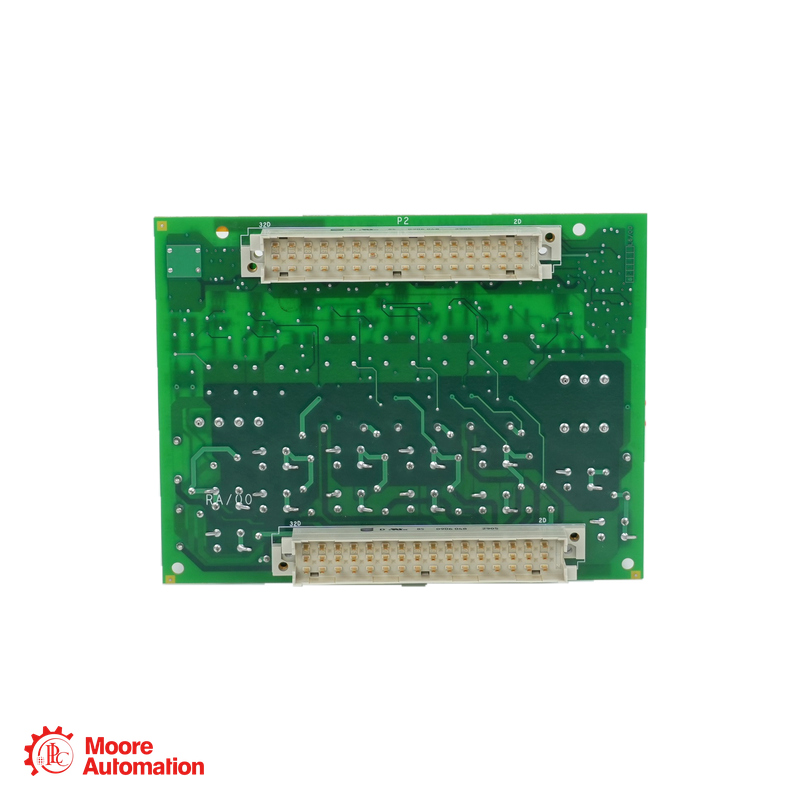

GE IS200WROGH1A Fused Relay Output Option Board
GE IS200WROGH1A Fused Relay Output Option Board
GE IS200WROGH1A Fused Relay Output Option Board

GE IS200WROGH1A Fused Relay Output Option Board

GE MARK VIe / VIeS · FUSED RELAY OPTION

IS200WROGH1A

IS200WROGH1A is a GE WROG relay-output option board for compatible TDBS terminal boards in Mark VIe and Mark VIeS control systems. GEH-6721 describes fused power distribution to all twelve relay outputs, with isolated, polarity-insensitive voltage sensing at each fuse.

PRODUCT TYPEFUSED RELAY OPTION BOARD
PLATFORMMark VIe / VIeS
OUTPUTS12 fused relay circuits
FUNCTIONFused power distribution
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● FUSED RELAY OUTPUT OPTION BOARD
MARK VIe / VIeS

IS200WROGH1A

FUSED RELAY OUTPUT OPTION BOARD

TDBS · 12 FUSED RELAY CIRCUITS

MODULE ROLE
IS200WROGH1A is a GE WROG option board used with compatible TDBSH2A, TDBSH4A or TDBSH6A terminal boards. It distributes input power to twelve relay outputs through individual fuses.
LONG DESCRIPTION
IS200WROGH1A provides fused power distribution for all twelve TDBS relay outputs. Each fuse has isolated, polarity-insensitive voltage sensing. GEH-6721 states a default fuse value of 3.15 A and describes this option for relay-feedback applications from 9–240 V AC or 12–125 V DC.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

IS200WROGH1A Model Code at a Glance

IS200
Printed prefixGE board identifier prefix; no separate electrical rating is implied
WROG
Option-board familyFused power distribution for twelve TDBS relay outputs
H1A
Documented variantExact suffix cited by GEH-6721; no interchangeability is inferred
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS200WROGH1A FUSED RELAY OUTPUT OPTION BOARD

Engineering data at a glance

Click “+” to expand more specifications.

RELAY CIRCUITS12 fused
DEFAULT FUSE3.15 A
SENSINGIsolated
POLARITYInsensitive
GEH-6721 Volume II, section 8.3.3.6, documents the WROGH1A option board.
Supported TDBS contextGE lists IS200WROGH1A with TDBSH2A, TDBSH4A and TDBSH6A. It distributes power from JF1 to each of the twelve relay circuits through a separate fuse.
GENERAL INFORMATION −
BrandGE
Part numberIS200WROGH1A
Product typeFused relay output option board
Control-system familyMark VIe / Mark VIeS
Installed board contextTDBSH2A, TDBSH4A or TDBSH6A
FunctionFused relay-output power distribution
RELAY OUTPUT PATH ＋
Fused output circuits12
Fuse associationFU1–FU12 correspond to relay circuits 1–12
Power entryOne JF1 input connector
Power distributionIndividual fuse in each relay-output feed
FUSE & FEEDBACK ＋
Default fuse value3.15 A
Fuse sensingIsolated voltage sensing for each fuse
Polarity sensitivityFuse-voltage sensing is not polarity-sensitive
Feedback application9–240 V AC or 12–125 V DC
BOARD IDENTIFICATION ＋
GE documented optionIS200WROGH1A
Host terminal boardsTDBSH2A / TDBSH4A / TDBSH6A
Circuit count12 fused relay-output circuits
Source: GEH-6721, Mark VIe and Mark VIeS Control Systems, Volume II, section 8.3.3.6 (WROGH1A); feedback application range appears in the TDBS compatibility section. No TDBS carrier dimensions or separate relay-contact ratings are asserted for this option board.
FAQ

Questions Buyers Ask Most

What does IS200WROGH1A do in a TDBS assembly?＋

IS200WROGH1A distributes input power through separate fuses to all twelve TDBS relay-output circuits.

Which terminal boards are listed with IS200WROGH1A?＋

GEH-6721 lists IS200WROGH1A with TDBSH2A, TDBSH4A and TDBSH6A terminal boards.

How many relay circuits does IS200WROGH1A fuse?＋

IS200WROGH1A provides twelve fused circuits; GE identifies fuses FU1 through FU12 with relay circuits 1 through 12.

How does IS200WROGH1A monitor each fuse?＋

IS200WROGH1A provides isolated voltage sensing for each fuse, and the sensing is not polarity-sensitive.

What feedback voltage applications are documented for IS200WROGH1A?＋

GE lists IS200WROGH1A for feedback applications from 9 to 240 V AC or from 12 to 125 V DC. These are feedback-application ranges, not a separate board supply rating.

What exact identifier should be quoted for IS200WROGH1A?＋

Use the complete IS200WROGH1A identifier. GEH-6721 specifically names this H1A option board; it does not establish interchangeability with other WROG suffixes.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200WROGH1A

Official manufacturer-documentation status for GE IS200WROGH1A.

Official datasheet status

GEH-6721 (Mark VIe and Mark VIeS Control Systems, Volume II) specifically describes IS200WROGH1A as a twelve-circuit fused relay-output option board. The GE-authored manual was consulted for product facts, but no manufacturer-hosted exact-model datasheet is linked here. For documentation for this part, contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The IS200WROGH1A functional description follows GEH-6721 Volume II, section 8.3.3.6. Contact Frida for model-specific documentation.

GE MARK VIe / VIeS RELAY OUTPUT RELATIONSHIP

How IS200WROGH1A Fits TDBS Relay Output Circuits

GE is the manufacturer brand; GE Mark VIe / VIeS is the control-system family; and IS200WROGH1A is the fused relay-output option board for twelve TDBS relay circuits.

GE · BRAND
GE Mark VIe / VIeSFused Relay Output Option Board
SYSTEM ROLE

Fused Relay Output Option Board

Distributes input power through individual fuses to all twelve TDBS relay outputs.

MODULE / CONFIGURATION

TDBSH2A / H4A / H6A

GEH-6721 documents this WROGH1A option with the TDBSH2A, TDBSH4A and TDBSH6A terminal boards.

ORDER DATA

IS200WROGH1A · Fused Relay Output Option Board

Use the exact IS200WROGH1A identifier; the manual does not establish interchangeability with other WROG suffixes.

System relationship: the WROG option feeds twelve TDBS relay circuits through FU1–FU12 from one JF1 input.
APPLICATION AREAS

Application map for IS200WROGH1A

TDBS Relay OutputsWorks with twelve TDBS relay-output circuits
Fused Power FeedFeeds each relay circuit through an individual fuse
TDBS FUSED RELAY OUTPUT OPTION IS200WROGH1A IS200WROGH1A · Fused Relay Output Option Board
Per-Fuse SensingProvides isolated, polarity-insensitive fuse-voltage feedback
Feedback ApplicationsGE documents 9–240 V AC or 12–125 V DC feedback applications.
