SYSTEM ROLE
SCR Power-Bridge Interface
Amplifies EX2100 firing commands and delivers isolated gate pulses to the 100 mm SCR bridge.

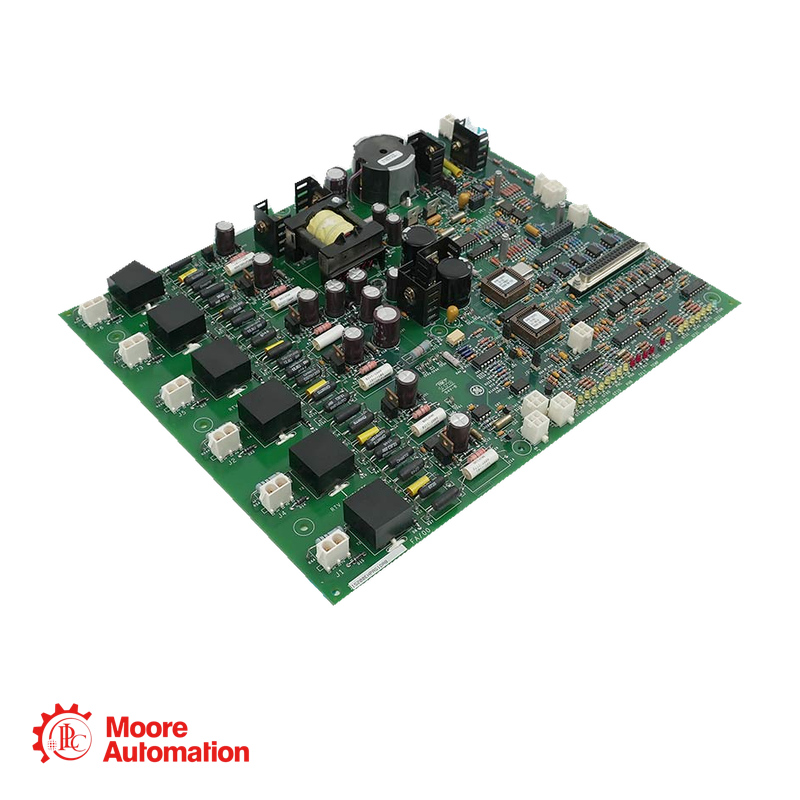

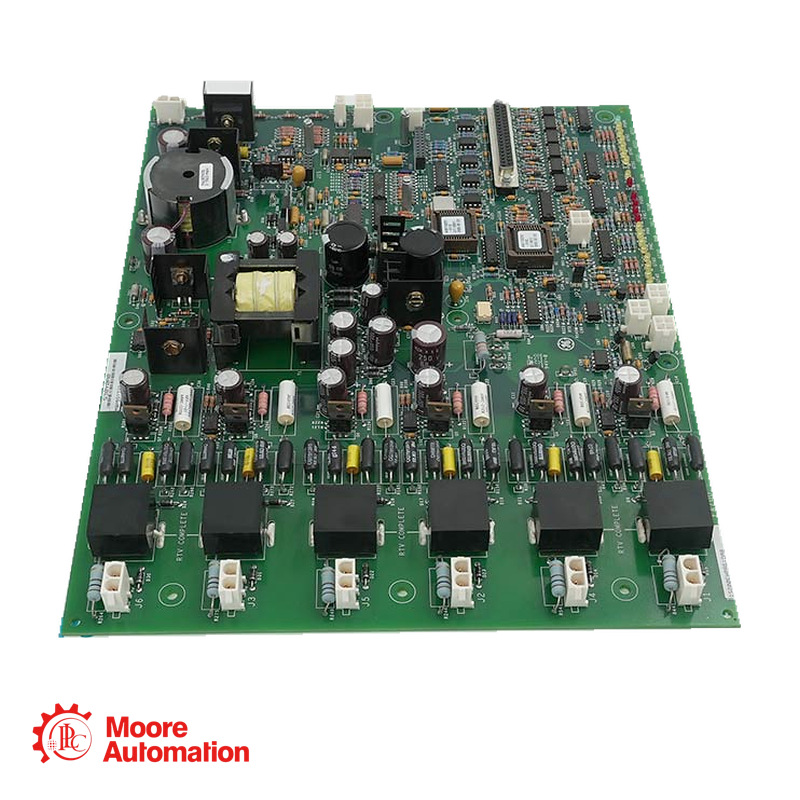

The IS200EHPAG1A is a GE EX2100 Exciter High-Voltage Gate Pulse Amplifier board. It forms the control-to-power bridge interface by receiving firing commands from the excitation controls, amplifying the gate pulses for the SCR power bridge, and returning monitored bridge status to the control system.
Click “+” to expand more specifications.
Documentation support for the GE IS200EHPAG1A EX2100 Exciter High-Voltage Gate Pulse Amplifier Board.
No direct exact-model manufacturer-hosted IS200EHPAG1A PDF was confirmed in the public documentation. For the applicable GE board instructions, revision compatibility and ordering support, please contact Product Specialist Frida.
CONTACT FRIDASend the complete model, quantity, and your technical or purchasing question.
Board-level statements on this page follow the applicable GE Industrial Systems EX2100 board instructions; contact Frida for the exact IS200EHPAG1A document package.
GE is the manufacturer brand; EX2100 is the excitation-control system; and IS200EHPAG1A is the Exciter High-Voltage Gate Pulse Amplifier board.
Amplifies EX2100 firing commands and delivers isolated gate pulses to the 100 mm SCR bridge.
Receives the control firing path from ESEL, drives six SCR positions and returns conduction-status information.
Match the complete catalog number and confirm the EHPA revision, ESEL interface and installed SCR bridge arrangement.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
