 /GE Fanuc IC655MDL503 Series Five 64-Point 24 V DC Input Module
GE Fanuc IC655MDL503 Series Five 64-Point 24 V DC Input Module
GE Fanuc IC655MDL503 Series Five 64-Point 24 V DC Input Module
GE Fanuc IC655MDL503 Series Five 64-Point 24 V DC Input Module

GE Fanuc IC655MDL503 Series Five 64-Point 24 V DC Input Module

GE FANUC SERIES FIVE · 64-POINT INPUT

IC655MDL503

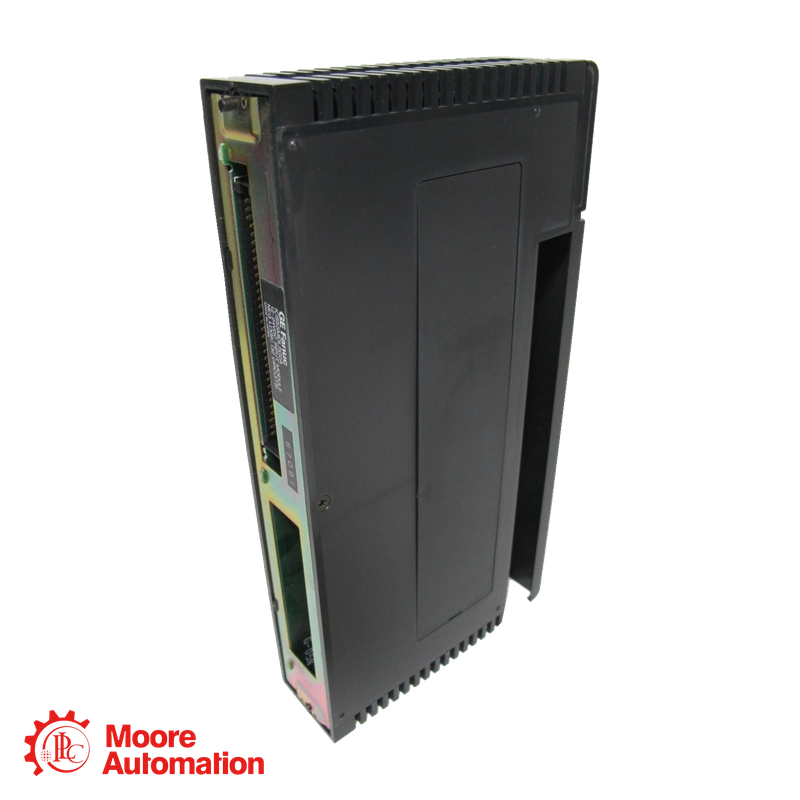

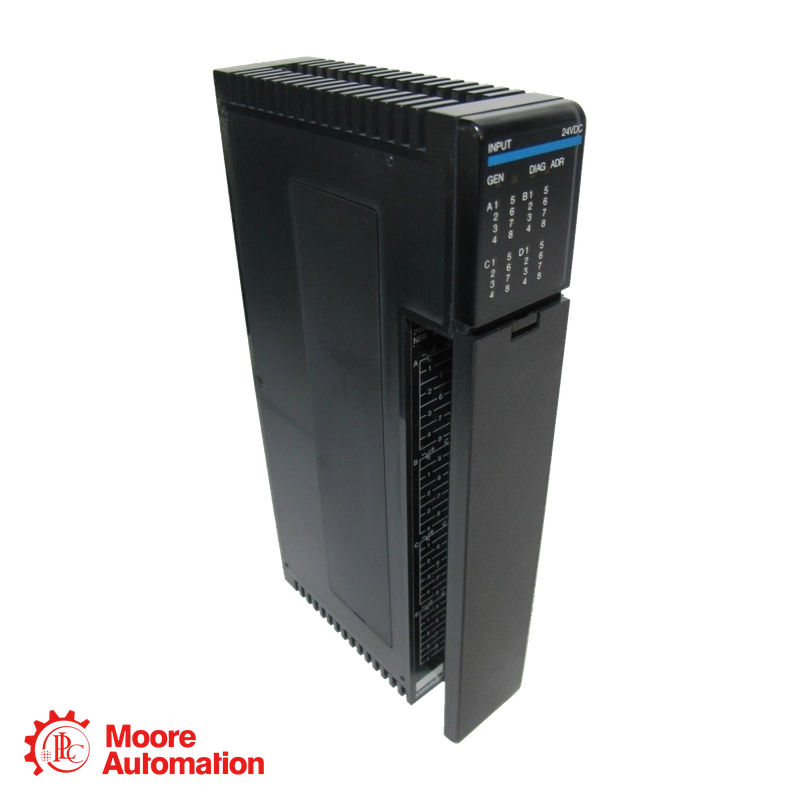

The IC655MDL503 is a GE Fanuc Series Five 64-point DC input module with selectable positive/selectable positive/negative logic circuits. Its four groups of 16 inputs operate from 20 to 28 V DC and connect through two 37-pin D-sub connectors.

PRODUCT TYPESERIES FIVE 64-POINT DC INPUT MODULE
PLATFORMSeries Five PLC
INPUTS64 circuits
VOLTAGE20-28 V DC
MANUFACTURERGE Fanuc
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE Fanuc ● SERIES FIVE 64-POINT DC INPUT MODULE
GE FANUC SERIES FIVE

IC655MDL503

SERIES FIVE 64-POINT DC INPUT MODULE

SERIES FIVE PLC · 20-28 V DC · SELECTABLE POSITIVE/NEGATIVE LOGIC

MODULE ROLE
IC655MDL503 accepts 64 selectable positive/selectable positive/negative logic field inputs for the Series Five PLC.
LONG DESCRIPTION
The IC655MDL503 is a 64-point selectable positive/selectable positive/negative logic input module for the GE Fanuc Series Five PLC. Its circuits operate from 20 to 28 V DC, draw 5 mA at 24 V DC, and are arranged as four groups of 16 inputs. Two 37-pin D-sub connectors provide field wiring for the four 16-point input groups.
👩‍💼
