The GE Fanuc IC5005TBW0000 is the performance configuration of the 15-inch IC5005 industrial panel computer
ยี่ห้อ :
GEส่วนจำนวน :
IC5005TBW0000น้ำหนัก :
7 kgมิติ :
39x31.2x15.6 cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Industrial Panel Computer
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Product Overview

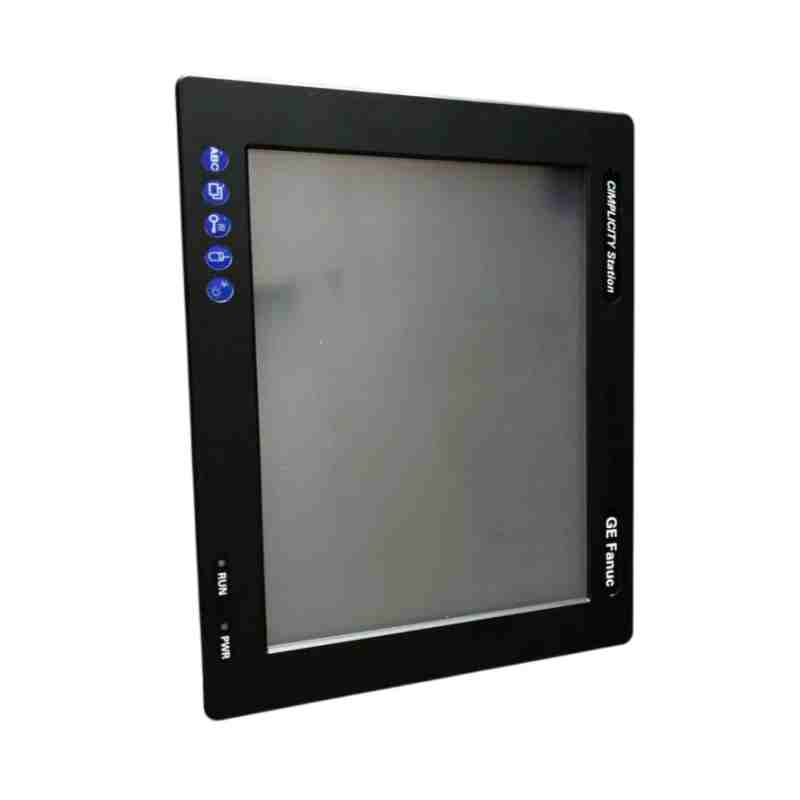

The GE Fanuc IC5005TBW0000 is the performance configuration of the 15-inch IC5005 industrial panel computer. It was offered as an unbundled CIMPLICITY Station with a 933 MHz processor, 256 MB of RAM, a 13 GB hard drive, Microsoft Windows 2000 and a read/write CD-ROM drive. Its 15.1-inch TFT display provides 1024 × 768 XGA resolution and uses an analog five-wire resistive touchscreen. The computer is designed for vertical installation in a control-panel or cabinet door, providing local access to machine status, process graphics and maintenance functions.
Technical Specifications
|
Parameter |
Specification |
|
Manufacturer |
GE Fanuc Automation |
|
Complete catalog number |
IC5005TBW0000 |
|
Product family |
CIMPLICITY Station / IC5005 Intelligence Panel PC |
|
Configuration |
Performance unbundled station |
|
Nominal display size |
15 inches |
|
Active display diagonal |
15.1 inches / 383.5 mm |
|
Display technology |
TFT LCD color touchscreen |
|
Native resolution |
1024 × 768 pixels, XGA |
|
Displayed colors |
64K |
|
Display brightness |
400 cd/m², downward adjustable |
|
Touchscreen technology |
Analog five-wire resistive |
|
Touchscreen connection |
Internal serial interface connected to COM4 |
|
Processor speed |
933 MHz |
|
Installed memory |
256 MB RAM |
|
Hard-disk capacity |
13 GB |
|
Operating system |
Microsoft Windows 2000 |
|
Optical drive |
Read/write CD-ROM |
|
Floppy drive |
3.5-inch floppy drive |
|
GE Fanuc application software |
Not included |
|
Ethernet interfaces |
2 × 10/100Base-T RJ45 |
|
AC input range |
100–240 VAC |
|
Input frequency |
50–60 Hz |
|
Power-supply rating |
100 W |
|
Power consumption |
54 W typical; 62 W maximum |
|
Maximum additional expansion-card load |
20 W |
|
Overall dimensions |
390 × 312 × 156 mm |
|
Recommended panel-wall thickness |
3 mm |
|
Operating temperature |
0°C to 40°C |
|
Storage temperature |
−20°C to 60°C |
|
Relative humidity |
10% to 85%, non-condensing |
Features
-15.1-inch TFT color touchscreen
-XGA 1024 × 768 native resolution
-Analog five-wire resistive touch input
-933 MHz processor
-256 MB installed RAM
-13 GB hard drive
-3.5-inch floppy drive
-Two 10/100Base-T Ethernet ports
-Two USB interfaces
-Three external RS-232 serial ports
Application Areas
Legacy HMI and SCADA operator stations
Production-line visualization and machine monitoring
Local control-panel operator interfaces
Industrial maintenance and diagnostic terminals
Replacement of installed IC5005TBW0000 computers
Brand
GE
Part number
IC5005TBW0000
Origin
USA
Description
Industrial Panel Computer
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Model Benefits
The product offers a number of benefits, including:
-Higher memory capacity than the IC5005TAW0000
-Read/write optical-media support
-Large-format local operator interface
-Retains a legacy Windows 2000 environment
-Multiple industrial communication options
-Supports controlled like-for-like replacement
-Separate management of hardware and application licensing
Frequently asked questions
1. Does the IC5005TBW0000 include CIMPLICITY software?
No. The IC5005TBW0000 is an unbundled station supplied with Windows 2000 but without GE Fanuc application software. The required CIMPLICITY installation, project files and licenses must be supplied separately.
2. Can the read/write CD-ROM be used for system backups?
The hardware configuration supports writable optical media, and the IC5005 documentation refers to CD-writer utilities. However, a complete verified disk image should also be stored on separate service media because an optical copy may not preserve boot sectors, drivers or licensed application components.
3. Can the hard drive or operating system be upgraded?
The available GE Fanuc documentation does not specify an approved SSD conversion or a supported upgrade from Windows 2000 for this exact catalog number. The drive interface, BIOS, touchscreen driver, communication drivers and CIMPLICITY license should be validated on a test system before any modification.
