B&R 4P3040.01-490 PP41 Power Panel
B&R 4P3040.01-490 PP41 Power Panel
B&R 4P3040.01-490 PP41 Power Panel

B&R 4P3040.01-490 PP41 Power Panel

B&R 4P3040.01-490

4P3040.01-490

The 4P3040.01-490 is a B&R Power Panel PP41 with a 5.7-inch QVGA monochrome LCD, integrated 2003-compatible controller, 10 digital inputs and 8 digital outputs. It operates from 24 VDC and provides RS232 and CAN interfaces.

MODULE TYPEPP41 Power Panel
SYSTEM FAMILYPower Panel PP41
COMPATIBILITYRS232 / CAN
ORDERING NUMBER4P3040.01-490
MANUFACTURERB&R Industrial Automation
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
B&R ● PP41 POWER PANEL
B&R Power Panel PP41

4P3040.01-490

4P3040.01-490 · COMPLETE MATERIAL NUMBER

5.7-inch operator panel with controller and digital I/O

MODULE ROLE

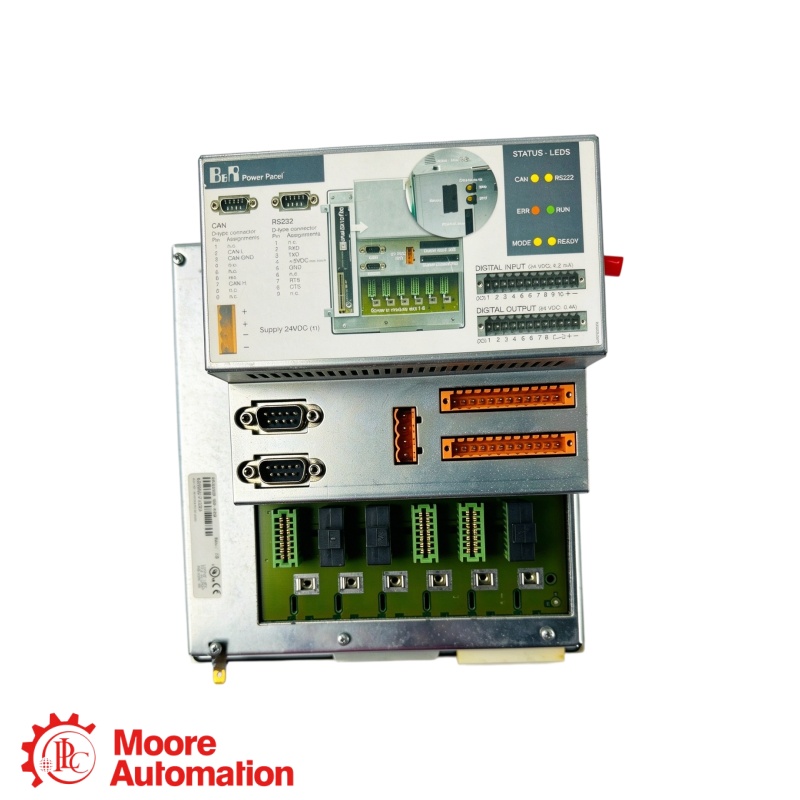

4P3040.01-490 is a B&R Power Panel PP41 combining a 5.7-inch monochrome operator display and a 2003-compatible controller. B&R specifies 10 digital inputs, 8 digital outputs, RS232 and CAN interfaces for this exact material number.
CONFIGURATION NOTE
For 4P3040.01-490, B&R specifies a 24 VDC supply, 5.7-inch QVGA display, 8 soft keys and 32 function keys. The unit has IP65 protection at the front and dimensions of 205 × 220 × 110.4 mm.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

B&R Industrial Automation ↗
PP41 POWER PANEL

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT220 mm
WIDTH205 mm
DEPTH110.4 mm
WEIGHT1.95 kg
B&R official technical data for exact material number 4P3040.01-490.
PRODUCT CONFIGURATION4P3040.01-490 integrates a 5.7-inch QVGA monochrome display and a 2003-compatible controller. Its 24 VDC design includes 10 digital inputs, 8 digital outputs, RS232 and electrically isolated CAN.
GENERAL INFORMATION−
Brand / product lineB&R Industrial Automation
Ordering number4P3040.01-490
Product typePower Panel PP41 operator panel and controller
Display5.7-inch monochrome LCD
Controller platformSystem-compatible 2003 CPU
Display resolutionQVGA 320 × 240 pixels
Supply voltage24 VDC
Digital inputs10 × 24 VDC
Digital outputs8 × 24 VDC, 0.4 A
InterfacesRS232 and isolated CAN
Display and Controller＋
Display typeMonochrome LCD, 5.7-inch diagonal
Soft keys8
Function keys32
Interfaces and I/O＋
Serial interfaceRS232, 9-pin DSUB
CAN interfaceElectrically isolated, network-capable
Digital I/O10 inputs and 8 outputs at 24 VDC
Front protectionIP65
Operating temperature0 to 50°C
Ordering Configuration＋
B&R material number 4P3040.01-490 identifies the PP41 configuration with a 5.7-inch monochrome LCD, 24 VDC supply and integrated digital I/O. B&R lists TB712 terminal blocks as separate accessories.
FAQ

Questions Buyers Ask Most

Can 4P3040.01-490 be used as a direct replacement for every PP41 variant?＋

4P3040.01-490 is the 5.7-inch monochrome PP41 with a 2003-compatible controller. Check the installed material number, display, 24 VDC supply, I/O, expansion modules and program before treating another PP41 variant as interchangeable.

Which operator and control functions does 4P3040.01-490 combine?＋

4P3040.01-490 combines a 320 × 240 monochrome display, 8 soft keys, a controller, 10 digital inputs and 8 digital outputs for local machine operation and control.

What mounting and supply checks matter for 4P3040.01-490?＋

4P3040.01-490 requires a 24 VDC supply, measures 205 × 220 × 110.4 mm and is specified for 0 to 50°C operation. IP65 applies to the front, not automatically to the entire enclosure.

How should field I/O be matched to 4P3040.01-490?＋

4P3040.01-490 has 10 sink-type 24 VDC inputs and 8 source-type 24 VDC outputs rated 0.4 A each, with 3.2 A total nominal output current. Compare load and wiring requirements with the installed design.

Which communication links should be checked when migrating to 4P3040.01-490?＋

4P3040.01-490 provides a 9-pin RS232 interface rated up to 115.2 kbit/s and an electrically isolated CAN interface. Confirm the existing cables and communication configuration rather than assuming an Ethernet connection.

What should be verified when commissioning 4P3040.01-490?＋

4P3040.01-490 should be checked against the 24 VDC supply, 320 × 240 display, installed controller program, connected I/O and RS232/CAN communication used by the machine.

Which accessories and ordering details are needed with 4P3040.01-490?＋

4P3040.01-490 is B&R material number 4P3040.01-490. B&R says TB712 terminal blocks must be ordered separately; confirm the required terminal blocks and 24 VDC power connector with the installed wiring.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete B&R material number, installed interface and I/O requirements, required terminal blocks, application details and quantity for compatibility and availability checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Official Data Sheet for
4P3040.01-490

B&R identifies 4P3040.01-490 as a PP41 Power Panel with a 5.7-inch QVGA monochrome display, 24 VDC supply, integrated 2003-compatible controller, 10 digital inputs and 8 digital outputs.

B&R PP41 Power Panel Datasheet

B&R publishes an official English datasheet for exact material number 4P3040.01-490.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Use the B&R datasheet and installed-system requirements to confirm the complete material number, power supply, interfaces, I/O and TB712 terminal blocks.

PP41 POWER PANEL SYSTEM ROLE

How 4P3040.01-490 Fits the B&R PP41 Control System

B&R Industrial Automation is the product line; PP41 identifies the Power Panel family; and 4P3040.01-490 is the complete supplied product reference that must be matched to the installed nameplate.

B&R Industrial Automation · PRODUCT LINE
PP41 display, controller and integrated I/OOPERATOR INTERFACE · CONTROLLER RELATIONSHIP
MATERIAL NUMBER

4P3040.01-490

The PP41 combines a monochrome operator display with a 2003-compatible controller and digital I/O.

SYSTEM FAMILY

PP41 · RS232 · CAN

B&R specifies RS232 and electrically isolated CAN interfaces for this exact panel configuration.

PANEL CHARACTERISTICS

5.7-inch QVGA display · 24 VDC · IP65 front

The panel supports operation from 0 to 50°C and includes 8 soft keys and 32 function keys.

Confirm the complete 4P3040.01-490 material number, terminal-block requirements, 24 VDC supply and interface needs before ordering.
APPLICATION AREAS

Application map for 4P3040.01-490

Operator InterfaceDisplays process information on a 5.7-inch QVGA monochrome LCD
Machine ControlIntegrated 2003-compatible controller supports local control functions
APPLICATION CENTER4P3040.01-490B&R PP41 Power Panel with integrated controller
Digital I/OProvides 10 digital inputs and 8 digital outputs at 24 VDC
Industrial CommunicationRS232 and isolated CAN support connected control-system communication.
