Proximity Probe

330104-00-09-10-01-05:

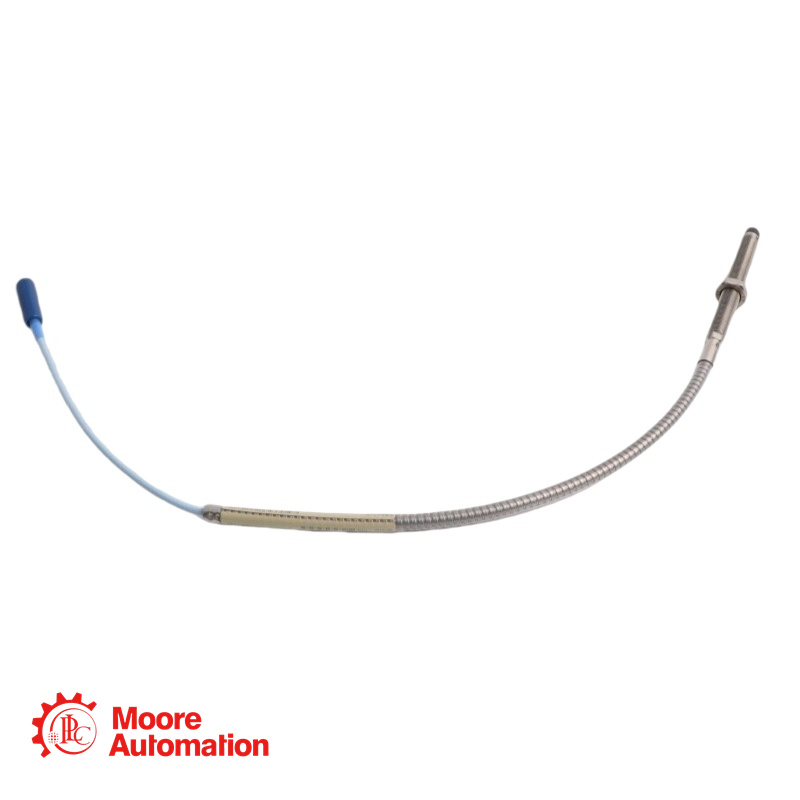

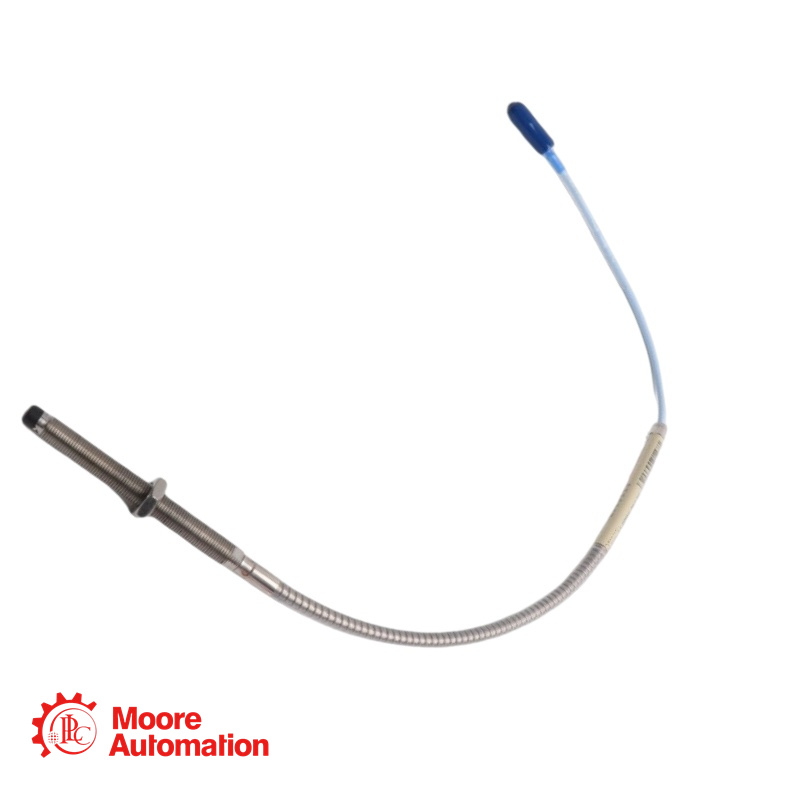

330104-00-09-10-01-05 is a 3300 XL 8 mm Proximity Probe with Metric M10 x 1 threads and stainless steel armor. It is a key component of the 3300 XL 8 mm Proximity Transducer System. The probe features a FluidLoc cable option and is certified for hazardous area installations (CSA, ATEX, IECEx).

Parameters - 330104-00-09-10-01-05

Probe Type:3300 XL 8 mm
Mounting Thread:M10 x 1 (Metric)
Armor:Yes (Flexible AISI 302/304 SST with FEP outer jacket)
Unthreaded Length:10 mm
Overall Case Length:150 mm
Total Cable Length:0.5 meter (probe only, no extension cable)
Cable Type:FluidLoc (Prevents oil/liquid leakage through cable interior)

Application Areas - 330104-00-09-10-01-05

Radial Vibration Monitoring: Steam turbines, gas turbines, centrifugal compressors, pumps, and generators.
Keyphasor (Phase Reference/Speed) Measurement
Industry Compliance & Environment: Machinery Protection Systems in the Oil & Gas, Petrochemical, and Power Generation industries.

Important Cautions - 330104-00-09-10-01-05

Imperial Thread Version: The direct imperial equivalent is 330102 (3/8-24 UNF thread with armor). A similar configuration would be 330102-00-60-05-12-05 (Note: Imperial case length 60 = 6.0 inches ≈ 150 mm).
Without FluidLoc: To order the same probe without the FluidLoc option, change option DD to 02 (Standard cable). Part number would be 330104-10-15-05-02-05.
Without Armor: To order without the stainless steel armor, use base number 330103.
