ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
330104-00-06-05-01-00น้ำหนัก :
0.2 kgมิติ :
32x30x2cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Proximity Probe
330104-00-06-05-01-00 At A Glance

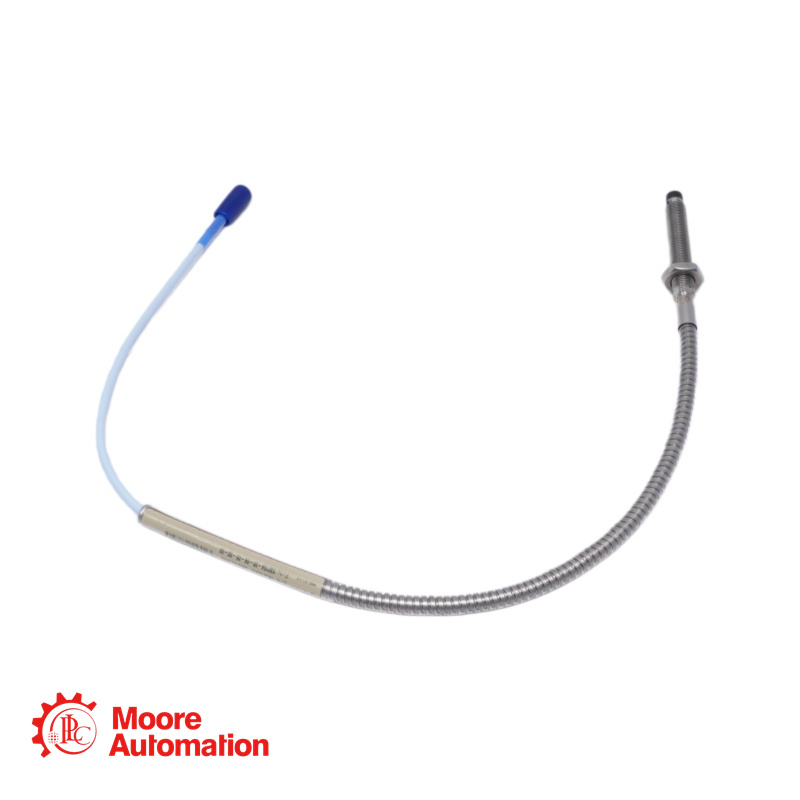

The 330104-00-06-05-01-00 is a 3300 XL 8 mm Proximity Probe with M10 x 1 threads and flexible stainless steel armor. It is part of the 3300 XL 8 mm Proximity Transducer System, which uses eddy current technology to measure static position and dynamic vibration.
Brand
Bently Nevada
Origin
USA
Product Family
3300 XL 8 mm Proximity Transducer System
Product lifecycle
Active Product
Net weight
0.2 kg
Condition
Original New
Warranty
12 Months
330104-00-06-05-01-00 Specification
|
Parameter |
Specification |
|
Base Model |
330104 |
|
Probe Type |
3300 XL 8 mm Proximity Probe, M10 x 1 thread, with armor |
|
Unthreaded Length (Option A) |
00 mm (00) |
|
Overall Case Length (Option B) |
60 mm (06) |
|
Total Length (Option C) |
5.0 meters (16.4 feet) |
|
Connector and Cable Type (Option D) |
01: Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval (Option E) |
00: Not required |
|
Linear Range |
2 mm (80 mils) from approximately 0.25 to 2.3 mm (10 to 90 mils) |
|
Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) ± 6.5% including interchangeability error over the 80 mil linear range from 0°C to +45°C (+32°F to +113°F) |
|
Nominal Probe DC Resistance |
8.73 Ω ± 0.50 Ω (for 5.0 meter probe length) |
|
Recommended Gap Setting for Radial Vibration |
-9 Vdc [approximately 1.27 mm (50 mils)] |
▶Compressor Vibration Monitoring: Provides reliable shaft vibration measurement on centrifugal and axial compressors, particularly those operating in hazardous areas where ATEX/IECEx approvals are required.
▶Steam Turbine Thrust Position Monitoring: Monitors axial shaft position to detect thrust bearing wear, helping prevent catastrophic turbine damage.
▶Overspeed Protection Systems: Used as part of tachometer or overspeed detection systems
▶Generator Bearing Monitoring: The stainless steel armor provides additional cable protection in generator applications where cables may be exposed to high temperatures or physical abrasion.
▶Retrofit Installations: With its M10 x 1 thread and 5.0 meter total length, this probe is compatible with existing 3300 XL systems and can replace non-XL 3300 series 5 mm or 8 mm probes while maintaining interchangeability.
|
|
|
|
|
|
|
Q: What does the 00 in Option A (Unthreaded Length) indicate?
▶A: The 00 indicates an unthreaded length of 0 mm. This means the threads extend all the way to the probe tip, with no smooth, unthreaded section between the tip and the start of the threads.
Q: What is the overall case length for this 330104-00-06-05-01-00 probe?
▶A: The overall case length (Option B) is 60 mm (06). This is the minimum case length available for M10 x 1 threaded probes, as the minimum case length is 20 mm.
Q: Does this 330104-00-06-05-01-00 probe include a connector protector?
▶A: No. Option D 01 indicates a miniature coaxial ClickLoc connector with standard cable and no connector protector.
Q: What agency approvals does this 330104-00-06-05-01-00 probe have?
▶A: Agency Approval Option 00 means not required. This probe does not carry CSA, ATEX, or IECEx hazardous area certifications and is intended for use in non-hazardous (general purpose) locations.
Q: Is this 330104-00-06-05-01-00 probe compatible with the 9 meter Proximitor sensor?
▶A: No. The 05 in Option C indicates a 5.0 meter probe.
