 /Bently Nevada 991-06-XX-01-00 164113-01 Thrust Transmitter

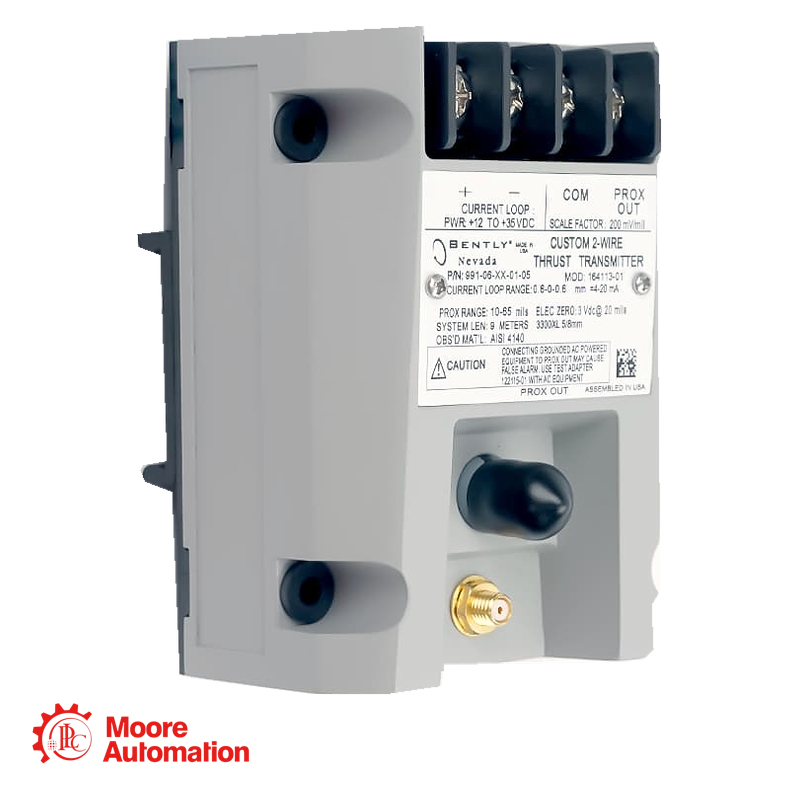

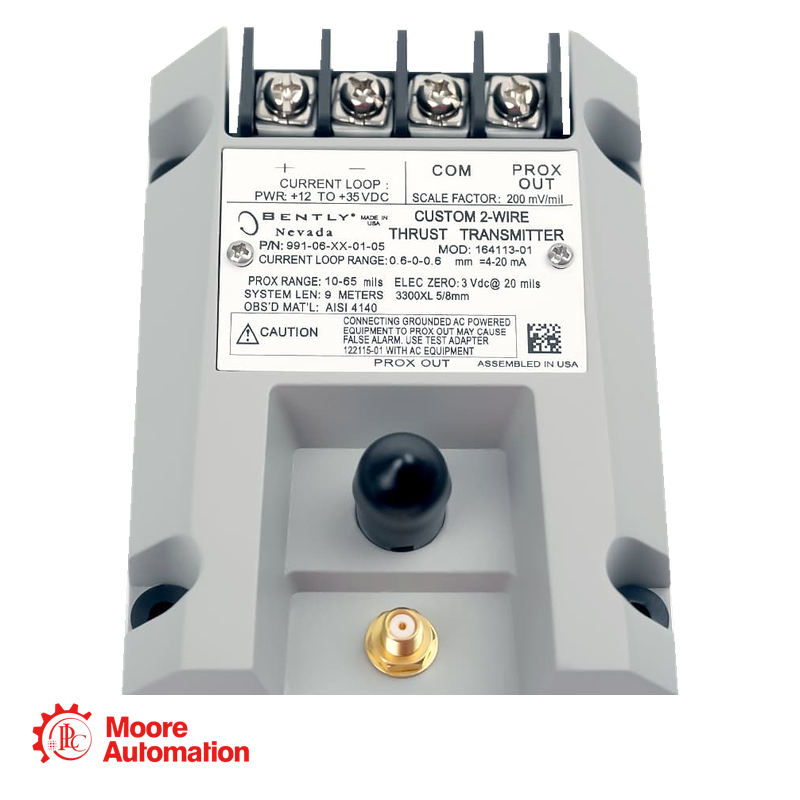

Bently Nevada 991-06-XX-01-00 164113-01 Thrust Transmitter
Bently Nevada 991-06-XX-01-00 164113-01 Thrust Transmitter
Bently Nevada 991-06-XX-01-00 164113-01 Thrust Transmitter

Bently Nevada 991-06-XX-01-00 164113-01 Thrust Transmitter

991 SERIES · THRUST TRANSMITTER

991-06-XX-01-00

991-06-XX-01-00 / 164113-01 — A Bently Nevada 991 Thrust Transmitter with 0.6-0-0.6 mm full scale, XX system-length code, 35 mm DIN rail clips, agency approval code 00, for which approval is not required, and additional identifier 164113-01.

FULL SCALE0.6-0-0.6 MM
SYSTEM LENGTHXX · CONFIRM
MOUNTING35 MM DIN RAIL
APPROVALCODE 00 · NOT REQUIRED
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 991 THRUST TRANSMITTER
991 THRUST TRANSMITTER

991-06-XX-01-00 / 164113-01

0.6-0-0.6 mm full scale · XX system-length code · 35 mm DIN rail clips · Approval not required

991 Thrust Transmitter

THRUST TRANSMITTER ROLE
991-06-XX-01-00 / 164113-01 — This two-wire, loop-powered 990 transmitter accepts one matched 3300 NSv proximity probe and extension cable, then provides a proportional 4 to 20 mA axial displacement signal for a machinery control system.
CONFIGURATION NOTE
991 identifies the thrust transmitter; 06 specifies 0.6-0-0.6 mm full scale, XX is the supplied system-length code and must be confirmed for this modification, 01 specifies 35 mm DIN rail clips, and 00 specifies that agency approval is not required. The additional identifier is 164113-01.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

06
Full-scale option0.6-0-0.6 mm
XX
System-length codeConfirm exact configured length
01
Mounting option35 mm DIN rail clips
00
Agency approvalNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
991 THRUST TRANSMITTER

Engineering data at a glance

Click “+” to expand more specifications.

FULL SCALE0.6-0-0.6 MM
SYSTEM LENGTHXX · CONFIRM
MOUNTING35 MM DIN RAIL
APPROVALCODE 00 · NOT REQUIRED
Configuration from manufacturer ordering data.
Configuration check Confirm the complete 991-06-XX-01-00 order code, additional identifier 164113-01, exact configured system length, mounting option, approval requirement and matched 3300 NSv components before ordering.
General Information −
BrandBently Nevada
Part number991-06-XX-01-00
Product type991 Thrust Transmitter
Product family991 Series
Additional identifier164113-01
Full-scale range0.6-0-0.6 mm
Order Configuration ＋
System-length codeXX · confirm exact configured length
Mounting option35 mm DIN rail clips
Agency approval00 · Not required
Electrical Interface ＋
Power requirement+12 to +35 Vdc at transmitter terminal
Signal output4 to 20 mAdc
Loop configurationTwo-wire, loop-powered
Compatible inputOne 3300 NSv proximity probe and extension cable
Additional identifier164113-01 · verify against nameplate documentation
Performance and Limits ＋
The 991 provides a proportional 4 to 20 mA output over its configured full-scale range. Published specifications include ±1.5% typical loop accuracy, a 0.25 to 1.65 mm PROX OUT linear range, and transmitter operating temperature from -35°C to +85°C.
Source: Bently Nevada 991 Thrust Transmitter Datasheet, Part Number 141618, Rev. R. Published family data supports the 991 series; the public ordering table does not decode the XX system-length placeholder or additional identifier 164113-01, so confirm both against the product nameplate or manufacturer documentation.
FAQ

Questions Buyers Ask Most

What is 991-06-XX-01-00 / 164113-01 used for?＋

991-06-XX-01-00 / 164113-01 is a Bently Nevada 991 thrust transmitter configuration with 0.6-0-0.6 mm full scale, 35 mm DIN rail clips, agency approval code 00, for which approval is not required, and an XX system-length code that requires confirmation.

What does the 991-06-XX-01-00 code specify?＋

For 991-06-XX-01-00, 991 identifies the transmitter; 06 is the 0.6-0-0.6 mm full-scale option, XX is the supplied system-length code, 01 is 35 mm DIN rail mounting, and 00 means agency approval is not required.

Can 991-06-XX-01-00 / 164113-01 be substituted with a similar part number?＋

Do not substitute 991-06-XX-01-00 / 164113-01 by appearance or family name alone. Compare the full-scale range, exact system length, mounting option, approval requirement, modification identifier and matched 3300 NSv components.

What do the 06, XX, 01 and 00 options on 991-06-XX-01-00 specify?＋

991-06-XX-01-00 uses 0.6-0-0.6 mm full scale, a supplied XX system-length code that must be confirmed, 35 mm DIN rail clips and agency approval code 00, for which approval is not required.

What should I provide for a 991-06-XX-01-00 / 164113-01 quotation?＋

Send the complete 991-06-XX-01-00 and 164113-01 nameplate, quantity, exact matched probe and cable details, required approvals, and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete transmitter nameplate, including 991-06-XX-01-00 and 164113-01, plus matched probe/cable details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
991-06-XX-01-00 / 164113-01

Official manufacturer documentation for the Bently Nevada 991 Thrust Transmitter and its matched 3300 NSv proximity transducer system.

Official manufacturer datasheet

Bently Nevada Datasheet 141618 identifies the 991 Thrust Transmitter and its public ordering options. For this supplied identity, 06 specifies 0.6-0-0.6 mm full scale, 01 specifies 35 mm DIN rail clips, and 00 means agency approval is not required. Confirm the XX system-length code and additional identifier 164113-01 from the nameplate or manufacturer documentation.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and published ordering-code meanings use Bently Nevada 991 Thrust Transmitter Datasheet, Part Number 141618, Rev. R. The public ordering table does not decode XX or additional identifier 164113-01.

991 THRUST TRANSMITTER CONNECTION

How 991-06-XX-01-00 / 164113-01 Fits into the 991 Thrust Transmitter

Bently Nevada is the manufacturer. 991-06-XX-01-00 / 164113-01 is a two-wire, loop-powered 991 thrust transmitter configuration with 0.6-0-0.6 mm full scale and 35 mm DIN rail clips. It accepts the matched 3300 NSv proximity probe and extension cable and provides a proportional 4 to 20 mA axial displacement signal.

Bently Nevada · BRAND
Bently Nevada 991 SeriesPRODUCT FAMILY · THRUST TRANSMITTER
MEASUREMENT INPUT

Matched 3300 NSv System

One matched 3300 NSv proximity probe and extension cable provide the vibration input to the 990 transmitter.

TRANSMITTER MOUNT

35 mm DIN Rail Clips

The 01 option specifies 35 mm DIN rail clips for this 991 configuration.

SYSTEM LENGTH CODE

XX · Confirm

The public 991 ordering table lists 50 and 70 system-length options; confirm the supplied XX code and exact configured system length for identifier 164113-01.

System relationship: use the transmitter only with the matched 3300 NSv probe and extension cable for the confirmed system length.
APPLICATION AREAS

Functions and integration points for 991-06-XX-01-00 / 164113-01

Loop-Powered OutputProvides a proportional 4 to 20 mA axial displacement signal to compatible plant monitoring and control systems.
Diagnostic PROX OUTProvides a non-isolated dynamic vibration and gap-voltage signal for diagnostics; use the manufacturer-recommended isolation arrangement with grounded AC-powered test equipment.
APPLICATION CENTER 991-06-XX-01-00 / 164113-01 991 Thrust Transmitter
Fault-Aware Signal PathThe Not OK/signal-defeat circuit drives the signal below 3.6 mA when a Not OK condition occurs.
Matched Machinery MonitoringSupports axial position measurement on compatible machinery when installed with the correct matched 3300 NSv probe and extension cable.
