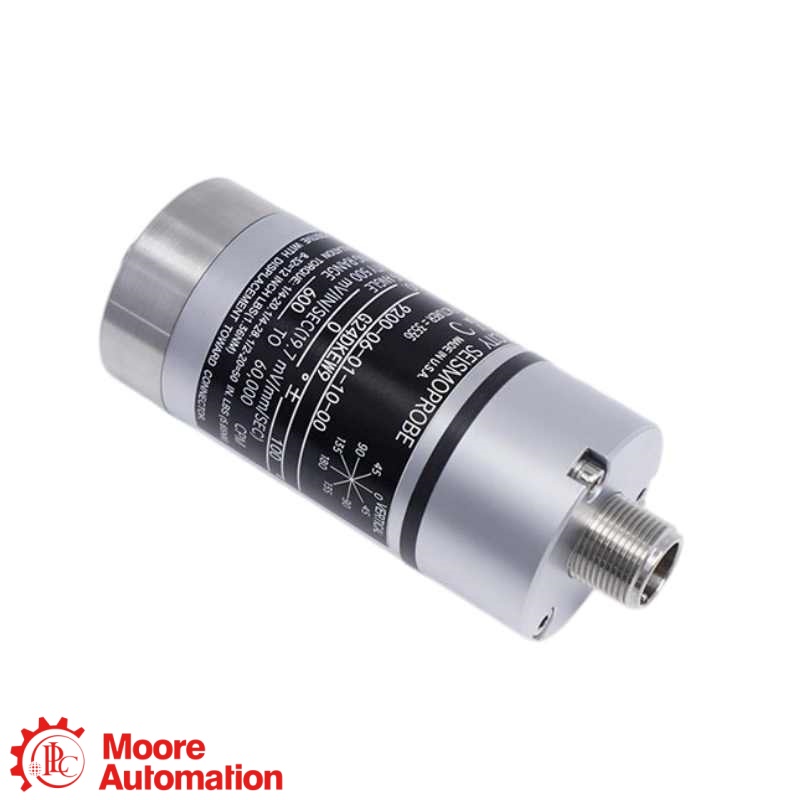

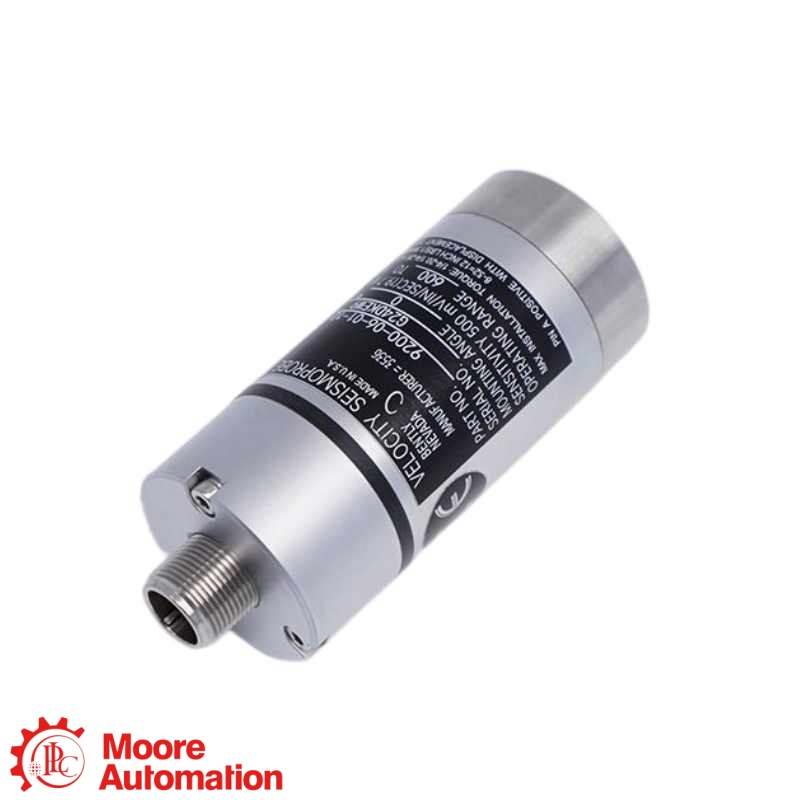

Bently Nevada 9200-06-01-11-04 Two-Wire Seismoprobe Velocity Transducer
Bently Nevada 9200-06-01-11-04 Two-Wire Seismoprobe Velocity Transducer
Bently Nevada 9200-06-01-11-04 Two-Wire Seismoprobe Velocity Transducer

Bently Nevada 9200-06-01-11-04 Two-Wire Seismoprobe Velocity Transducer

BENTLY NEVADA · TWO-WIRE SEISMOPROBE VELOCITY TRANSDUCER

9200-06-01-11-04

The 9200-06-01-11-04 is a two-wire Seismoprobe velocity transducer with 0° orientation, 10 Hz minimum operating frequency, top connector, isolated M10 × 1 circular base and ATEX/IECEx approval option.

SIGNALVelocity
ORIENTATION0°
MIN FREQUENCY10 Hz
BASEM10 × 1
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗TWO-WIRE SEISMOPROBE VELOCITY TRANSDUCER
SEISMOPROBE VELOCITY MEASUREMENT SYSTEM

9200-06-01-11-04

9200

0° orientation · 10 Hz minimum · top connector · M10 × 1 isolated base

PRODUCT ROLE

9200-06-01-11-04 is a two-wire moving-coil velocity transducer for continuous or periodic measurement of absolute bearing-housing, casing or structural vibration.

CONFIGURATION NOTE

For 9200-06-01-11-04, 06 specifies 0° orientation and 10 Hz minimum frequency, 01 specifies a top-mount connector without cable, 11 specifies an isolated circular M10 × 1 base and 04 specifies ATEX/IECEx approvals.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 9200-06-01-11-04 reference is structured

9200
Transducer familyTwo-wire Seismoprobe velocity transducer
06
Orientation / frequency0° · 10 Hz minimum
01
ConnectionTop-mount connector · no cable
11
Mounting baseIsolated circular M10 × 1
04
Approval optionATEX / IECEx
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 141626 ↗
9200 · TWO-WIRE SEISMOPROBE VELOCITY TRANSDUCER

Engineering data at a glance

Review the exact configuration before replacement.

SIGNALVelocity
ORIENTATION0°
MIN FREQUENCY10 Hz
BASEM10 × 1
Baker Hughes Datasheet 141626 states that approval option 04 requires an isolated mounting base; base option 11 satisfies that ordering restriction.
General Information ＋
ManufacturerBently Nevada
Model9200-06-01-11-04
Product typeTwo-wire velocity transducer
MeasurementAbsolute vibration velocity
Typical massApproximately 300 g
ORDER NUMBER CHECK ＋
Family9200
Orientation / minimum frequency06 · 0° / 10 Hz
Electrical connection01 · top connector, no cable
Mounting base11 · isolated circular M10 × 1
Approvals04 · ATEX / IECEx
MECHANICAL & ENVIRONMENTAL ＋
Typical height102 mm
Typical diameter41 mm
Humidity95% noncondensing
MountingRigid, clean surface with specified isolated M10 × 1 base
INSTALLATION & COMPATIBILITY ＋
Monitor inputMust accept the 9200 two-wire velocity signal
CableSelect a compatible cable for the top connector
OrientationInstall according to the ordered 0° orientation
CommissioningVerify polarity, vibration reading and alarm configuration
FAQ

Questions Buyers Ask Most

What is 9200-06-01-11-04 used for?＋
9200-06-01-11-04 is a two-wire moving-coil velocity transducer used to measure absolute vibration on bearing housings, machine casings or structures.
What does code 06 mean in 9200-06-01-11-04?＋
Code 06 specifies 0° transducer orientation and a 10 Hz minimum operating frequency. The mounting direction and expected machine frequency content must match this selection.
Does 9200-06-01-11-04 include an interconnect cable?＋
No. Connection option 01 specifies a top-mounted connector with no cable, so a compatible cable must be ordered or verified separately.
Which mounting base is supplied with 9200-06-01-11-04?＋
9200-06-01-11-04 uses option 11, an isolated circular base with an M10 × 1 mounting thread. The machine mounting point must match this thread and provide a rigid surface.
Why is the isolated base important for 9200-06-01-11-04?＋
The isolated base helps prevent unwanted electrical ground paths, and the official ordering restrictions require an isolated base for approval option 04.
Can 9200-06-01-11-04 replace another 9200 transducer?＋
Replacement is appropriate only when orientation, minimum frequency, connector, mounting base, approvals, monitor input, cable and configured alarm scaling match the existing installation.
What information should be included in a 9200-06-01-11-04 inquiry?＋
Provide the complete code, quantity, nameplate photo, machine measurement point, mounting orientation, expected frequency range, connector cable, monitor input, hazardous-area requirement and delivery date.
CONTACT PRODUCT SPECIALIST

Confirm your 9200-06-01-11-04 configuration with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

OFFICIAL DATASHEET

Manuals and Official References for 9200-06-01-11-04

Official Baker Hughes manufacturer-reference information for the 9200-06-01-11-04 Seismoprobe velocity transducer.

Two-Wire Seismoprobe Velocity Transducer

Baker Hughes Datasheet 141626 documents the 9200 ordering structure, mechanical data and approval restrictions represented by 9200-06-01-11-04.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate photos and your technical or purchasing question.

Source: Baker Hughes 9200 and 74712 Seismoprobe Velocity Transducers Datasheet 141626 Rev. V.
SEISMOPROBE VELOCITY MEASUREMENT SYSTEM RELATIONSHIP

How 9200-06-01-11-04 Fits into a Vibration Measurement Chain

Bently Nevada is the brand; the 9200 Seismoprobe Velocity Transducer System is the measurement family; and 9200-06-01-11-04 is the complete velocity-transducer configuration.

Bently Nevada · BRAND
9200 Seismoprobe SystemPRODUCT FAMILY · MEASUREMENT
SENSING COMPONENT

Velocity Transducer

The configured two-wire moving-coil transducer measures absolute vibration on bearing housings, machine casings or structures.

ELECTRICAL CONNECTION

Top Connector and Cable

Connection option 01 provides a top connector without cable, so the mating cable and polarity must match the installed channel.

SIGNAL CONDITIONING

Compatible Monitor Input

The monitor input must accept the 9200 two-wire velocity signal and use scaling and alarm settings suitable for the measurement point.

System relationship: the 0° orientation, 10 Hz minimum frequency, top connection, isolated M10 × 1 base, cable, monitor input and approval requirements must all match.
APPLICATION AREAS

Application mind map for the 9200-06-01-11-04 Velocity Transducer

Bearing-Housing VibrationMeasures absolute casing or bearing-housing vibration velocity
Verified InstallationConfirm the mounting orientation, isolated base, connector and cable
APPLICATION CENTER9200-06-01-11-04Two-wire velocity transducer
Machine Casing MonitoringSupports continuous or periodic vibration checks on rotating equipment
System ReplacementRestore matching signal input, frequency range, mounting and approval compatibility
