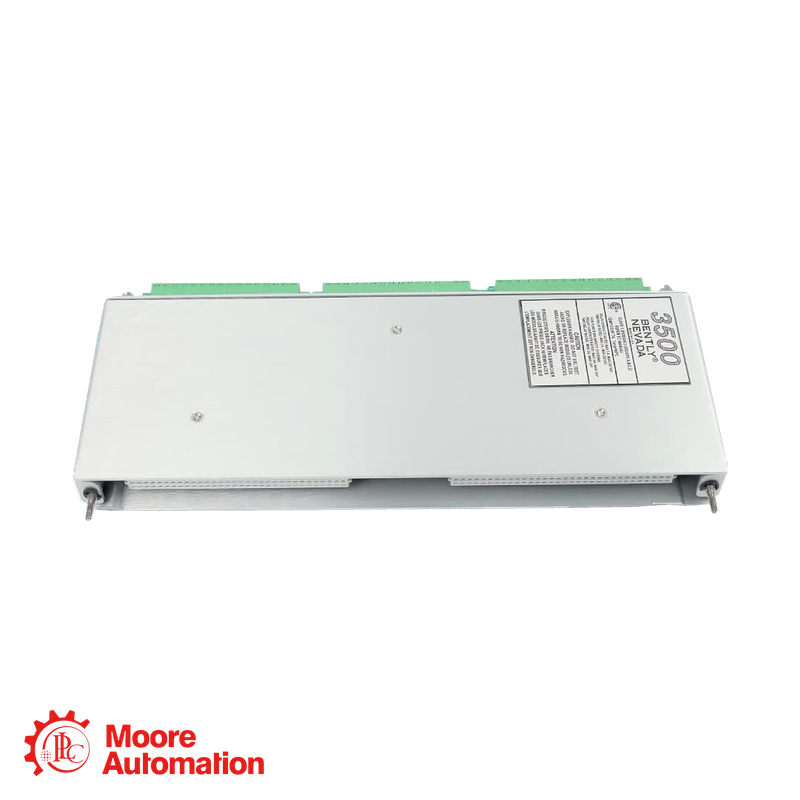

Bently Nevada 3500/33-03-00 149992-03 Low-Current 16-Channel Relay Output Module
Bently Nevada 3500/33-03-00 149992-03 Low-Current 16-Channel Relay Output Module
Bently Nevada 3500/33-03-00 149992-03 Low-Current 16-Channel Relay Output Module

Bently Nevada 3500/33-03-00 149992-03 Low-Current 16-Channel Relay Output Module

3500 SYSTEM · LOW-CURRENT RELAY OUTPUT

3500/33-03-00 149992-03

3500/33-03-00 149992-03 — a Bently Nevada 3500/33 low-current relay-output configuration with 16 SPDT gold-contact outputs for low-level field circuits.

RELAY OUTPUTS16
CONTACTSSPDT GOLD
MINIMUM LOAD1 mA @ 1 Vdc
MAXIMUM LOAD100 mA @ 48 Vdc
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3500/33 LOW-CURRENT RELAY OUTPUT
3500/33 16-CHANNEL RELAY MODULE

3500/33-03-00 149992-03

16 outputs · Gold contacts · Low-current field circuits

3500/33 16-Channel Relay Module

3500 RACK LOW-CURRENT RELAY OUTPUTS
3500/33-03-00 149992-03 — A Bently Nevada 3500/33 low-current relay-output configuration with 16 SPDT gold-contact outputs for low-level field circuits.
CONFIGURATION NOTE
3500/33 identifies the 16-Channel Relay Module family; 03 selects the low-current output module, 00 selects no approval, and 149992-03 is the low-current output-module reference.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

3500/33
Product family16-Channel Relay Module
03
Output optionLow-current gold-contact relay output
00
Approval optionNo approval
149992-03
Output referenceLow-current relay output module
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3500/33 16-CHANNEL RELAY MODULE

Engineering data at a glance

Click “+” to expand more specifications.

RELAY OUTPUTS16
CONTACTSSPDT GOLD
MINIMUM LOAD1 mA @ 1 Vdc
MAXIMUM LOAD100 mA @ 48 Vdc
Exact-model configuration and engineering data.
Configuration note 3500/33 identifies the 16-Channel Relay Module family; 03 selects the low-current output module, 00 selects no approval, and 149992-03 is the low-current output-module reference.
General Information −
BrandBently Nevada
Part number3500/33-03-00 149992-03
Product typeLow-Current 16-Channel Relay Output Module
Product family3500 Machinery Protection System
Relay outputs16 SPDT outputs
Contact materialGold-plated contacts
Electrical Contact Ratings ＋
Minimum load1 mA at 1 Vdc
Maximum load100 mA at 48 Vdc
Contact arrangementSingle-pole, double-throw (SPDT)
Rack and Wiring Context ＋
Output configurationTwo half-height rear relay modules
Field-circuit useLow-current switching circuits
Control sourceProgrammable 3500 rack voting logic
Application Boundary ＋
Use this 03 low-current output option only where the field circuit remains within the documented 1 mA at 1 Vdc minimum and 100 mA at 48 Vdc maximum. Verify load characteristics, wiring and contact wetting before commissioning.
FAQ

Questions Buyers Ask Most

Which applications require 3500/33-03-00 149992-03?＋

3500/33-03-00 149992-03 is intended for low-current field circuits that need 16 independently controlled SPDT relay outputs with gold-plated contacts.

What electrical limits apply to 3500/33-03-00 149992-03?＋

The documented low-current contact range for 3500/33-03-00 149992-03 is 1 mA at 1 Vdc minimum and 100 mA at 48 Vdc maximum; verify the connected load remains inside those limits.

How is 3500/33-03-00 149992-03 installed in the rack?＋

3500/33-03-00 149992-03 is used with the 3500/33 front relay module and two half-height rear relay modules. Confirm rear-module references and terminal assignments before wiring.

What should be tested when commissioning 3500/33-03-00 149992-03?＋

Commissioning 3500/33-03-00 149992-03 should include channel-by-channel voting-logic checks, SPDT contact verification, field-load measurement and confirmation that gold contacts switch the actual low-current circuit reliably.

What ordering data should accompany a quotation for 3500/33-03-00 149992-03?＋

For 3500/33-03-00 149992-03, provide the full order number, quantity, 3500/33 front-module reference, rear-slot arrangement, field voltage/current and required approval status.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 3500/33-03-00 149992-03 label, rack configuration, transducer or field-circuit details and site approval requirement for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
3500/33-03-00 149992-03

Official manufacturer documentation for the 3500/33 16-Channel Relay Module and the displayed configuration fields.

Official manufacturer datasheet

Bently Nevada Datasheet 162301 documents the 3500/33 16-Channel Relay Module, the 03 low-current output option, 00 no-approval option and 149992-03 low-current relay output-module reference.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3500 SYSTEM SIGNAL RELATIONSHIP

How 3500/33-03-00 149992-03 Fits into the 3500 Machinery Protection System

Bently Nevada is the manufacturer. 3500/33-03-00 149992-03 combines the 3500/33 relay-control function with the 03 low-current rear-output configuration. Sixteen independently programmed voting channels drive SPDT gold-contact field outputs.

Bently Nevada · BRAND
Bently Nevada 3500 SystemPRODUCT FAMILY · MACHINERY PROTECTION SYSTEM
ALARM SOURCES

3500 Rack Alarm States

Programmed monitor alarm states provide the logical inputs to the relay channels.

VOTING LOGIC

Independent per Output

Each relay output uses its own configured voting expression.

FIELD OUTPUTS

Low-Current Gold Contacts

The 03 rear modules switch documented low-level field circuits.

System relationship: 3500 rack alarm sources feed sixteen programmable voting channels, which drive low-current SPDT gold-contact outputs through the 03 rear modules.
APPLICATION AREAS

Functions and application roles for 3500/33-03-00 149992-03

Low-Current AnnunciationSwitches low-level annunciator and interface circuits within the documented load range.
Control-System InterfacingProvides isolated relay decisions to low-current control or monitoring inputs.
APPLICATION CENTER 3500/33-03-00 149992-03 3500/33 16-Channel Relay Module
Programmable VotingApplies independent rack voting logic to each of the 16 outputs.
Commissioning ProofSupports channel-by-channel contact and field-load verification.
