The Bently Nevada 3500/22M-01-01-00 is a Standard Transient Data Interface (TDI) for the 3500 Machinery Protection System
ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
3500/22M-01-01-00น้ำหนัก :
1.11 kgมิติ :
24.18 × 2.44 × 24.13 cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Standard Transient Data Interface Module
|
3500/22M-01-01-00 |
Contact |
|
Mobile / WhatsApp |
|
|
Email |
Product Overview

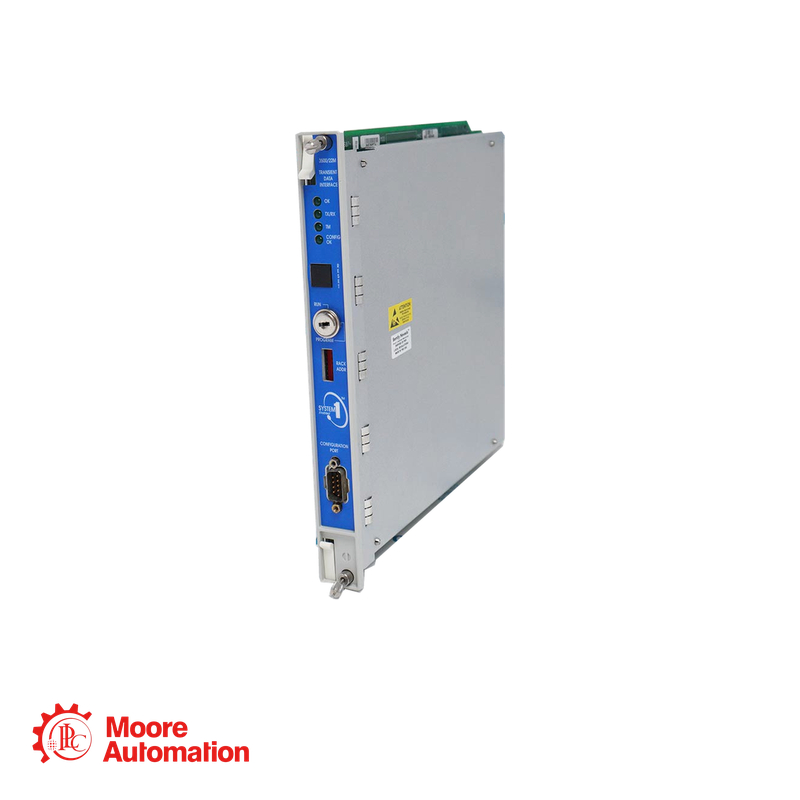

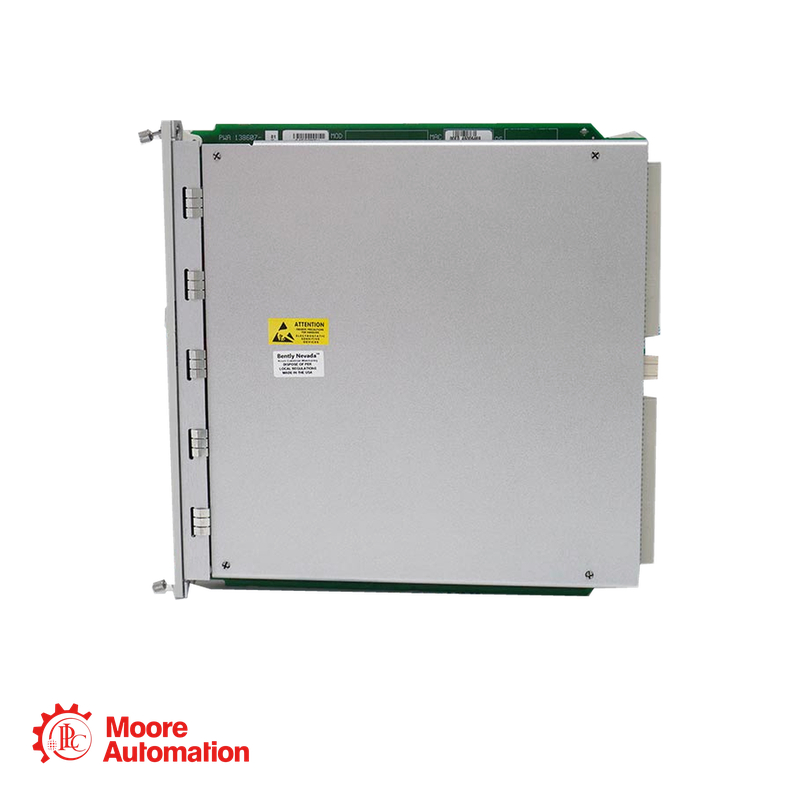

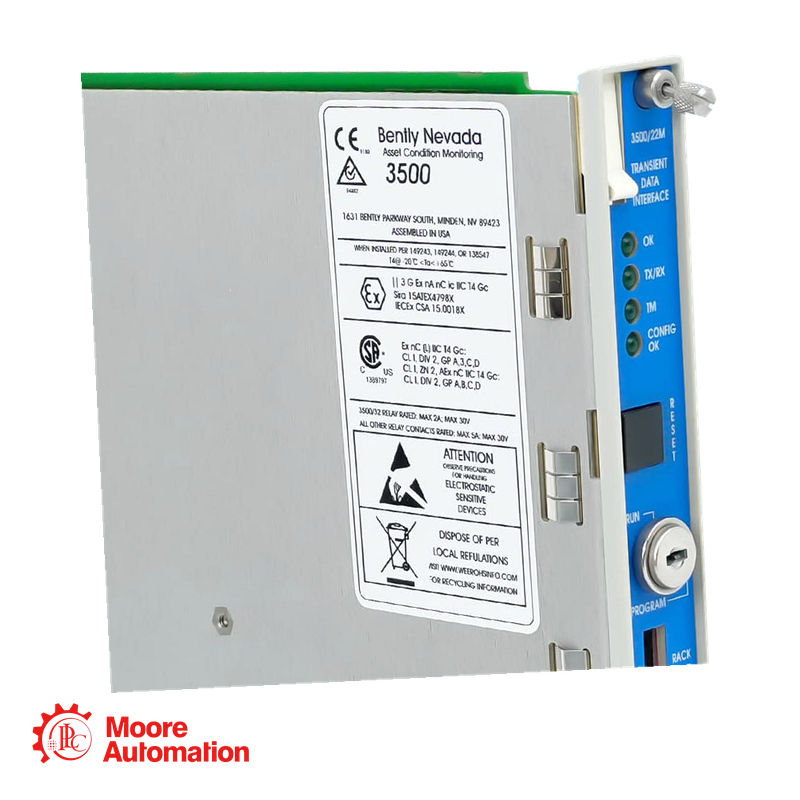

The Bently Nevada 3500/22M-01-01-00 is a Standard Transient Data Interface (TDI) for the 3500 Machinery Protection System. It combines the rack-interface role of a 3500/20 Rack Interface Module with continuous machinery-data collection for compatible configuration and condition-monitoring software. This configuration uses a 10Base-T/100Base-TX Ethernet I/O module for copper-network communication. Installed in Slot 1 beside the rack power supplies, it works with compatible 3500 M-series monitor modules to collect static values and waveform-related machinery data.
Order Number Breakdown
Position
Code
Description
Product Series
3500/22M
Bently Nevada 3500/22M Transient Data Interface module.
TDI Type
1
Standard TDI for standard monitoring applications.
I/O Module Type
1
10Base-T/100Base-TX Ethernet.
Agency Approval Option
0
None.
Technical Information
Manufacturer: Bently Nevada
Product Line: 3500 Machinery Protection System
Ordering Number: 3500/22M-01-01-00
Product Type: Standard Transient Data Interface (TDI)
Ethernet Standard: IEEE 802.3
Ethernet Connector: RJ-45
Maximum Ethernet Cable Length: 100 m (328 ft)
Maximum USB Cable Length: 5 m (16.4 ft)
Power Consumption: 10.5 W
Compatible Monitor Family: 3500 M-series monitor modules
Operating Temperature: -30°C to +65°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95%, non-condensing
Benefits&Features
Feature
Benefit
Standard TDI design
Combines rack-interface functions with machinery-data collection capability.
10Base-T/100Base-TX Ethernet
Provides autosensing copper Ethernet communication for host software connectivity.
RJ-45 network connection
Supports standard Ethernet cabling for rack communication and data transfer.
Static data capture
Collects monitored static values as a standard function.
Dynamic data capability
Supports dynamic and high-resolution transient waveform collection with a Dynamic Data Enabling Disk.
M-series monitor integration
Interfaces with compatible Bently Nevada 3500 M-series monitor modules.
Slot 1 installation
Occupies the dedicated rack position beside the power supplies.
Independent protection operation
Supports communication and diagnostics without affecting the critical machinery-protection path.
Application Areas
• Central data interface for Bently Nevada 3500 monitoring racks
• Ethernet communication with configuration and condition-monitoring software
• Machinery condition monitoring and diagnostic data collection
• Steady-state and transient waveform acquisition
• Rotating-equipment monitoring systems using compatible 3500 M-series monitors
Frequently Asked Questions
1. What is the function of the 3500/22M-01-01-00?
It is a Standard Transient Data Interface that combines rack-interface functions with machinery-data collection for a Bently Nevada 3500 monitoring rack.
2. Can the TDI collect waveform data?
Static data capture is standard. Dynamic and high-resolution transient waveform collection is available when the appropriate Dynamic Data Enabling Disk is used.
3. Where is the TDI installed in the 3500 rack?
The TDI occupies Slot 1, adjacent to the rack power supplies.
