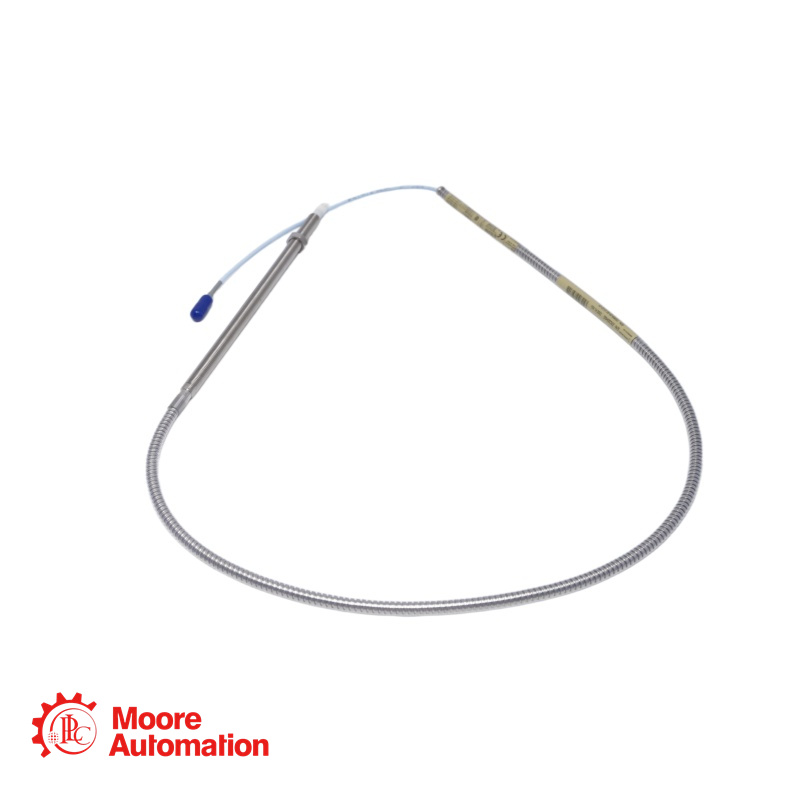

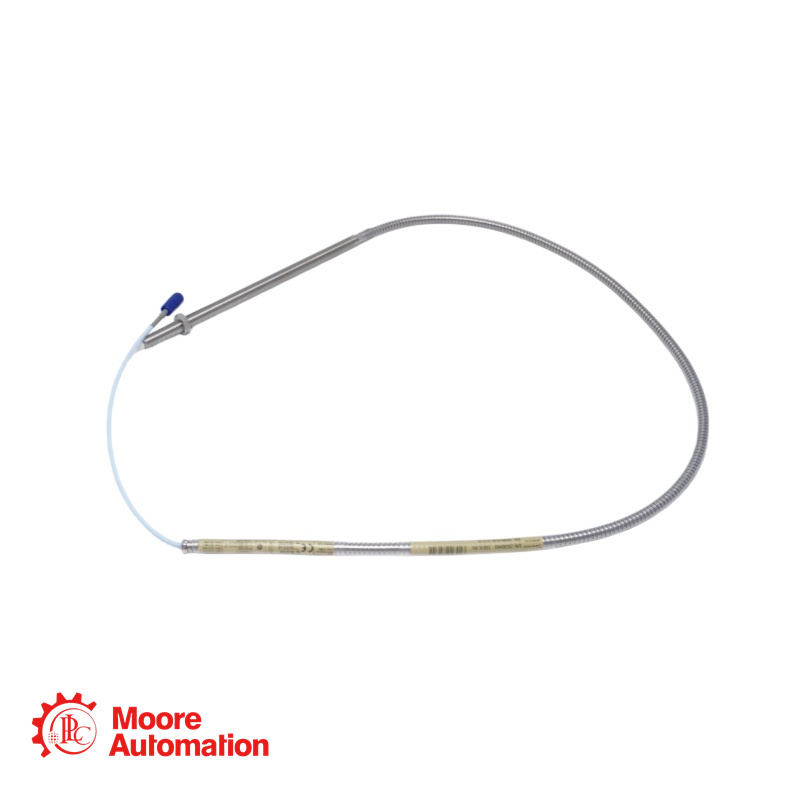

Bently Nevada 330909-10-99-10-11-CN NSv Proximity Probe

CONTACT US TO GET 330909-10-99-10-11-CN'S PRICE

330909-10-99-10-11-CN DESCRIPTION

330909-10-99-10-11-CN FEATURES

❯ Designed for Tight Spaces: Ideal for machines with counterbore, side-view, or rear-view restrictions, such as centrifugal air compressors, refrigeration compressors, and process gas compressors.
❯ Small Target Capability: Suitable for measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in) .
❯ Enhanced Chemical Resistance: The NSv probe offers increased chemical resistance compared to the previous 3300 RAM probe, making it suitable for many process compressor applications.
❯ Robust Mechanical Design: Features patented TiLoc molding for a robust bond between the probe tip and body, and patented CableLoc design providing 220 N (50 lb) of pull strength .
❯ Secure Connections: Equipped with gold-plated brass ClickLoc connectors that lock into place to prevent loosening from vibration.

330909-10-99-10-11-CN SPECIFICATIONS

330909-10-99-10-11-CN FREQUENTLY ASKED QUESTIONS

330909: Base model - 3300 NSv Probe, 3/8-24 UNF thread, with armor .
10: Unthreaded length of 1.0 inch .
99: Overall case length of 9.9 inches (maximum) .
10: Total cable length of 1.0 meter .
11: Connector type - miniature coaxial ClickLoc™ connector with connector protector and FluidLoc cable .
CN: Agency approval option - China specific approval

※Why does this 330909-10-99-10-11-CN probe have both armor and a connector protector?

These provide different levels of protection. The stainless steel armor protects the cable itself from mechanical abrasion and damage along its length. The connector protector specifically seals the connection point between the probe and extension cable, preventing moisture, oil, and other contaminants from entering the connector and degrading the signal.

※What is the correct gap setting for this 330909-10-99-10-11-CN probe?

The recommended gap setting is 1.0 mm (40 mils). The linear range extends from approximately 0.25 mm to 1.75 mm (10 to 70 mils) from the target.
