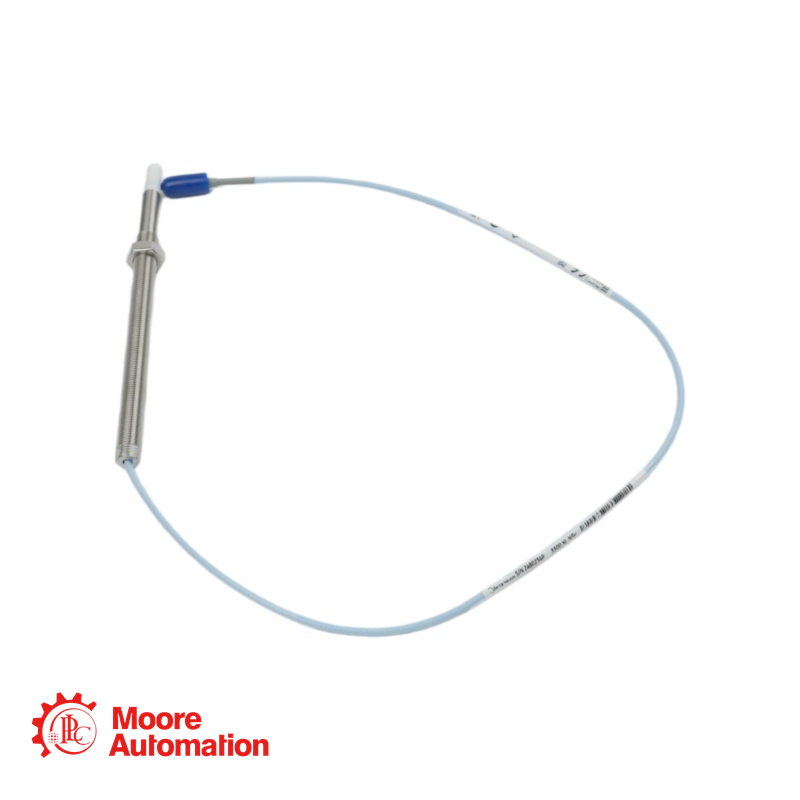

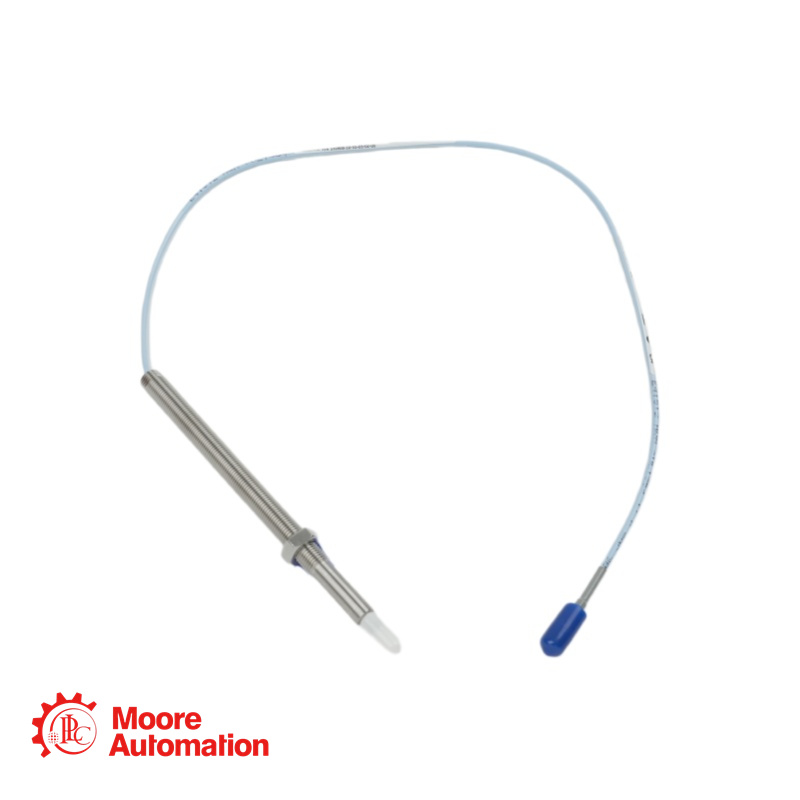

Bently Nevada 330908-12-31-10-02-00 NSv Proximity Probe

CONTACT US TO GET 330908-12-31-10-02-00'S PRICE

330908-12-31-10-02-00 DESCRIPTION

330908-12-31-10-02-00 FEATURES

❯ Designed for Tight Spaces: Ideal for machines with counterbore, side-view, or rear-view restrictions, such as centrifugal air compressors, refrigeration compressors, and process gas compressors.
❯ Small Target Capability: Suitable for measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in) .
❯ Enhanced Chemical Resistance: The NSv probe offers increased chemical resistance compared to the previous 3300 RAM probe, making it suitable for many process compressor applications.
❯ Robust Mechanical Design: Features patented TiLoc molding for a robust bond between the probe tip and body, and patented CableLoc design providing 220 N (50 lb) of pull strength .
❯ Secure Connections: Equipped with gold-plated brass ClickLoc connectors that lock into place to prevent loosening from vibration.

330908-12-31-10-02-00 SPECIFICATIONS

330908-12-31-10-02-00 FREQUENTLY ASKED QUESTIONS

330908: Base model - 3300 NSv Probe, 3/8-24 UNF thread, without armor.
12: Unthreaded length of 1.2 inches.
31: Overall case length of 3.1 inches.
10: Total cable length of 1.0 meter.
02: Connector type - miniature coaxial ClickLoc™ connector with standard cable.
00: Agency approval option - not required.

※What is the maximum thread engagement length for the 3/8-24 thread?

The maximum recommended thread engagement length is 0.563 inches . Exceeding this length may cause binding during installation. Bentley Nevada does not replace probes under warranty due to excessive thread engagement.

※What type of connector does this 330908-12-31-10-02-00 probe use?

It uses a gold-plated brass ClickLoc™ miniature coaxial connector (option "02"). This connector locks into place with a "click" when finger-tight, preventing loosening due to vibration.
