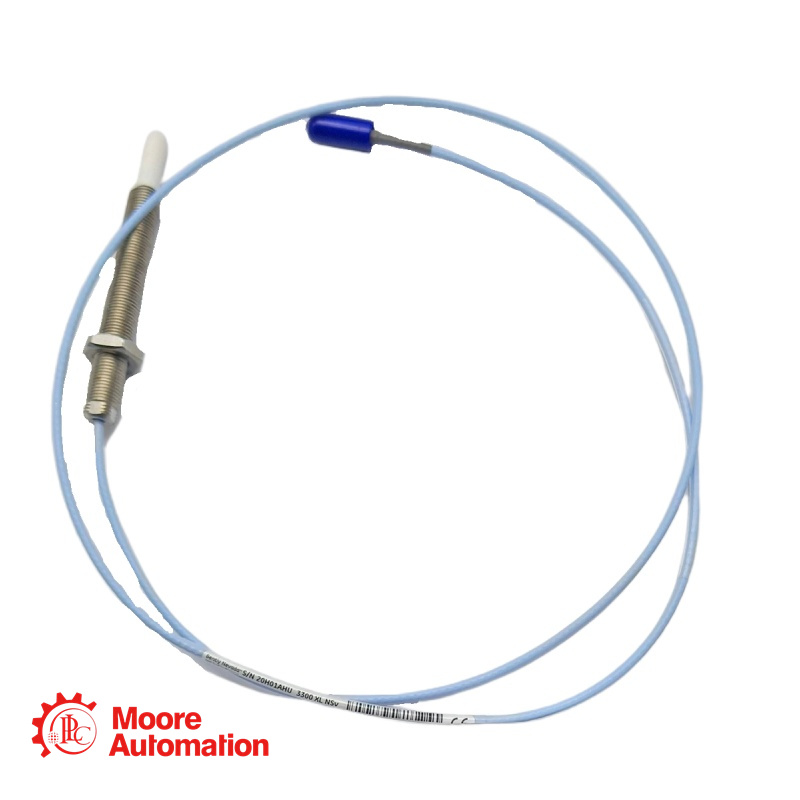

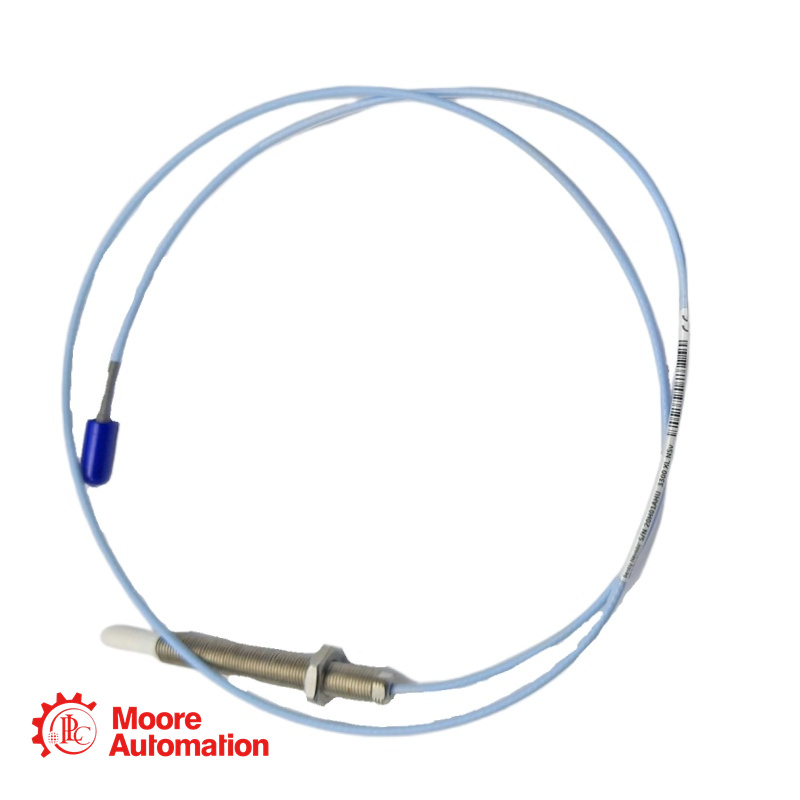

3300 NSv Probe, M10X1 thread, without armor
ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
330905-00-09-10-02-00น้ำหนัก :
0.05kgมิติ :
1.8x1.6x66cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
NSv Probe
330905-00-09-10-02-00
The 330905-00-09-10-02-00 is a 3300 NSv Proximity Probe with M10 x 1 threads, without armor. It is part of the 3300 XL NSv Proximity Transducer System, which uses eddy current technology to measure static position and dynamic vibration. This system is specifically designed for applications with tight installation requirements, such as centrifugal air compressors, refrigeration compressors, and process gas compressors where counterbore, sideview, or rearview restrictions limit the use of standard 3300 and 3300 XL 5 and 8 mm transducer systems.
The 3300 XL NSv system is also ideal for small target applications, including radial vibration measurements on shafts smaller than 51 mm (2 in) and axial position measurements on flat targets smaller than 15 mm (0.6 in).
|
Specifications: 330905-00-09-10-02-00
Part Number-AA-BB-CC-DD-EE |
|
|
Parameter |
Specification |
|
Base Model |
330905 |
|
Probe Type |
3300 NSv Proximity Probe, M10 x 1 thread, without armor |
|
Unthreaded Length (Option A) |
0 mm (00) |
|
Overall Case Length (Option B) |
90 mm (09) |
|
Total Length (Option C) |
10: 1.0 meter (39 inches) |
|
Connector and Cable Type (Option D) |
02: Miniature coaxial ClickLoc connector, standard cable (without connector protector) |
|
Agency Approval (Option E) |
00: Not required |
Electrical Specifications
Parameter
Specification
Linear Range
1.5 mm (60 mils) from approximately 0.25 to 1.75 mm (10 to 70 mils)
Incremental Scale Factor (ISF)
7.87 V/mm (200 mV/mil) +12.5% / -20% including interchangeability error over the 1.5 mm linear range
Recommended Gap Setting
1.0 mm (40 mils)
Nominal Probe DC Resistance
4.2Ω 0.5Ω (for 1.0 meter probe length)
Frequency Response
0 to 10 kHz: +0, -3 dB typical, with up to 305 meters of field wiring
330905-00-09-10-02-00 Features
Compact Design for Tight Installations: Specifically designed for applications where counterbore, sideview, or rearview restrictions limit the use of standard 5 mm and 8 mm transducer systems.
Small Target Capability: Ideal for measuring radial vibration on shafts smaller than 51 mm (2 in) and axial position on flat targets smaller than 15 mm (0.6 in).
Standard Scale Factor: Provides an Average Scale Factor of 7.87 V/mm (200 mV/mil), the most common output for eddy current transducers.
Patented TipLoc Molding: Provides a robust bond between the probe tip and probe body for enhanced durability.
Patented CableLoc Design: Offers 220 N (50 lb) pull strength to securely attach the probe cable to the probe tip.
Gold-Plated ClickLoc Connectors: Corrosion-resistant connectors that lock into place with finger-tight torque (audible click) and prevent loosening.
Backward Compatibility: Mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300 RAM proximity probe and extension cable.
Increased Chemical Resistance: Offers improved chemical resistance compared to the 3300 RAM probe, suitable for process compressor applications.
M10 x 1 Thread: Standard metric thread for mounting flexibility.
1.0 Meter Total Length: Designed for use with extension cables and Proximitor sensors where the combined length matches the system length requirement.
|
