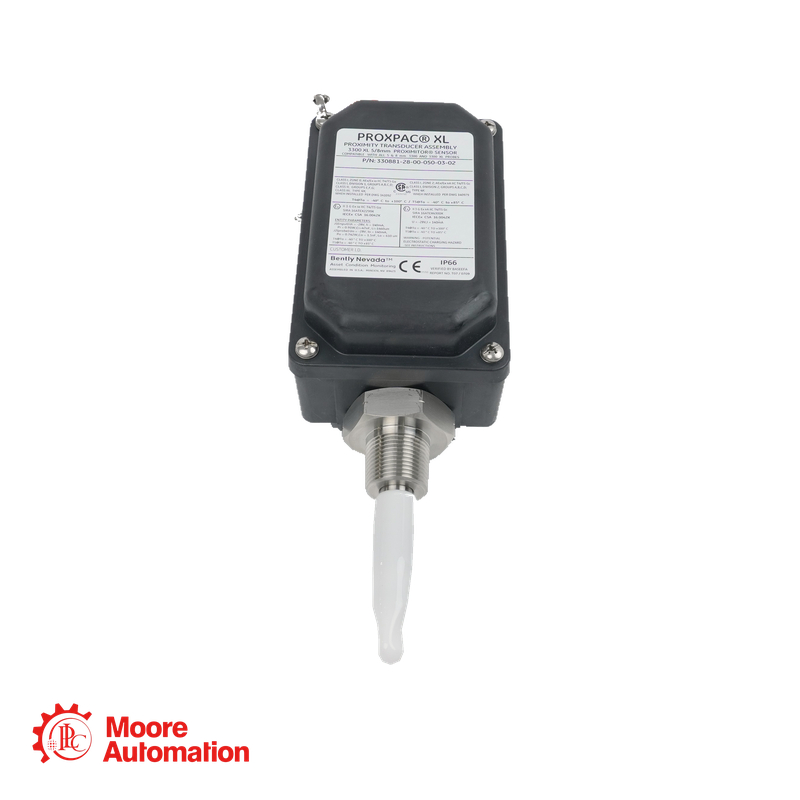

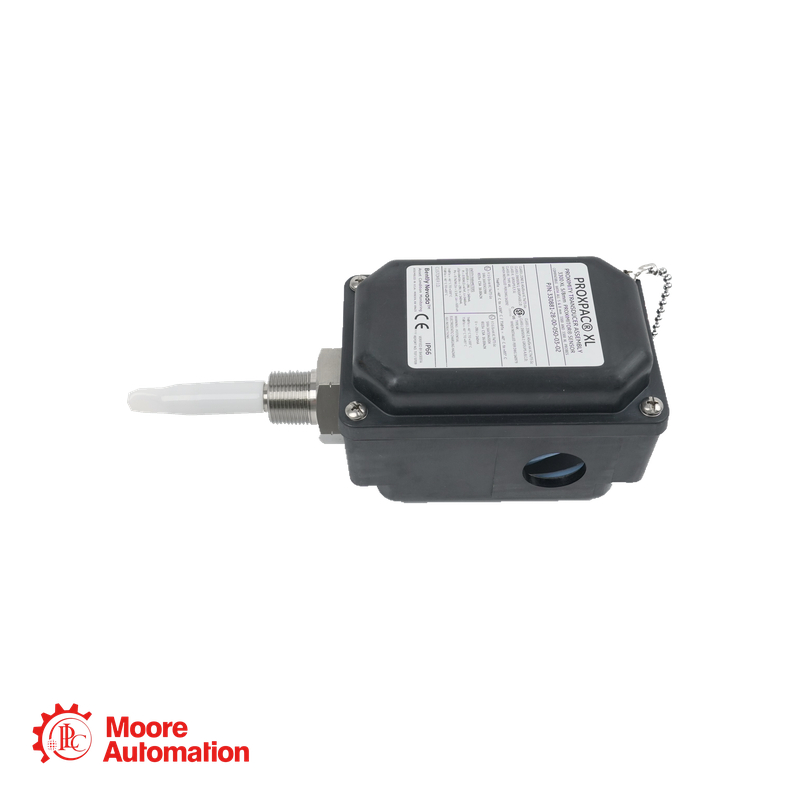

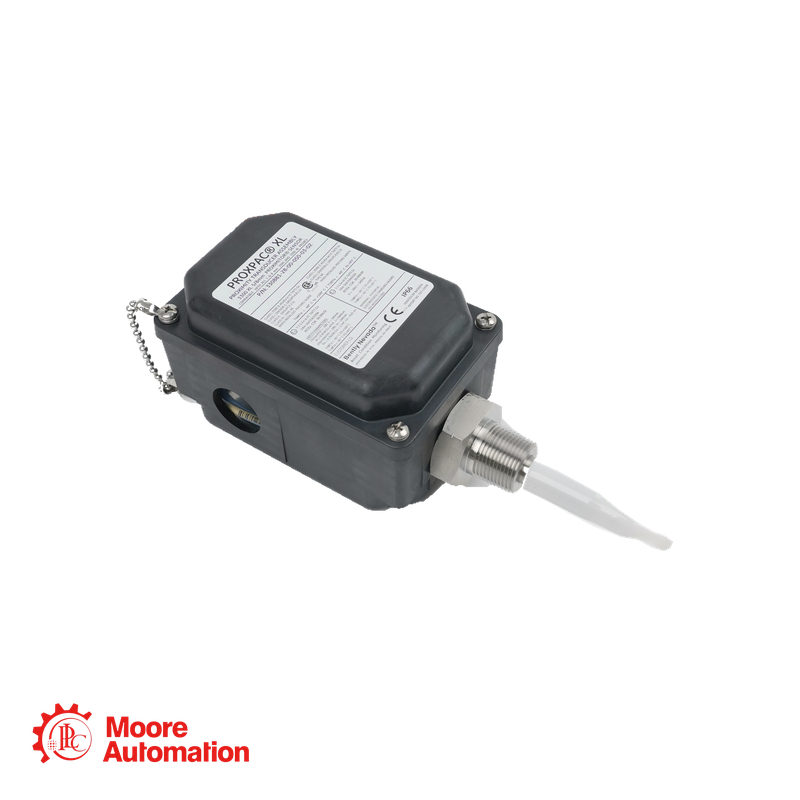

Bently Nevada 330881-28-04-265-00-02 PROXPAC XL Proximity Transducer Assembly
Bently Nevada 330881-28-04-265-00-02 PROXPAC XL Proximity Transducer Assembly
Bently Nevada 330881-28-04-265-00-02 PROXPAC XL Proximity Transducer Assembly

Bently Nevada 330881-28-04-265-00-02 PROXPAC XL Proximity Transducer Assembly

PROXPAC XL · TRANSDUCER ASSEMBLY

330881-28-04-265-00-02

330881-28-04-265-00-02 — A Bently Nevada PROXPAC XL Proximity Transducer Assembly configured with option 28, 40 mm standoff, 265 mm penetration, no fittings and 3/4-14 NPT mounting thread.

PROBE OPTION28
STANDOFF40 MM
PENETRATION265 MM
MOUNTING THREAD3/4-14 NPT
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA● PROXPAC XL TRANSDUCER ASSEMBLY
PROXPAC XL TRANSDUCER ASSEMBLY

330881-28-04-265-00-02

Option 28 · 40 mm standoff · 265 mm penetration · No fittings · 3/4-14 NPT mounting

PROXPAC XL Proximity Transducer Assembly

INTEGRATED PROXIMITY ASSEMBLY
330881-28-04-265-00-02 — This self-contained assembly combines a 3300 XL 8 mm probe and an integrated Proximitor Sensor in one protected housing.
CONFIGURATION NOTE
330881 identifies the metric PROXPAC XL assembly; 28 specifies a 3300 XL 8 mm probe with Multiple Approvals; 04 specifies a 40 mm standoff; 265 specifies 265 mm penetration; 00 specifies no fittings with two plugs and two washers; 02 specifies a 3/4-14 NPT mounting thread required with the standoff.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330881
Base modelMetric PROXPAC XL assembly
28
Probe / approval option3300 XL 8 mm probe · Multiple Approvals
04
Standoff40 mm
265
Penetration265 mm
00
FittingsNo fittings · Two plugs and two washers
02
Mounting thread3/4-14 NPT · Required with standoff
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
PROXPAC XL TRANSDUCER ASSEMBLY

Engineering data at a glance

Click “+” to expand more specifications.

PROBE OPTION28
STANDOFF40 MM
PENETRATION265 MM
MOUNTING THREAD3/4-14 NPT
Configuration from manufacturer ordering data.
Configuration checkConfirm the complete order code, probe option, standoff, penetration, fitting option, mounting thread and installed assembly requirements before ordering.
General Information −
BrandBently Nevada
Part number330881-28-04-265-00-02
Product typePROXPAC XL Proximity Transducer Assembly
Product familyPROXPAC XL Proximity Transducer Assembly
Probe mounting3/4-14 NPT mounting thread
ArmorSelf-contained assembly with integrated Proximitor Sensor
Probe Configuration ＋
Probe / approvals3300 XL 8 mm probe · Multiple Approvals
Standoff40 mm
Penetration265 mm
ConnectorNo fittings
CableTwo plugs and two washers included
Mounting thread3/4-14 NPT
Electrical and Mechanical ＋
Probe familyPROXPAC XL
System linear range2.0 mm (80 mil)
Scale factor7.87 V/mm (200 mV/mil), ±5%
Recommended gap1.27 mm (50 mil)
Probe temperature range−52 to +177 °C
Housing temperature range−52 to +100 °C
System Compatibility ＋
Use the complete PROXPAC XL assembly with the specified 3/4-14 NPT mounting thread and standoff arrangement. Verify the complete order code, installation geometry and approval markings before purchase.
Source: Bently Nevada PROXPAC XL Proximity Transducer Assembly Datasheet, Part Number 178554. The manufacturer datasheet defines the 330881 metric assembly and the 28, 04, 265, 00 and 02 ordering options. Installation requires the complete configured assembly and stated mounting arrangement.
FAQ

Questions Buyers Ask Most

What is 330881-28-04-265-00-02 used for?＋

330881-28-04-265-00-02 is a Bently Nevada PROXPAC XL self-contained proximity transducer assembly configured with option 28, a 40 mm standoff, 265 mm penetration, no fittings and a 3/4-14 NPT mounting thread.

What does the 330881-28-04-265-00-02 code specify?＋

For 330881-28-04-265-00-02, 330881 identifies the metric PROXPAC XL assembly; 28 specifies the 3300 XL 8 mm probe with Multiple Approvals; 04 specifies a 40 mm standoff; 265 specifies 265 mm penetration; 00 specifies no fittings with two plugs and two washers; 02 specifies a 3/4-14 NPT mounting thread required with the standoff.

Can 330881-28-04-265-00-02 be substituted with a similar part number?＋

Do not substitute 330881-28-04-265-00-02 by appearance or family name alone. Compare every ordering segment, probe option, standoff, penetration, fittings, mounting thread and required approval.

What system components must match 330881-28-04-265-00-02?＋

330881-28-04-265-00-02 is self-contained with an integrated Proximitor Sensor; match the complete ordering code, mounting thread, standoff and penetration to the installation.

What should I provide for a 330881-28-04-265-00-02 quotation?＋

Send the complete 330881-28-04-265-00-02 nameplate, quantity, installation geometry, mounting-thread requirement, required approval and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete assembly label, mounting arrangement and installation geometry for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Official Datasheet and References for
330881-28-04-265-00-02

Official manufacturer documentation for the Bently Nevada PROXPAC XL self-contained proximity transducer assembly.

Official manufacturer datasheet

Bently Nevada Datasheet 178554 identifies the 330881 metric PROXPAC XL assembly and its ordering options. This order code specifies option 28, 40 mm standoff, 265 mm penetration, no fittings and 3/4-14 NPT mounting thread.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use Bently Nevada PROXPAC XL Proximity Transducer Assembly Datasheet, Part Number 178554. The Datasheet 178554 defines the 330881 metric assembly and options 28, 04, 265, 00 and 02 for this configuration.

PROXPAC XL ASSEMBLY CONFIGURATION

How 330881-28-04-265-00-02 Is Configured as a Self-Contained Assembly

Bently Nevada is the manufacturer. 330881-28-04-265-00-02 is a self-contained PROXPAC XL assembly that combines a 3300 XL 8 mm probe and an integrated Proximitor Sensor in one protected housing.

Bently Nevada · BRAND
Bently Nevada PROXPAC XL AssemblyPRODUCT FAMILY · INTEGRATED PROXIMITY ASSEMBLY
PROBE ELEMENT

3300 XL 8 mm Probe

The probe detects relative displacement within the configured assembly.

INTEGRATED HOUSING

PROXPAC XL Housing

The housing combines the probe and integrated signal conditioning in one assembly.

SIGNAL CONDITIONING

Integrated Proximitor Sensor

The integrated Proximitor Sensor conditions the probe signal for monitoring.

System relationship: probe element → integrated housing → integrated Proximitor Sensor.
APPLICATION AREAS

Functions and integration points for 330881-28-04-265-00-02

Shaft VibrationSupports non-contact radial vibration measurement with the installed PROXPAC XL assembly.
Axial PositionSupports axial or thrust position measurement with the installed assembly.
APPLICATION CENTER330881-28-04-265-00-02PROXPAC XL Proximity Transducer Assembly
Keyphasor ReferenceCan provide a once-per-turn reference signal when the assembly is installed and configured as specified.
Speed MeasurementSupports speed-related measurement when the assembly is installed and conditioned as specified.
