 /Bently Nevada 330851-02-000-080-90-01-05 3300 XL 25 mm Proximity Probe
Bently Nevada 330851-02-000-080-90-01-05 3300 XL 25 mm Proximity Probe
Bently Nevada 330851-02-000-080-90-01-05 3300 XL 25 mm Proximity Probe
Bently Nevada 330851-02-000-080-90-01-05 3300 XL 25 mm Proximity Probe

Bently Nevada 330851-02-000-080-90-01-05 3300 XL 25 mm Proximity Probe

330851 · 3300 XL 25 MM PROBE

330851-02-000-080-90-01-05

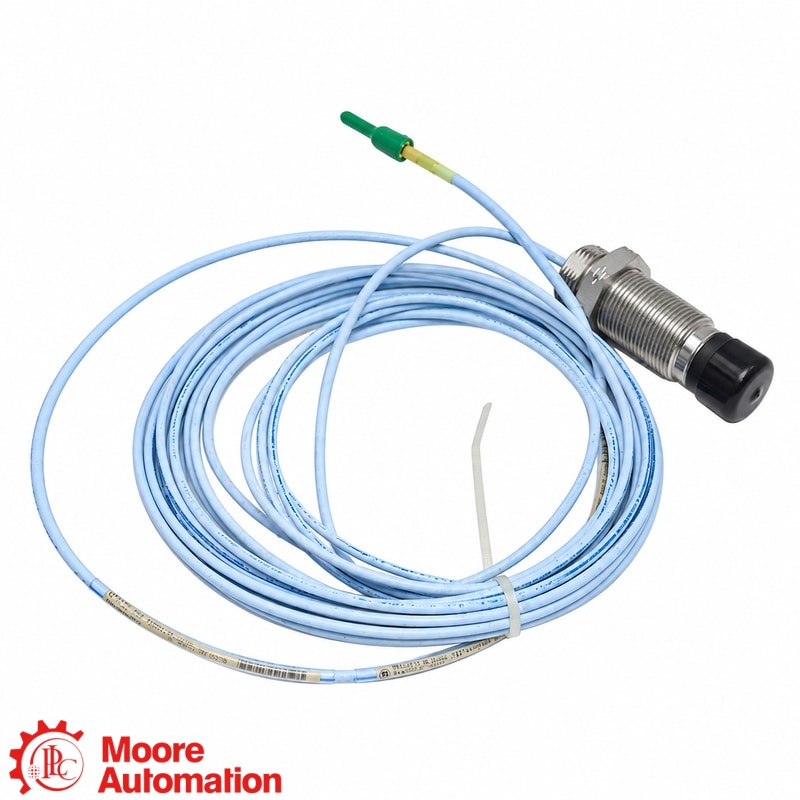

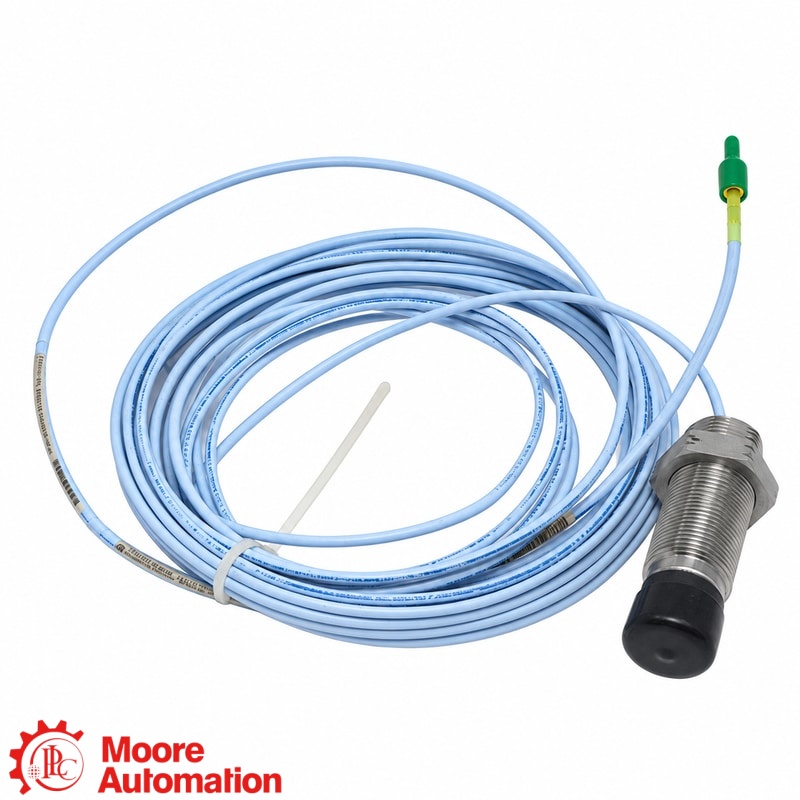

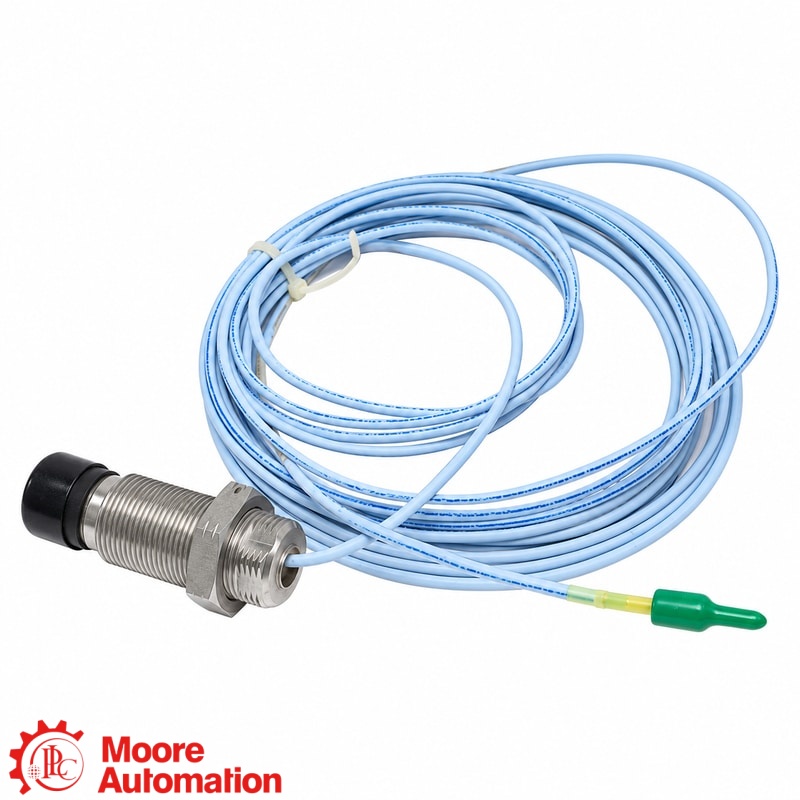

330851-02-000-080-90-01-05 — A Bently Nevada 3300 XL 25 mm proximity probe with M30×2 threads, 80 mm case length, 9.0 m total length, stainless-steel armor and multiple approvals.

THREADM30×2
CASE LENGTH80 MM
TOTAL LENGTH9.0 M
CABLE ARMORSTAINLESS STEEL
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 330851 3300 XL 25 MM PROXIMITY PROBE
330851 3300 XL 25 MM PROXIMITY PROBE

330851-02-000-080-90-01-05

M30×2 thread · 80 mm case · 9.0 m lead · stainless-steel armor

3300 XL 25 mm Proximity Probe

25 MM PROXIMITY PROBE
330851-02-000-080-90-01-05 — This Bently Nevada 3300 XL 25 mm proximity probe provides noncontacting displacement measurement for large rotating machinery applications.
CONFIGURATION NOTE
330851 identifies the 3300 XL 25 mm proximity probe; 02 specifies M30×2 threads, 000 specifies 0 mm unthreaded length, 080 specifies 80 mm case length, 90 specifies 9.0 m total length, 01 specifies stainless-steel armor and 05 specifies multiple approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330851
Probe family3300 XL 25 mm proximity probe
02
ThreadM30×2
000
Unthreaded length0 mm
080
Case length80 mm
90
Total length9.0 m
01
Cable armorStainless-steel armor
05
ApprovalsMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
330851 3300 XL 25 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

THREADM30×2
CASE LENGTH80 MM
TOTAL LENGTH9.0 M
CABLE ARMORSTAINLESS STEEL
Manufacturer-reference characteristics for this product family and order code.
Configuration checkMatch the complete seven-part ordering number, thread, case length, lead length, armor and approval selection.
General Information −
BrandBently Nevada
Part number330851-02-000-080-90-01-05
Product type3300 XL 25 mm Proximity Probe
Probe tip materialPEEK
Case materialAISI 304 stainless steel
Cable75 Ω triaxial PFA-insulated FluidLoc cable
Mechanical Configuration ＋
Thread02 · M30×2
Unthreaded length000 · 0 mm
Case length080 · 80 mm
Cable Configuration ＋
Total length90 · 9.0 m
Armor01 · Stainless-steel armor
Probe dc resistance8.8 ±1.1 Ω for 9 m probe
Environmental & Approval ＋
Temperature−35 to +200 °C continuous
Short-duration temperatureUp to +250 °C for less than 24 hours
Approval option05 · Multiple approvals
Source: Bently Nevada 3300 XL 25 mm Proximity Transducer System Datasheet, 163236 Rev. M. The official ordering guide defines every option used in this complete probe number.
FAQ

Questions Buyers Ask Most

What does this 330851 probe measure? 330851-02-000-080-90-01-05＋

It provides noncontacting displacement measurement as part of a matched 3300 XL 25 mm proximity transducer system.

What thread and case dimensions are specified? 330851-02-000-080-90-01-05＋

Option 02 specifies M30×2 threads, 000 specifies 0 mm unthreaded length and 080 specifies an 80 mm overall case length.

What cable configuration is supplied? 330851-02-000-080-90-01-05＋

Option 90 specifies 9.0 m total length and option 01 specifies stainless-steel cable armor.

What does option 05 identify? 330851-02-000-080-90-01-05＋

Option 05 identifies the multiple-approvals configuration.

What should be matched when ordering? 330851-02-000-080-90-01-05＋

Match all seven order-code fields, especially thread, case length, total lead length, armor and approval selection.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete model number, nameplate photo and application requirements for an exact product check.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330851-02-000-080-90-01-05

Official manufacturer documentation for the Bently Nevada 3300 XL 25 mm proximity transducer system.

Official manufacturer datasheet

Bently Nevada Datasheet 163236 defines all ordering positions in 330851-02-000-080-90-01-05, including M30×2 threads, 80 mm case length, 9.0 m total length, stainless-steel armor and multiple approvals.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use Bently Nevada 3300 XL 25 mm Proximity Transducer System Datasheet, 163236 Rev. M.

3300 XL 25 MM PROXIMITY PROBE

How 330851-02-000-080-90-01-05 Fits into the 3300 XL 25 mm Probe Family

Bently Nevada is the manufacturer. 330851-02-000-080-90-01-05 is a Bently Nevada 3300 XL 25 mm proximity probe configured with M30×2 threads, an 80 mm case, 9.0 m lead, stainless-steel armor and multiple approvals.

Bently Nevada · BRAND
Bently Nevada 3300 XL 25 mm Probe FamilyPRODUCT FAMILY · 25 MM PROXIMITY PROBE
THREAD & CASE

M30×2 · 80 mm

The probe uses M30×2 threads with a 0 mm unthreaded section and 80 mm overall case length.

PROBE LENGTH

9.0 Metres

The 90 option specifies a 9.0 m total probe length.

CABLE PROTECTION

SST Armor

The 01 option adds stainless-steel cable armor.

System relationship: use the complete 330851-02-000-080-90-01-05 reference when identifying this 3300 XL 25 mm Proximity Probe.
APPLICATION AREAS

Functions and integration points for 330851-02-000-080-90-01-05

Noncontacting MeasurementProvides eddy-current proximity measurement without physical contact with the target.
Large Rotating MachineryThe 25 mm system supports applications requiring an extended linear measurement range.
APPLICATION CENTER 330851-02-000-080-90-01-05 3300 XL 25 mm Proximity Probe
Shaft PositionSupports measurement of shaft position and displacement within a matched system.
Harsh Cable RoutingStainless-steel armor adds mechanical protection along the probe cable.
