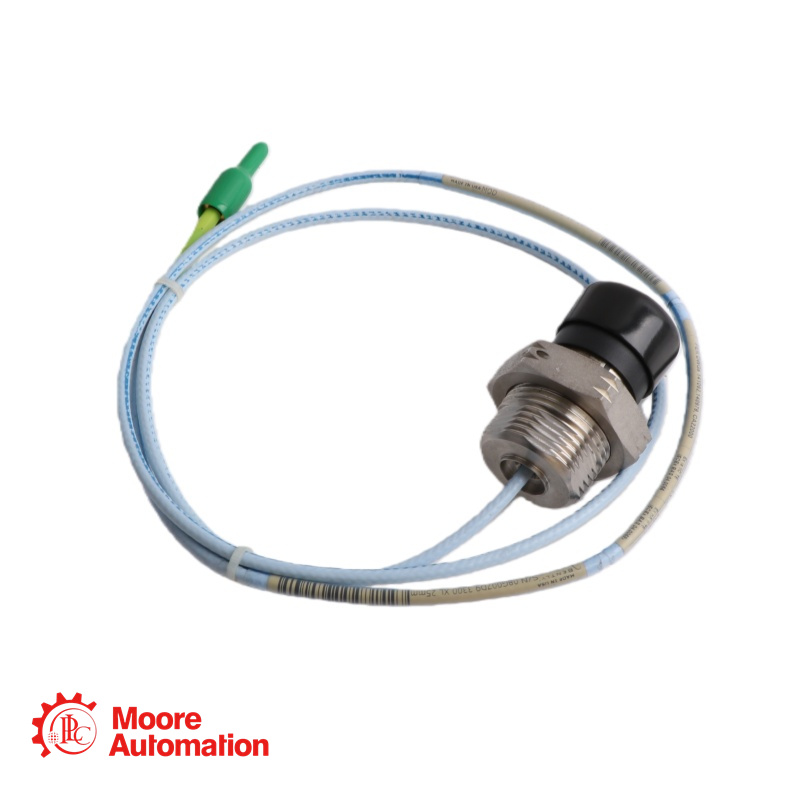

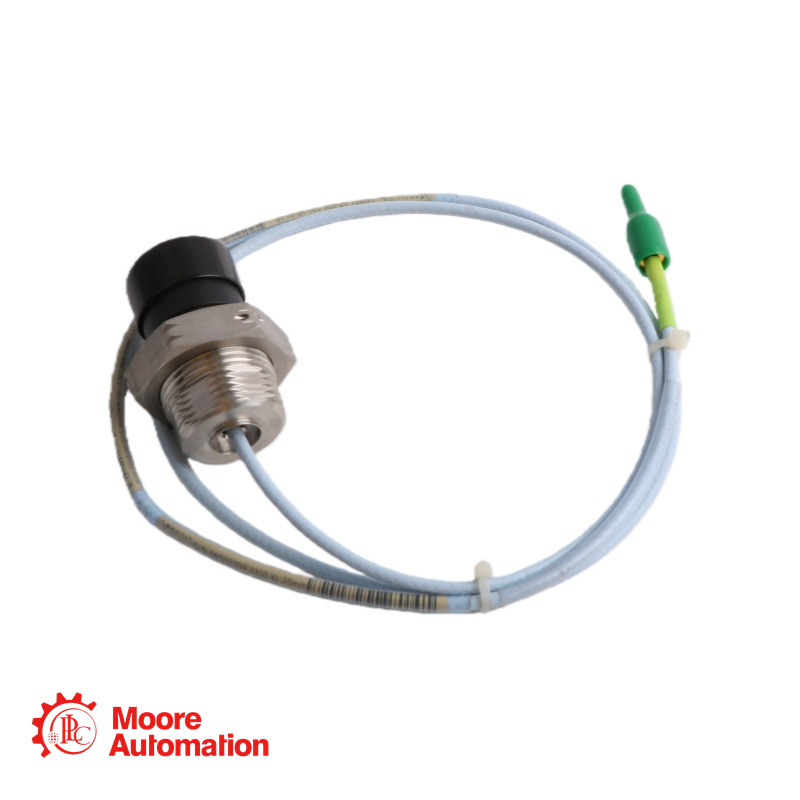

Bently Nevada 330851-02-000-030-50-01-00 Proximity Probe

Contact here to get quotation

Know Product Details

❖Probe Case Type Option (A): 02 = M30x2 Thread.
❖Unthreaded Length Option (B): 000 = 0 mm (Fully Threaded).
❖Overall Case Length Option (C): 030 = 30 mm.
❖Total Cable Length Option (D): 50 = 5.0 meters (16.4 feet).
❖Armor Option (E): 01 = With Stainless Steel (SST) Armor.
❖Agency Approval Option (F): 00 = No Specific Approvals (Standard).

Probe Type: Standard Mount, Forward-Facing.
Thread Type: M30x2 Metric.
Armor: Yes (Stainless Steel Armor with PFA outer jacket).
Probe Tip Diameter: 25 mm.
Probe Tip Material: Polyetheretherketone (PEEK).
Probe Case Material: AISI 304 Stainless Steel.
Cable Type: High-Temperature 75 Ω Triaxial FluidLoc Cable with Perfluoroalkoxyethylene (PFA) Insulation.
Operating Temperature Range: Probe: -35°C to +200°C continuously, up to +250°C intermittently. Extension Cable & Sensor: -35°C to +200°C.
Linear Range: 12.7 mm (500 mils), from 0.63 mm to 13.33 mm from target.
Scale Factor (Average): 0.787 V/mm (20 mV/mil) nominal.
Frequency Response: 0 to 2.7 kHz.
Recommended Gap Setting: 7.0 mm (275 mils).
Cable Length Tolerance: +20% / -0% for 5m probes.

Frequently Asked Questions?

❖The probe 330851-02-000-030-50-01-00 has a 30mm case length. What is the maximum thread engagement?
A: The maximum recommended thread engagement is 1.5 times the nominal thread diameter. For an M30x2 thread, this is 45 mm. Since your case length is 30mm and it's fully threaded (B=000), your maximum possible engagement is 30mm, which is within the safe limit. Exceeding 45mm may cause binding.
❖Is the “00” approval valid for use in hazardous locations?
A: No. Because "00" means no required. It is suitable for general industrial use in non‑hazardous locations.
❖Is this 330851-02-000-030-50-01-00 orginal new one?

A: Yes! 330851-02-000-030-50-01-00 is brand new with one year warranty. Welcome to inquire our manager: Frida +86 15359408275 / sales5@mooreplc.com
