 /Bently Nevada 330703-000-026-10-02-00 3300 XL 11 mm Proximity Probe
Bently Nevada 330703-000-026-10-02-00 3300 XL 11 mm Proximity Probe
Bently Nevada 330703-000-026-10-02-00 3300 XL 11 mm Proximity Probe
Bently Nevada 330703-000-026-10-02-00 3300 XL 11 mm Proximity Probe

Bently Nevada 330703-000-026-10-02-00 3300 XL 11 mm Proximity Probe

3300 XL 11 MM · PROXIMITY PROBE

330703-000-026-10-02-00

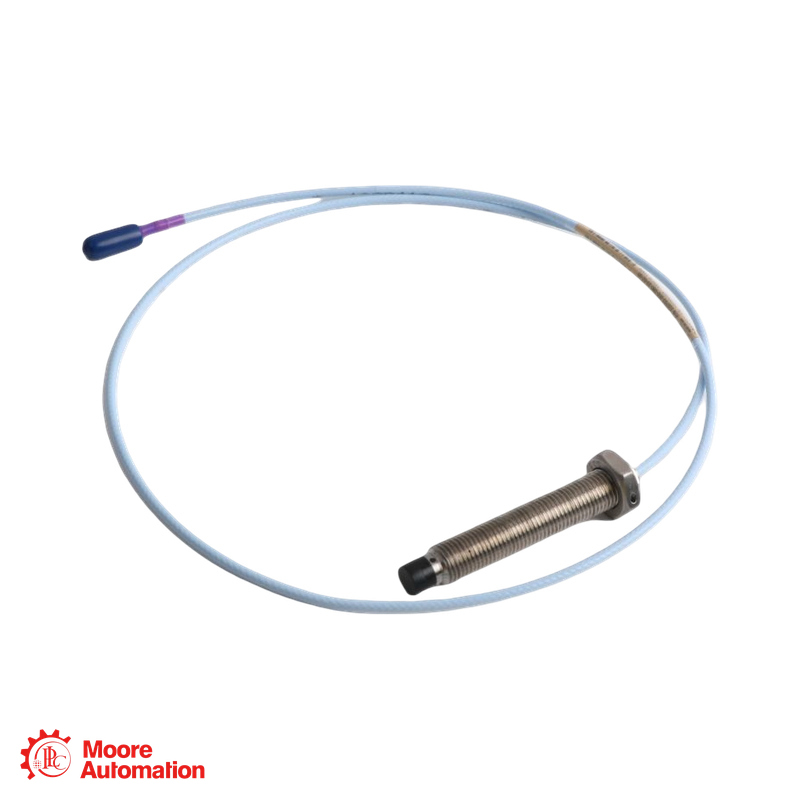

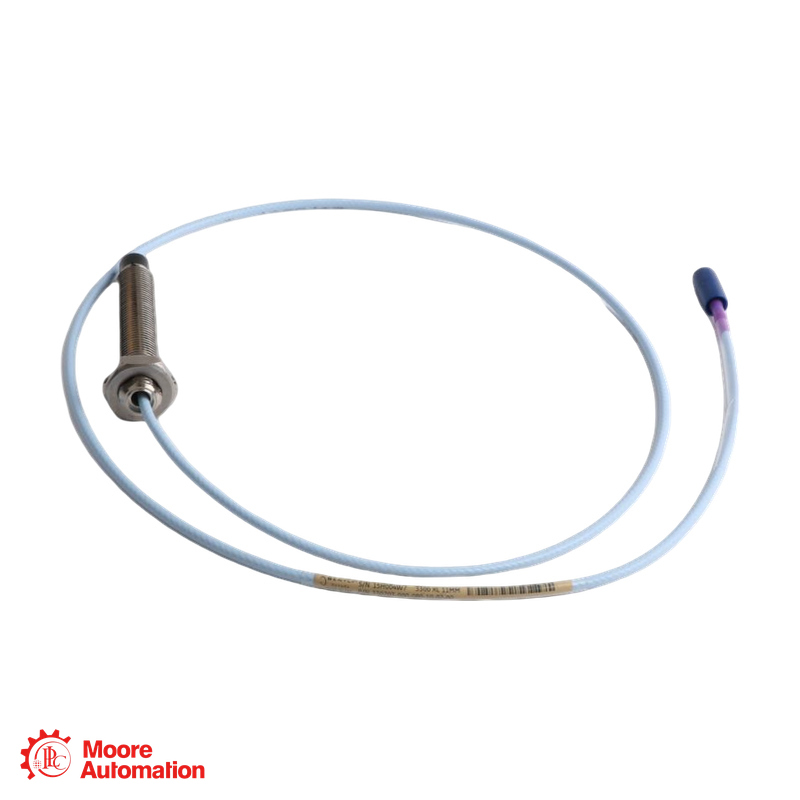

330703-000-026-10-02-00 — 330703 3300 XL 11 mm proximity probe with M14 x 1.5 thread; 0 mm unthreaded length, 26 mm overall case length, 1.0 m total probe length and standard cable with ClickLoc connector.

PROBE SERIES3300 XL 11 mm
MOUNT THREADM14 x 1.5
MOUNTINGWithout armor
ORDER CODE1.0 m · Standard ClickLoc
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 11 MM PROXIMITY PROBE
3300 XL 11 MM PROXIMITY PROBE

330703-000-026-10-02-00

1.0 m · Standard ClickLoc

3300 XL 11 mm Proximity Probe

3300 XL 11 MM PROXIMITY TRANSDUCER SYSTEM
330703-000-026-10-02-00 — 330703 3300 XL 11 mm proximity probe with M14 x 1.5 thread; 0 mm unthreaded length, 26 mm overall case length, 1.0 m total probe length and standard cable with ClickLoc connector.
CONFIGURATION NOTE
330703 identifies the probe family. 0 mm unthreaded length, 26 mm overall case length, 1.0 m total probe length and standard cable with ClickLoc connector. Verify the complete marking and matched system length.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330703
Probe family11 mm; M14 x 1.5; no armor
000
Unthreaded length0 mm
026
Case length26 mm
10
Total length1.0 m
02
Cable / connectorStandard cable; ClickLoc
00
Approval optionNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 11 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE SERIES330703
MOUNT THREADM14 x 1.5
MOUNTINGWithout armor
ORDER CODE1.0 m · Standard ClickLoc
Manufacturer family data; confirm the complete supplied marking.
Configuration note 330703 identifies the probe family. 0 mm unthreaded length, 26 mm overall case length, 1.0 m total probe length and standard cable with ClickLoc connector. Verify the complete marking and matched system length.
General Information −
BrandBently Nevada
Part number330703-000-026-10-02-00
Product type3300 XL 11 mm Proximity Probe
Product family3300 XL 11 mm Proximity Transducer System
Mounting threadM14 x 1.5
Mounting styleWithout armor
Ordering Details ＋
Base reference330703
Supplied marking330703-000-026-10-02-00
Cable / connector0 mm unthreaded length, 26 mm overall case length, 1.0 m total probe length and standard cable with ClickLoc connector
Mechanical and Approval ＋
ThreadM14 x 1.5
Armor / mountingWithout armor
Approval option00 means no agency approval is required in the family table.
System Integration ＋
The 330703 probe family is one component of a 3300 XL 11 mm transducer system. Match the probe, extension cable and Proximitor Sensor to the required total system length; verify the full supplied marking before installation.
FAQ

Questions Buyers Ask Most

What product family does 330703-000-026-10-02-00 belong to?＋

The 330703-000-026-10-02-00 is specified with 0 mm unthreaded length, 26 mm overall case length, 1.0 m total probe length and standard cable with ClickLoc connector. The 330703 family is documented as a 3300 XL 11 mm proximity probe with M14 x 1.5 thread. Verify the full marking.

How should 330703-000-026-10-02-00 be matched to an 11 mm system?＋

Bently Nevada 330703-000-026-10-02-00 is a probe component; select a compatible 11 mm extension cable and Proximitor Sensor for the required system length.

Which installation checks apply to 330703-000-026-10-02-00?＋

The 330703-000-026-10-02-00 requires the specified M14 x 1.5 mounting thread. Confirm probe orientation, target, cable route and connector before installation.

How is the approval field of 330703-000-026-10-02-00 treated?＋

For 330703-000-026-10-02-00, 00 means no agency approval is required in the family table.

What information is needed to order 330703-000-026-10-02-00?＋

For 330703-000-026-10-02-00, provide the exact full marking, quantity, existing probe and sensor references, required total length, mounting thread and site approval needs.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330703-000-026-10-02-00 marking, quantity and matched 11 mm system requirements for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330703-000-026-10-02-00

Baker Hughes Datasheet 146256 documents the 330703 3300 XL 11 mm probe family. Confirm the complete supplied marking before ordering.

Manufacturer family reference

The public family datasheet documents the 330703 probe base and ordering pattern, but does not confirm this complete supplied marking. Request exact-model documentation for purchasing or installation.

REQUEST EXACT DOCUMENTATION

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Probe-family statements use Baker Hughes Datasheet 146256; the exact complete marking requires confirmation.

3300 XL 11 MM SYSTEM RELATIONSHIP

Family Context for 330703-000-026-10-02-00 in an 11 mm Proximity Transducer System

Bently Nevada is the manufacturer. 330703-000-026-10-02-00 is in the 330703 3300 XL 11 mm proximity probe family. A matched system comprises the probe, 11 mm extension cable and 11 mm Proximitor Sensor.

Bently Nevada · BRAND
Bently Nevada 3300 XL 11 mm SystemPRODUCT FAMILY · PROXIMITY TRANSDUCER SYSTEM
PROXIMITY PROBE

330703 11 mm Probe

The probe uses M14 x 1.5 mounting thread and a compatible ClickLoc connection.

EXTENSION CABLE

Matched 11 mm Extension Cable

Match probe and extension-cable lengths to the selected Proximitor Sensor total system length.

PROXIMITOR SENSOR

Matched 11 mm Proximitor Sensor

Select the sensor and extension cable for the required total length.

System relationship: the 11 mm probe, matching extension cable and Proximitor Sensor form a system; verify the complete supplied marking.
APPLICATION AREAS

Application roles for the 330703 11 mm probe family

Rotating Machinery MonitoringThe 11 mm family supports non-contacting vibration and displacement measurement in fluid-film bearing machines.
Axial Position MeasurementA matched 11 mm system can measure axial shaft position.
APPLICATION CENTER 330703-000-026-10-02-00 3300 XL 11 mm Proximity Probe
Turbine Expansion MeasurementThe family supports ramp differential expansion measurement on steam turbines.
Phase Reference MeasurementA matched 11 mm system can provide Keyphasor phase-reference signals.
