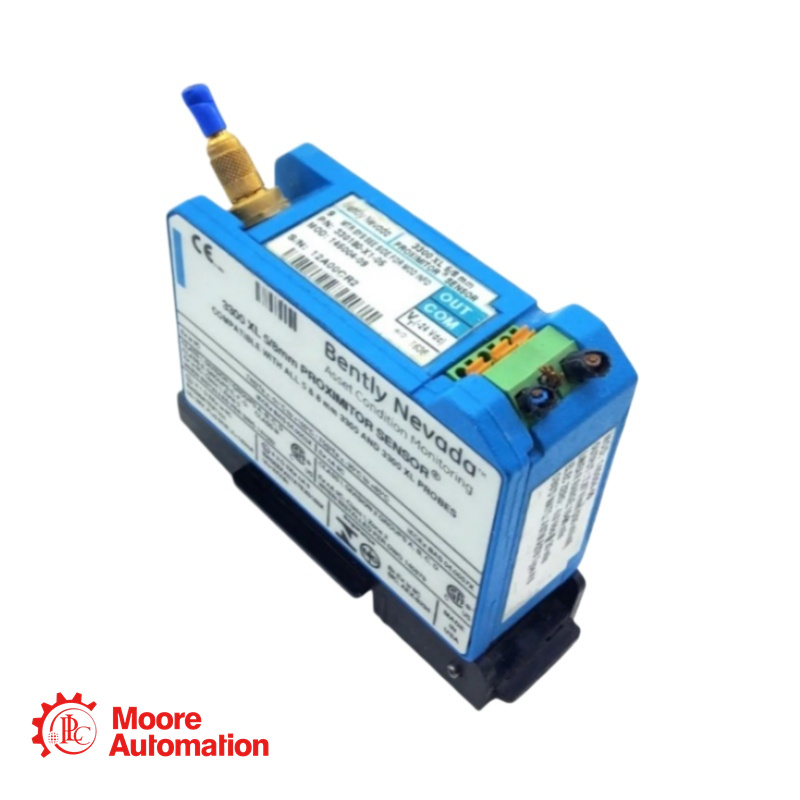

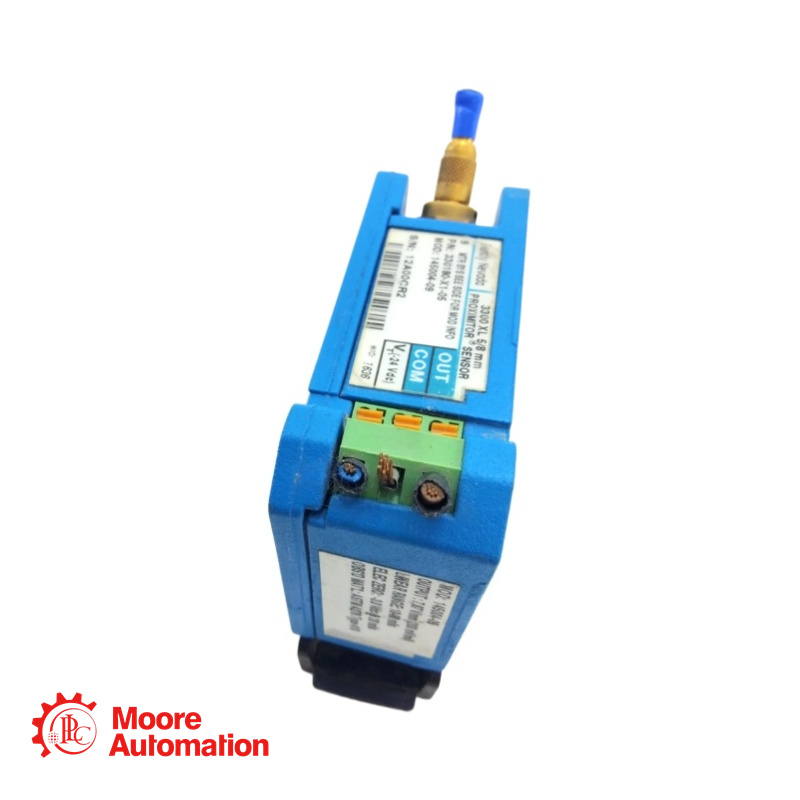

Bently Nevada 330180-X1-05 MOD:145193-06 Proximitor Sensor

CONTACT US TO GET 330180-X1-05 MOD:145193-06'S PRICE

330180-X1-05 MOD:145193-06 DESCRIPTION

330180-X1-05 MOD:145193-06 FEATURES

❯ Interchangeability: Supports complete interchangeability of probes, extension cables, andProximitor sensors without the need for bench calibration or matching .
❯ Flexible Mounting: The slim design allows for mounting in either high-density DIN-rail installations or traditional panel-mount configurations .
❯ Enhanced RFI/EMI Immunity: Meets European CE mark approvals without requiring special shielded conduit or metallic housings, reducing installation costs .
❯ SpringLoc Terminals: Features SpringLoc terminal strips that require no special installation tools and provide faster, more robust field wiring connections compared to screw-type clamps .
❯ Backward Compatibility: Electrically and physically interchangeable with non-XL 3300 series 5 mm and 8 mm system components .
❯ Functional Safety: Certified for use in safety-related systems up to SIL 2 (HFT=0) and SIL 3 (HFT=1) .

330180-X1-05 MOD:145193-06 SPECIFICATIONS

B: Agency Approval Option(05):CSA, ATEX, IECEx  Approvals

Power Requirement:-17.5 Vdc to -26 Vdc (non-incendive) at 12 mA max; -23 Vdc to -26 Vdc with barriers
Output Resistance:50 Ω
Incremental Scale Factor (ISF):7.87 V/mm (200 mV/mil) ± 5% for 5m system over 0°C to +45°C

Operating Temperature:-52°C to +100°C (-62°F to +212°F)
Storage Temperature:-52°C to +105°C (-62°F to +221°F)

330180-X1-05 MOD:145193-06 FREQUENTLY ASKED QUESTIONS

This is an internal manufacturer modification number. It indicates that this specific Proximitor Sensor has been built or configured according to a particular engineering specification. This may include specific component selections, firmware versions, or calibration requirements.

※Can this 330180-X1-05 MOD:145193-06 Proximitor Sensor be used with older 3300 series probes?

 Yes, the 3300 XL Proximitor Sensor is backward compatible and interchangeable with non-XL 3300 series 5 mm and 8 mm probes and extension cables.

※What is the maximum length of field wiring between the Proximitor and the monitor?

The maximum recommended length is 305 meters (1,000 feet) . However, using longer field wiring lengths will affect the frequency response, causing signal rolloff at higher frequencies.
