Bently Nevada 330104-03-10-20-01-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-03-10-20-01-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-03-10-20-01-CN 3300 XL 8 mm Proximity Probe

Bently Nevada 330104-03-10-20-01-CN 3300 XL 8 mm Proximity Probe

3300 XL 8 MM PROXIMITY PROBE

330104-03-10-20-01-CN

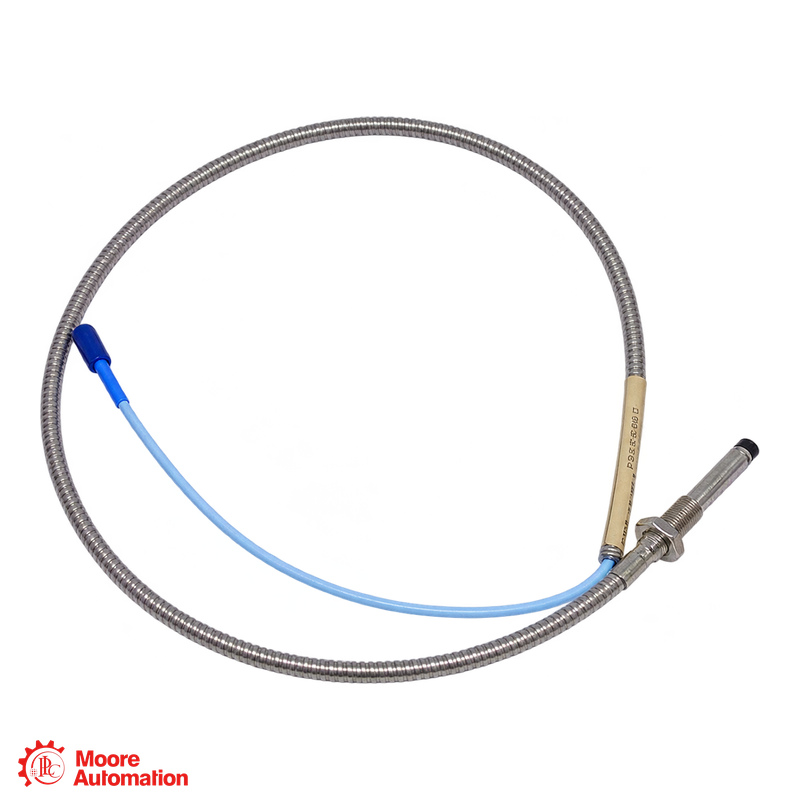

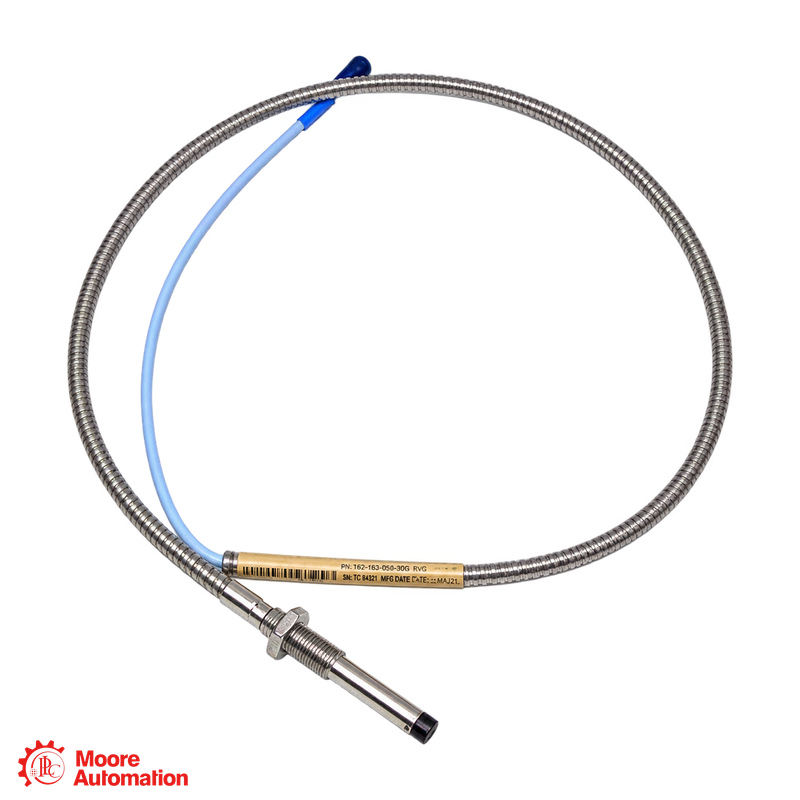

330104-03-10-20-01-CN — a Bently Nevada 3300 XL 8 mm proximity probe with M10 × 1 threads, stainless-steel armor, a 100 mm case and 2.0 m total probe length.

THREADM10 × 1
CASE LENGTH100 mm
TOTAL LENGTH2.0 m
ARMORStainless steel
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330104-03-10-20-01-CN

M10 × 1 · 100 mm case · 2.0 m lead · armored

3300 XL 8 mm Proximity Probe

8 MM EDDY-CURRENT PROBE
330104-03-10-20-01-CN — A Bently Nevada 3300 XL 8 mm proximity probe with M10 × 1 threads, with stainless steel armor, 100 mm case length and 2.0 m total length.
CONFIGURATION NOTE
The Bently Nevada ordering table defines 330104 as an M10 × 1 armored 8 mm probe; option 03 gives 30 mm unthreaded length, 10 gives a 100 mm case, 20 gives 2.0 m total length, and 01 is standard ClickLoc cable with a connector protector. The supplied CN suffix is not defined in that public table.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330104
Probe baseM10 × 1 thread, with armor
03
Unthreaded length30 mm
10
Case length100 mm
20
Total length2.0 m
01
Connector/cableClickLoc with protector; standard cable
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

THREADM10 × 1
CASE LENGTH100 mm
TOTAL LENGTH2.0 m
ARMORStainless steel
Manufacturer-defined order configuration.
Configuration noteThe Bently Nevada ordering table defines 330104 as an M10 × 1 armored 8 mm probe; option 03 gives 30 mm unthreaded length, 10 gives a 100 mm case, 20 gives 2.0 m total length, and 01 is standard ClickLoc cable with a connector protector. The supplied CN suffix is not defined in that public table.
General Information −
BrandBently Nevada
Part number330104-03-10-20-01-CN
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm
ThreadM10 × 1
ArmorWith stainless steel armor
Probe Order Configuration ＋
Unthreaded length30 mm
Overall case length100 mm
Total probe length2.0 m
ConnectorMiniature coaxial ClickLoc
Connector protectorIncluded
Cable typeStandard cable
Mechanical Design ＋
Nominal tip diameter8 mm
Mounting threadM10 × 1
Probe tip constructionTipLoc molding
Probe cable attachmentCableLoc
Cable pull strength330 N (75 lbf)
System Integration ＋
Measurement technologyEddy-current proximity
System componentsProbe, extension cable and Proximitor Sensor
Measurement modesVibration and position
Connector lockingFinger-tight ClickLoc
Source: Bently Nevada 3300 XL 8 mm ordering information.
FAQ

Questions Buyers Ask Most

What configuration does 330104-03-10-20-01-CN specify?＋

330104-03-10-20-01-CN uses 330104 for its probe construction, 30 mm unthreaded length, 100 mm overall case length, and 2.0 m total length. The connector and cable option is Miniature coaxial ClickLoc with included protector.

What physical connection does 330104-03-10-20-01-CN use?＋

330104-03-10-20-01-CN uses a M10 × 1 probe case and a miniature coaxial ClickLoc connector. The selected 01 or 02 option determines whether a connector protector is included. Use the complete part number to match the installed probe and extension-cable connection.

Which machinery measurements can use 330104-03-10-20-01-CN?＋

330104-03-10-20-01-CN 330104-03-10-20-01-CN is a probe component of the 3300 XL 8 mm system for shaft vibration and position measurements. The system includes the matching extension cable and Proximitor Sensor, which convert probe-to-target gap into a proportional output voltage.

How should 330104-03-10-20-01-CN be matched in the transducer system?＋

330104-03-10-20-01-CN 330104-03-10-20-01-CN belongs in a 3300 XL 8 mm transducer chain with an extension cable and Proximitor Sensor. Match the complete probe order code, connection style and required system length rather than substituting a different cable or probe configuration by appearance alone.

What order details matter for 330104-03-10-20-01-CN?＋

For the complete 330104-03-10-20-01-CN probe, record the M10 × 1 thread, 30 mm unthreaded length, 100 mm case length, 2.0 m lead length, connector option and full trailing suffix. Compare them with the installed system before ordering a replacement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330104-03-10-20-01-CN label, probe thread, case length, lead length, connector option and quantity with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330104-03-10-20-01-CN

Bently Nevada ordering information supports the 330104 base and the listed standard options, but no exact full-code manufacturer datasheet was confirmed for 330104-03-10-20-01-CN.

Official datasheet status

No current official 330104-03-10-20-01-CN product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The full supplied identifier should be matched against the installed product and manufacturer documentation.

3300 XL 8 MM SYSTEM CONTEXT

How 330104-03-10-20-01-CN Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 330104-03-10-20-01-CN is a Bently Nevada 3300 XL 8 mm proximity probe. Together with a matching extension cable and Proximitor Sensor, it forms a system whose voltage output is proportional to probe-to-target distance.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SeriesPRODUCT FAMILY · 8 MM PROXIMITY PROBE
PROBE THREAD

M10 × 1

The 330104 probe uses M10 × 1 threads.

CASE LENGTH

100 mm

The selected case-length code specifies 100 mm.

TOTAL PROBE LENGTH

2.0 m

The selected total-length code specifies 2.0 m of probe and attached cable.

System relationship: the 3300 XL 8 mm probe senses conductive shaft proximity; with the extension cable and Proximitor Sensor, the system converts target gap into a proportional voltage signal.
APPLICATION AREAS

Functions and application roles for 330104-03-10-20-01-CN

Radial VibrationThe 3300 XL 8 mm transducer system measures shaft vibration on fluid-film bearing machines.
Shaft PositionThe system can measure static probe-to-target distance for shaft position monitoring.
APPLICATION CENTER 330104-03-10-20-01-CN 3300 XL 8 mm Proximity Probe
Phase ReferenceThe system can support Keyphasor reference measurements with the correct monitor configuration.
Machine MonitoringThe probe operates in a three-component chain with an extension cable and Proximitor Sensor.
