 /Bently Nevada 330104-02-09-10-01-00 3300 XL 8 mm Proximity Probe

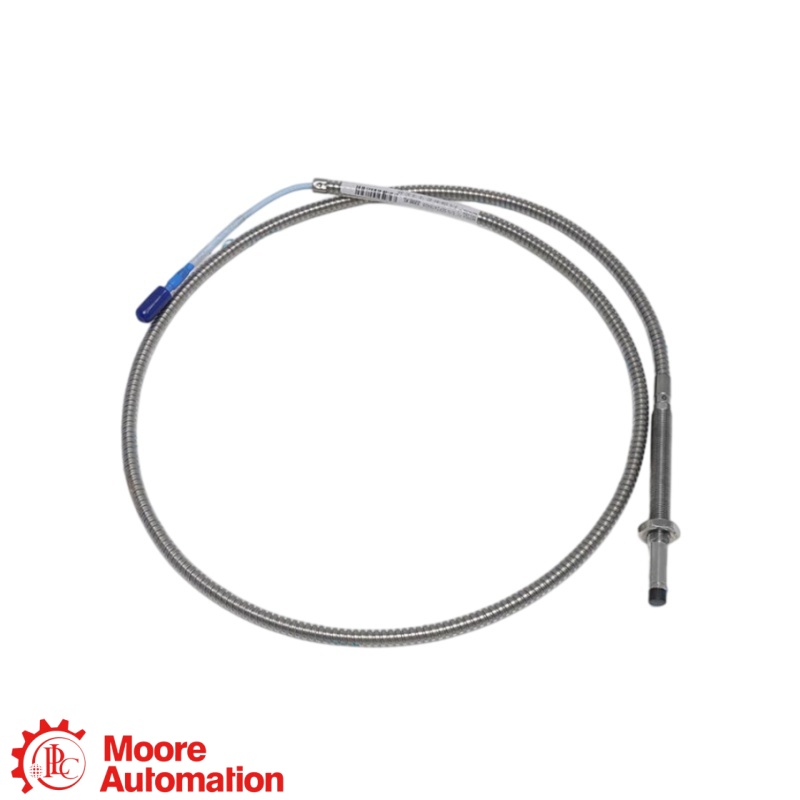

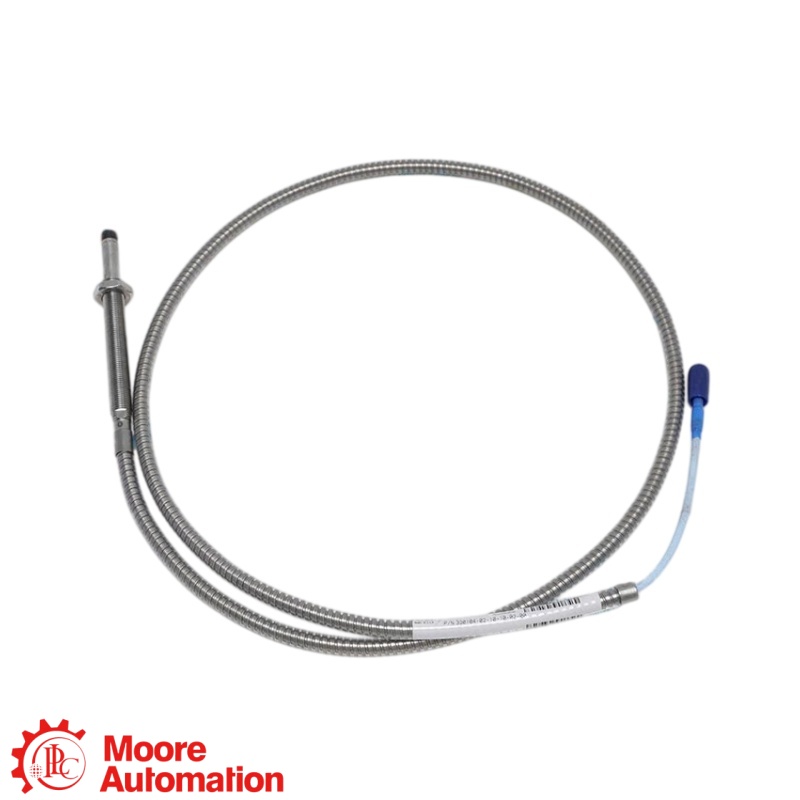

Bently Nevada 330104-02-09-10-01-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-02-09-10-01-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-02-09-10-01-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330104-02-09-10-01-00 3300 XL 8 mm Proximity Probe

3300 XL · 8 MM PROBE

330104-02-09-10-01-00

330104-02-09-10-01-00 — A Bently Nevada 3300 XL 8 mm armored proximity probe with M10 x 1 thread, 20 mm unthreaded length, 90 mm case length, 1.0 m standard cable, ClickLoc connector protector and no agency approval required.

TIP8 MM
THREADM10 x 1
LENGTH1.0 M
APPROVALNOT REQUIRED
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330104-02-09-10-01-00

M10 x 1 · 90 mm case · 1.0 m cable · No approval required

3300 XL 8 mm Proximity Probe

NON-CONTACT SENSING ROLE
330104-02-09-10-01-00 — This 3300 XL 8 mm proximity probe is part of a matched transducer system for non-contact vibration and position measurements on rotating machinery.
CONFIGURATION NOTE
330104 identifies the armored 3300 XL 8 mm probe with M10 x 1 thread; 02 sets 20 mm unthreaded length, 09 sets 90 mm overall case length, 10 sets 1.0 m total length, 01 specifies a miniature coaxial ClickLoc connector with protector and standard cable, and 00 means agency approval is not required.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330104
Base model3300 XL 8 mm probe · M10 x 1 · Armored
02
Unthreaded length20 mm
09
Overall case length90 mm
10
Total length1.0 m (3.3 ft)
01
Connector / cableClickLoc with protector · Standard cable
00
Approval optionNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Official Datasheet ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

TIP8 MM
THREADM10 x 1
CASE LENGTH90 MM
TOTAL LENGTH1.0 M
Configuration from the manufacturer ordering guide and official 3300 XL 8 mm datasheet.
Configuration check Confirm the complete order code, thread, case length, total length, connector, cable type, approval option and matching 3300 XL 8 mm Proximitor Sensor before ordering.
General Information −
BrandBently Nevada
Part number330104-02-09-10-01-00
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm Proximity Transducer System
Mounting and constructionM10 x 1 thread · With armor
Measurement roleNon-contact vibration and position sensing
Probe Configuration ＋
Probe tip diameter8 mm
Unthreaded length20 mm
Overall case length90 mm
Cable and Approval ＋
Total length1.0 m (3.3 ft)
ConnectorMiniature coaxial ClickLoc connector with protector
Cable typeStandard cable
ThreadM10 x 1
Agency approvalOption 00 · not required
System Performance ＋
With matching 3300 XL 8 mm components, the system provides a 2.0 mm (80 mil) linear range and 7.87 V/mm (200 mV/mil) scale factor under the manufacturer’s stated conditions.
Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN. Ordering-code and performance values require the complete matched transducer system and the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 330104-02-09-10-01-00 used for?＋

330104-02-09-10-01-00 is a 3300 XL 8 mm proximity probe configured for non-contact vibration and position measurements in a matched transducer system.

What does the 330104-02-09-10-01-00 code specify?＋

For 330104-02-09-10-01-00, 330104 identifies the M10 x 1 armored probe; 02 specifies 20 mm unthreaded length, 09 specifies 90 mm case length, 10 specifies 1.0 m total length, 01 specifies ClickLoc with protector and standard cable, and 00 means approval is not required.

Can 330104-02-09-10-01-00 be substituted with a similar part number?＋

Do not substitute 330104-02-09-10-01-00 by appearance or family name alone. Compare the complete order code, thread, probe geometry, total length, connector, cable type, approval option and matching system components.

What system performance applies to 330104-02-09-10-01-00?＋

330104-02-09-10-01-00 uses the 3300 XL 8 mm system’s nominal 2.0 mm linear range and 7.87 V/mm scale factor when paired with the specified matching components under stated conditions.

What should I provide for a 330104-02-09-10-01-00 quotation?＋

Send the complete 330104-02-09-10-01-00 nameplate, quantity, installed probe-extension cable-Proximitor chain, mounting details, hazardous-area requirement and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and installed probe, extension cable and Proximitor Sensor details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330104-02-09-10-01-00

Official manufacturer documentation for the Bently Nevada 3300 XL 8 mm proximity probe and matched transducer system, shown here for exact model verification.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 identifies 330104 as the armored 3300 XL 8 mm probe with M10 x 1 thread; the full order code specifies its unthreaded length, case length, total length, connector, cable and approval option.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN.

3300 XL 8 MM TRANSDUCER RELATIONSHIP

How 330104-02-09-10-01-00 Fits into the 3300 XL 8 mm System

Bently Nevada is the manufacturer. 330104-02-09-10-01-00 is a 3300 XL 8 mm armored proximity probe with M10 x 1 thread, 20 mm unthreaded length, 90 mm case length, 1.0 m total length, a protected miniature coaxial ClickLoc connector and no approval requirement.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · TRANSDUCER SYSTEM
PROBE GEOMETRY

8 mm Armored Probe

The 330104 armored probe uses an M10 x 1 thread, 20 mm unthreaded length and 90 mm case length.

CABLE AND CONNECTOR

1.0 m ClickLoc Cable

The order code specifies 1.0 m total length, standard cable and a miniature coaxial ClickLoc connector with connector protector.

MATCHED SYSTEM

Probe · Cable · Proximitor

The probe must be used with compatible 3300 XL 8 mm extension cable and Proximitor Sensor components for specified system performance.

System relationship: the complete order code, connector, cable length and matching extension cable and Proximitor Sensor must suit the installed 3300 XL 8 mm system.
APPLICATION AREAS

Measurement and integration points for 330104-02-09-10-01-00

Radial VibrationSupports non-contact shaft radial-vibration measurement in compatible monitoring systems.
Axial PositionSupports non-contact axial-position measurement when installed with the specified matched components.
APPLICATION CENTER 330104-02-09-10-01-00 3300 XL 8 mm Proximity Probe
Keyphasor and SpeedMay be applied to Keyphasor and speed sensing where the machine and monitoring configuration require it.
Fluid-Film Bearing MachinesDesigned for proximity measurements commonly used on rotating machinery with fluid-film bearings.
