 /Bently Nevada 330104-01-09-90-01-05 3300 XL 8 mm Proximity Probe

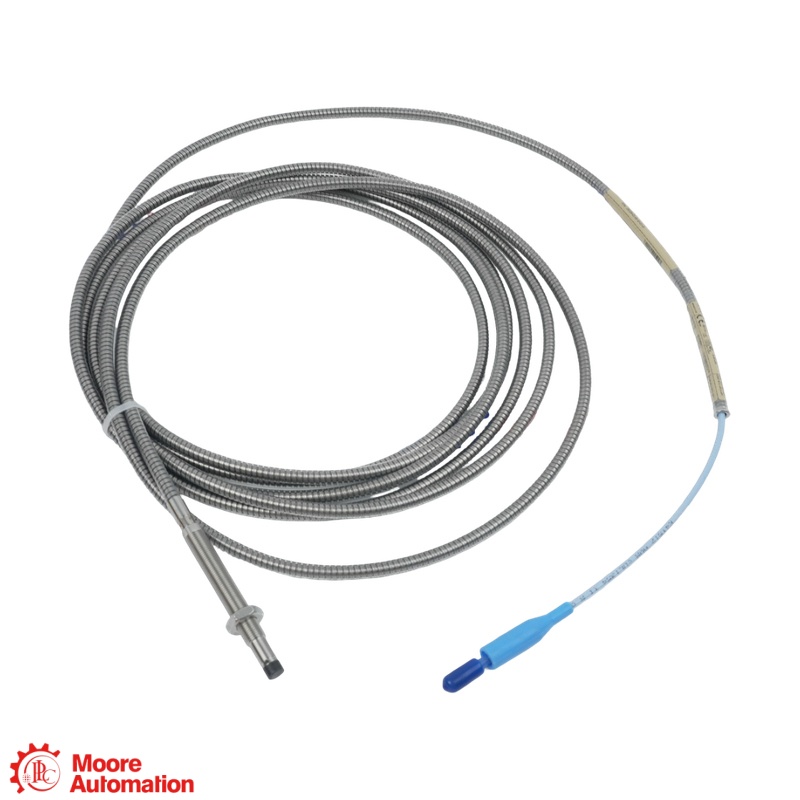

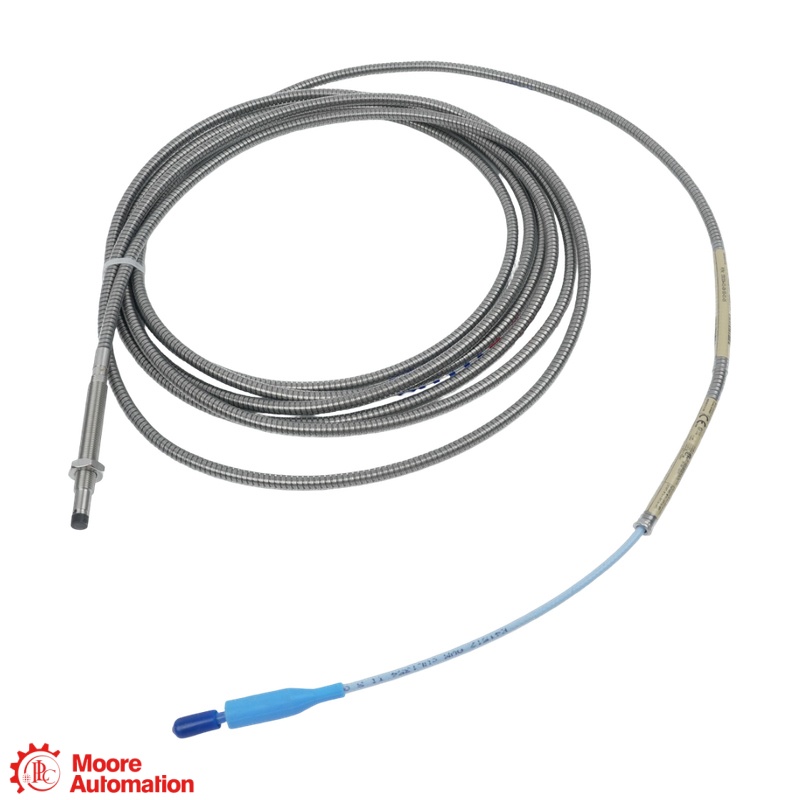

Bently Nevada 330104-01-09-90-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-01-09-90-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-01-09-90-01-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330104-01-09-90-01-05 3300 XL 8 mm Proximity Probe

3300 XL 8 MM · ARMORED PROXIMITY PROBE

330104-01-09-90-01-05

330104-01-09-90-01-05 — a Bently Nevada 3300 XL 8 mm armored proximity probe with a M10 x 1 case thread, 10 mm unthreaded length, 90 mm overall case, 9.0 m lead, protected ClickLoc connector and CSA, ATEX and IECEx approvals.

PROBE TIP8 mm
CASE90 mm
LEAD9.0 m
THREADM10 x 1
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROBE
3300 XL 8 MM ARMORED PROXIMITY PROBE

330104-01-09-90-01-05

8 mm tip · 90 mm case · 9.0 m lead

Armored 3300 XL 8 mm proximity probe

NONCONTACTING PROXIMITY PROBE
330104-01-09-90-01-05 — An armored Bently Nevada 3300 XL 8 mm proximity probe. The six part-number fields specify its case thread, unthreaded length, overall case length, lead length, protected ClickLoc connection and approval option.
CONFIGURATION NOTE
330104 selects an armored 8 mm probe with M10 x 1 thread; 01 is 10 mm unthreaded; 09 is 90 mm case length; 90 is 9.0 m total lead; 01 specifies standard cable with a protected ClickLoc connector; 05 specifies CSA, ATEX and IECEx approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330104
Probe family3300 XL 8 mm armored probe; M10 x 1
01
Unthreaded length10 mm
09
Overall case length90 mm
90
Total probe lead9.0 m
01
Connector and cableClickLoc connector with protector; standard cable
05
Agency approvalCSA, ATEX and IECEx approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM ARMORED PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE TIP8 mm
CASE90 mm
LEAD9.0 m
THREADM10 x 1
Exact-model configuration and engineering data.
Configuration note 330104 selects an armored 8 mm probe with M10 x 1 thread; 01 is 10 mm unthreaded; 09 is 90 mm case length; 90 is 9.0 m total lead; 01 specifies standard cable with a protected ClickLoc connector; 05 specifies CSA, ATEX and IECEx approvals.
General Information −
BrandBently Nevada
Part number330104-01-09-90-01-05
Product typeArmored proximity probe
Product family3300 XL 8 mm Proximity Transducer System
Probe configuration8 mm tip; armored; M10 x 1 case
Unthreaded length10 mm (option 01)
Ordering Configuration ＋
Overall case length90 mm (option 09)
Lead length9.0 m (option 90)
Connector / cableProtected ClickLoc; standard cable (01)
Environmental and Mechanical ＋
Agency approvalsCSA, ATEX and IECEx approvals (option 05)
Case threadM10 x 1
System performance3300 XL 8 mm system: 2.0 mm linear range; set gap per manual
Installation Guidance ＋
Confirm the M10 x 1 machine thread, 90 mm case clearance and 10 mm unthreaded section. Protect the ClickLoc connection and match the 9.0 m probe lead to a compatible 3300 XL 8 mm Proximitor system length; check applicable approvals and set the probe gap per the manufacturer manual.
FAQ

Questions Buyers Ask Most

Which thread, armor and case length are ordered for 330104-01-09-90-01-05?＋

330104-01-09-90-01-05 is an armored 8 mm probe with M10 x 1 thread, 10 mm unthreaded length and 90 mm overall case length. Confirm the machine mounting thread and physical clearance before ordering.

What monitoring applications suit 330104-01-09-90-01-05?＋

330104-01-09-90-01-05 can be used in a compatible 3300 XL 8 mm system for noncontacting vibration or position measurement. Check the machine target, gap, Proximitor configuration and monitor channel against the installation manual.

What do the lead and connector codes mean for 330104-01-09-90-01-05?＋

The full ordering code for 330104-01-09-90-01-05 specifies a 9.0 m total probe lead (option 90) and option 01: standard cable with a miniature coaxial ClickLoc connector and protector. Match the 9.0 m lead to a compatible 9.0 m Proximitor system; do not add an extension cable unless the complete system length is validated.

Which approvals and system setup apply to 330104-01-09-90-01-05?＋

For 330104-01-09-90-01-05, option 05 denotes CSA, ATEX and IECEx approvals. Confirm local approval applicability and install the probe with a compatible 3300 XL 8 mm Proximitor sensor; the complete system's published linear range is 2.0 mm, with recommended gap setting 1.27 mm.

What information is needed to order 330104-01-09-90-01-05?＋

For 330104-01-09-90-01-05, provide the complete six-field part number, quantity, thread, case and lead configuration, approval jurisdiction, extension-cable requirement and compatible Proximitor/monitor details. Do not substitute a related 3300-series configuration without checking the official ordering table.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330104-01-09-90-01-05 nameplate, machine mounting drawing, extension-cable and Proximitor details, target/gap requirement and site approval need for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330104-01-09-90-01-05

Official Bently Nevada ordering information identifies the 3300 XL 8 mm probe family and decodes the six configuration fields. Check the full system length, extension cable and site approvals before installation.

Official manufacturer datasheet

Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AN lists the 330104 armored probe and the unthreaded-length, case-length, total-length, connector/cable and approval ordering options.

OPEN OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Ordering-code meanings are based on official Bently Nevada datasheet 141194 Rev. AN; confirm the current approval guide and installation manual before ordering.

3300 XL 8 MM SYSTEM RELATIONSHIP

How 330104-01-09-90-01-05 Fits a Proximity Measurement System

Bently Nevada is the manufacturer. 330104-01-09-90-01-05 is an armored 8 mm probe. Its lead connects to a length-matched extension cable when required, then to a compatible Proximitor sensor; the sensor output goes to the machinery monitor.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mmPRODUCT FAMILY · ARMORED PROXIMITY PROBE
PROBE AT MACHINE

8 mm Armored Probe

The 8 mm tip senses noncontacting shaft displacement through its M10 x 1 threaded case.

CABLE PATH

Matched System Length

Combine the 9.0 m probe lead with the correct extension cable if required by the selected Proximitor system length.

SENSOR / MONITOR

Signal to Monitor

The compatible Proximitor conditions the signal for the selected machinery monitor.

System relationship: the 8 mm probe, cable length and Proximitor must form a compatible 3300 XL 8 mm measurement system.
APPLICATION AREAS

Functions and application roles for 330104-01-09-90-01-05

Radial VibrationSupports radial vibration measurement when paired with the correct 3300 XL 8 mm sensor and monitor.
Axial PositionSupports axial position where the measurement range and installation geometry are suitable.
APPLICATION CENTER 330104-01-09-90-01-05 Armored 3300 XL 8 mm proximity probe
Probe Gap SetupSet the installed probe gap per the 3300 XL 8 mm manual; the recommended 8 mm system gap is 1.27 mm.
Retrofit PlanningVerify M10 x 1 case thread, 90 mm case length, 9.0 m lead and approval needs before replacing a probe.
