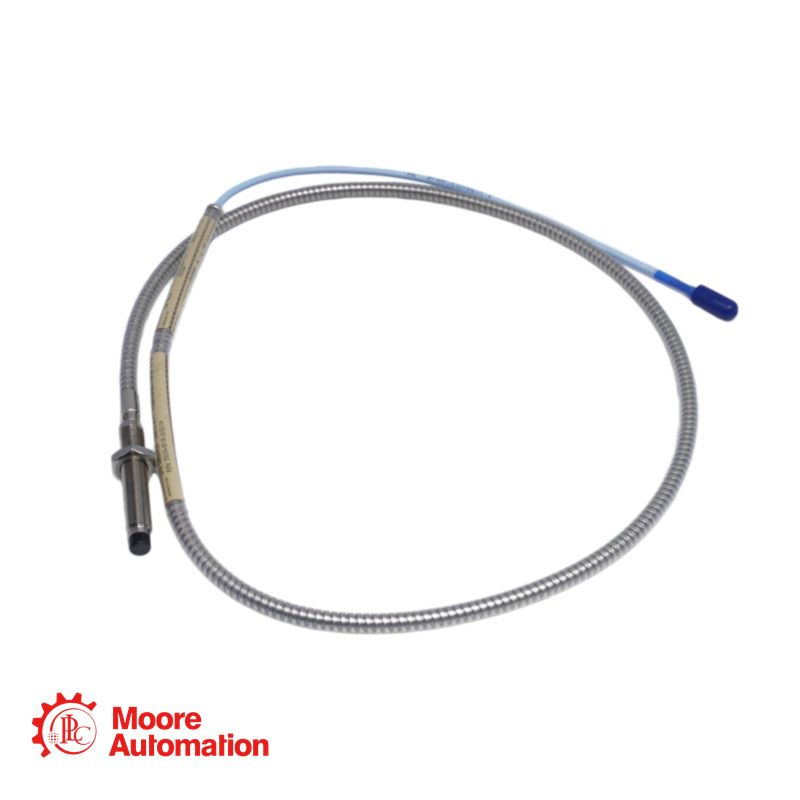

330104-00-06-10-01-CN is 3300 XL 8 mm Probe, M10 x 1 thread, with armor
ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
330104-00-06-10-01-CNน้ำหนัก :
0.05kgมิติ :
1.8x1.6x113cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Proximity Probe, Metric
330104-00-06-10-01-CN Description
330104-00-06-10-01-CN is 3300 XL 8 mm Probe, M10 x 1 thread, with armor.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and
3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring.
330104-00-06-10-01-CN Specifications
Unthreaded Length Option: 0.0 in
Output resistance:50 Ω
Overall Case Length Option:60 mm
Total Length Option:1.0 meter (3.3 feet)
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option: in Chinese area
Recommended Gap Setting:1.0 mm (40 mils)
330104-00-06-10-01-CN FAQ
What is a "reverse mount" probe and when is it used?
A reverse mount probe (330104 series) has the cable exiting from the tip end of the probe rather than the back. This design is used in applications where space behind the probe mounting location is limited or inaccessible, such as in thrust bearings or confined machine casings.
What is the purpose of the "connector protector" (option 01)?
The connector protector provides environmental sealing for the connection point between the probe and extension cable. It prevents moisture, oil, and other contaminants from entering the ClickLoc™ connector, which could otherwise degrade signal quality and cause measurement errors.
What does the "-CN" approval code indicate?
The "-CN" code indicates that this probe is certified for use in China with specific approvals from Chinese regulatory bodies, likely including CCC (China Compulsory Certification) and/or NEPSI (National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation) for hazardous location use.
What is the correct gap setting for this reverse mount probe?
For standard 3300 XL 8 mm systems, the recommended gap setting is typically 1.27 mm (50 mils) , which places the probe in the center of its 2.0 mm (80 mil) linear range. The reverse mount design does not change the electrical characteristics or gap requirements.
What is the maximum thread engagement length for this probe?
For 1/4-28 thread, the maximum recommended thread engagement is 0.375 inches (9.5 mm) . Exceeding this may cause binding during installation or damage to the probe. Note that reverse mount probes have different installation considerations than standard mount probes.
Can this probe be used with existing 3300 XL monitoring systems?
Yes, the 330104 reverse mount probe is fully compatible with 3300 XL Proximitor Sensors and monitoring systems. When paired with the appropriate extension cable, it forms a complete 3300 XL transducer system for vibration and position measurements.
