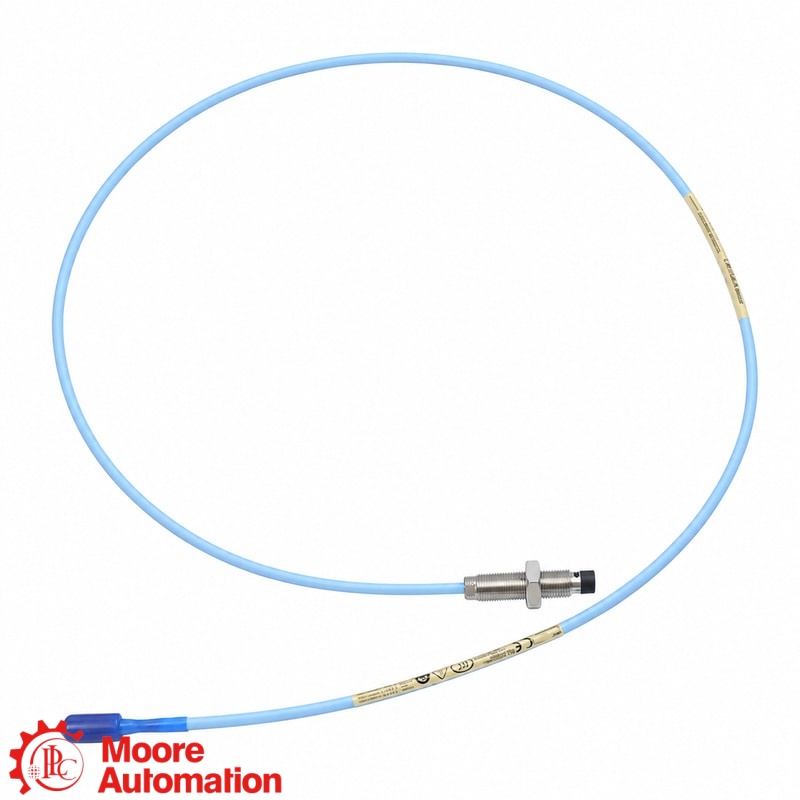

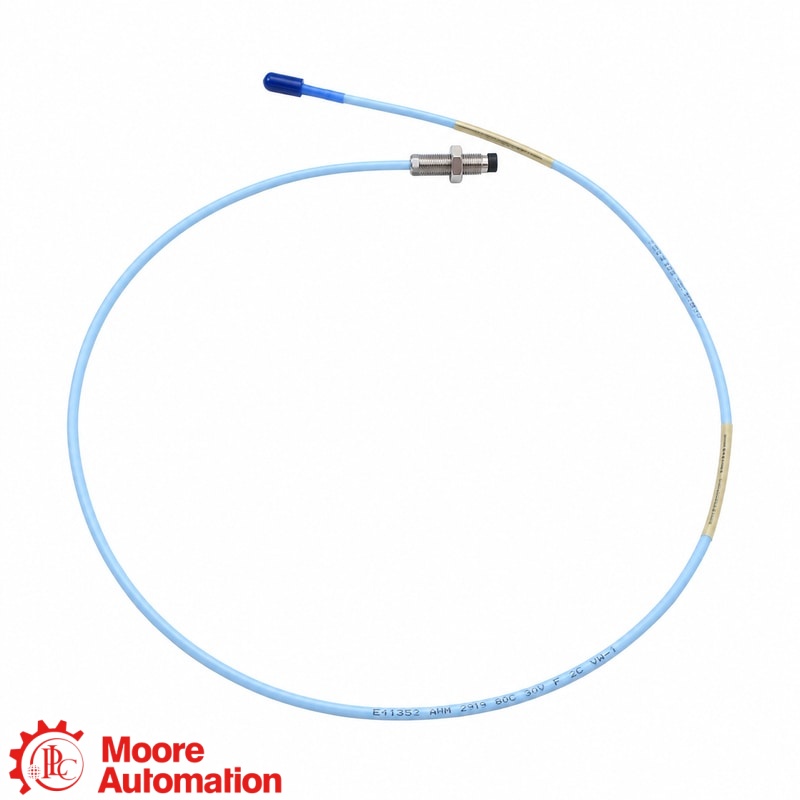

Bently Nevada 330103-02-04-10-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-02-04-10-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-02-04-10-02-CN 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-02-04-10-02-CN 3300 XL 8 mm Proximity Probe

3300 XL 8 MM · PROXIMITY PROBE

330103-02-04-10-02-CN

330103-02-04-10-02-CN — A Bently Nevada 3300 XL 8 mm Proximity Probe with M10 × 1 thread, 20 mm unthreaded length, 40 mm overall case length, 1.0 m total length, ClickLoc connector and the CN approval option.

PROBE TIP8 MM
THREADM10 × 1
CASE LENGTH40 MM
TOTAL LENGTH1.0 M
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
สอบถามตอนนี้
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330103-02-04-10-02-CN

M10 × 1 thread · 20 mm unthreaded · 40 mm case · 1.0 m total length

3300 XL 8 mm Proximity Probe

3300 XL 8 MM SYSTEM INPUT
330103-02-04-10-02-CN — This probe connects through a matched 3300 XL 8 mm extension cable to a compatible Proximitor Sensor.
CONFIGURATION NOTE
330103 identifies the M10 × 1 probe without armor; 02 specifies 20 mm unthreaded length; 04 specifies 40 mm overall case length; 10 specifies 1.0 m total length; 02 specifies a miniature coaxial ClickLoc connector with standard cable and no connector protector; CN specifies the China approval option.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330103
Base modelM10 × 1 probe · Without armor
02
Unthreaded length20 mm
04
Overall case length40 mm
10
Total length1.0 metre
02
Connector / cableClickLoc · Standard cable · No protector
CN
Approval optionChina hazardous-area approval
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE TIP8 MM
THREADM10 × 1
CASE LENGTH40 MM
TOTAL LENGTH1.0 M
Configuration from manufacturer ordering data.
Configuration checkConfirm the complete order code, probe geometry, total system length, connector option, approval suffix and matched 3300 XL 8 mm system before ordering.
General Information −
BrandBently Nevada
Part number330103-02-04-10-02-CN
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm Proximity Transducer System
Probe mountingM10 × 1 thread
ArmorWithout armor
Probe Configuration ＋
Unthreaded length20 mm
Overall case length40 mm
Total length1.0 metre
ConnectorMiniature coaxial ClickLoc connector
CableStandard cable
Connector protectorNot included
Electrical and Mechanical ＋
Probe tip diameter8.0 mm
Linear range2.0 mm (80 mil)
Scale factor7.87 V/mm (200 mV/mil) ±5%
Recommended gap1.27 mm (50 mil), approximately −9 Vdc
Probe temperature range−52 to +177 °C
Minimum bend radius25.4 mm
System Compatibility ＋
Use this probe with the matched 3300 XL 8 mm extension cable and Proximitor Sensor for the manufacturer-specified total system length. CN is the country-specific China hazardous-area approval option; verify the complete order code and applicable approval markings before purchase.
Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN. CN availability is confirmed by Approvals Quick Reference Guide 108M1756. System performance requires the correct matched probe, extension cable and Proximitor Sensor under the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 330103-02-04-10-02-CN used for?＋

330103-02-04-10-02-CN is a Bently Nevada 3300 XL 8 mm proximity probe configured with M10 × 1 thread, 20 mm unthreaded length, 40 mm overall case length, 1.0 m total length, ClickLoc connector and the CN approval option.

What does the 330103-02-04-10-02-CN code specify?＋

For 330103-02-04-10-02-CN, 330103 is the M10 × 1 probe without armor; 02 is 20 mm unthreaded length; 04 is 40 mm overall case length; 10 is 1.0 m total length; the second 02 is ClickLoc with standard cable and no protector; CN is the China approval option.

Can 330103-02-04-10-02-CN be substituted with a similar part number?＋

Do not substitute 330103-02-04-10-02-CN by appearance or family name alone. Compare every ordering segment, the total matched system length, the extension cable, the Proximitor Sensor and the required approval.

What system components must match 330103-02-04-10-02-CN?＋

330103-02-04-10-02-CN must be paired with the appropriate 3300 XL 8 mm extension cable and Proximitor Sensor so the complete system length and configuration match the manufacturer’s requirements.

What should I provide for a 330103-02-04-10-02-CN quotation?＋

Send the complete 330103-02-04-10-02-CN nameplate, quantity, matched extension-cable and Proximitor Sensor details, required approval and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete probe label and matched 3300 XL 8 mm extension cable/Proximitor Sensor details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330103-02-04-10-02-CN

Official manufacturer documentation for the Bently Nevada 3300 XL 8 mm Proximity Probe and its matched proximity transducer system.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 identifies the 330103 M10 × 1 probe and its ordering options. This order code specifies 20 mm unthreaded length, 40 mm overall case length, 1.0 m total length, ClickLoc connector with standard cable and no protector, plus the CN approval option.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN. The Approvals Quick Reference Guide 108M1756 confirms the CN country-specific option for 330103.

3300 XL 8 MM SYSTEM CONNECTION

How 330103-02-04-10-02-CN Fits into the 3300 XL 8 mm System

Bently Nevada is the manufacturer. 330103-02-04-10-02-CN is the probe at the input of a matched 3300 XL 8 mm proximity transducer system. It connects through the appropriate extension cable to a compatible Proximitor Sensor.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · PROXIMITY SYSTEM
SYSTEM INPUT

3300 XL 8 mm Probe

The probe senses target displacement and feeds the matched transducer system.

INTERCONNECT

Matched Extension Cable

The selected extension cable completes the manufacturer-specified system length.

SIGNAL CONDITIONING

Proximitor Sensor

The compatible Proximitor Sensor conditions the probe signal for monitoring.

System relationship: probe → matched extension cable → compatible Proximitor Sensor.
APPLICATION AREAS

Functions and integration points for 330103-02-04-10-02-CN

Shaft VibrationSupports non-contact radial vibration measurement in a matched 3300 XL 8 mm system.
Axial PositionSupports axial or thrust position measurement with the matched system.
APPLICATION CENTER330103-02-04-10-02-CN3300 XL 8 mm Proximity Probe
Keyphasor ReferenceCan provide a once-per-turn reference signal in a correctly configured system.
Speed MeasurementSupports speed-related measurement when installed and conditioned as specified.
