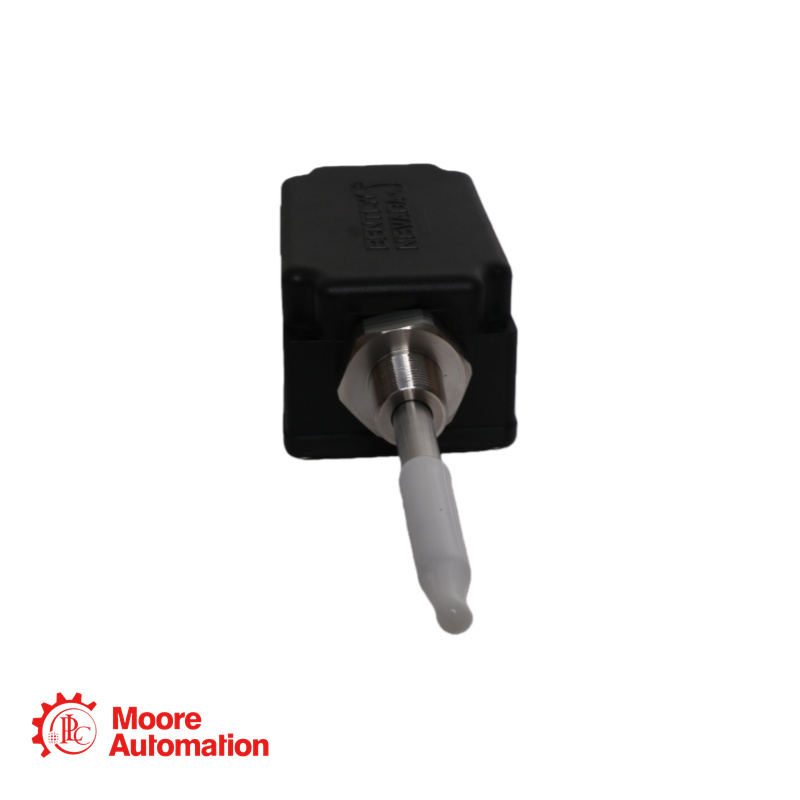

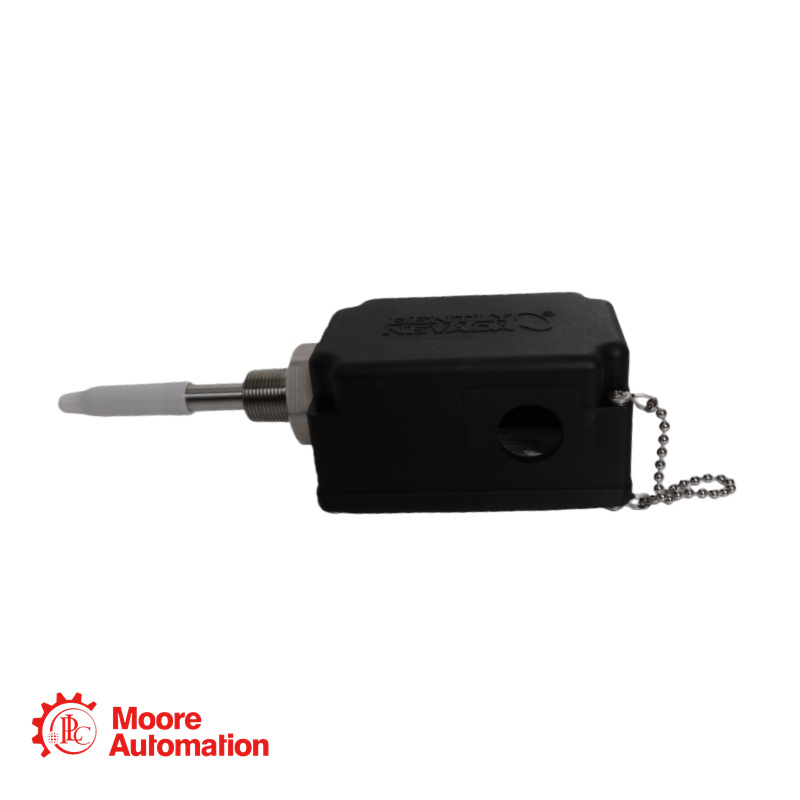

Bently Nevada 31000-16-10-15-063-03-02 Proximity Probe Housing Assembly

Sales Manager:

Phone/WhatsApp:

Email:

Frida

+86 15359408275

sales5@mooreplc.com

Product Introduction

Product Model:31000-16-10-15-063-03-02

Type: Proximity Probe Housing Assembly

Manufacturer: Bently Nevada

Shipment: DHL, UPS, Fedex, and TNT

Description:
The 31000-16-10-15-063-03-02 is a rugged, API 670-compliant proximity probe housing assembly designed for externally mounted radial vibration monitoring on industrial machinery, featuring a 3300 XL 8 mm probe and 1-meter cable. With a 1.5-inch standoff adapter and 6.3-inch probe penetration, it allows flexible installation while providing NEMA 4X/IP66 environmental protection and suitability for intrinsically safe hazardous areas. Constructed from corrosion-resistant PPS thermoplastic and stainless steel, this housing includes multiple conduit fittings, supports high mechanical loads, and is certified for use in demanding temperature and impact conditions.

Specification:

Probe with Connector (Option A: 16): Includes 3300 XL 8 mm proximity probe.
Probe Cable Length (Option B: 10): 1.0 meter (39 inches) probe cable.
Standoff Adapter Length (Option C: 15): 1.5 inches (38 mm) standoff adapter length (minimum 1.5 in, maximum 7.5 in, ordered in 0.5 in increments).
Probe Penetration Option (Option D: 063): Probe sleeve penetration length of 6.3 inches (160 mm) (minimum 1.0 in, ordered in 0.1 in increments).
Fittings (Option E: 03): Includes two plugs and one 3/4-14 NPT fitting, plus one 3/4-14 to 1/2-14 NPT stainless steel reducer, and one cable seal grip with grommets for cable sizes 1/8 to 3/8 inches.
Mounting Thread Option (Option F: 02): 3/4-14 NPT mounting thread (required when a standoff adapter is used).
Impact Strength: Certified to withstand 4 Joule impacts at -39°C and +115°C; CSA verified for 7 Joule impact at ambient temperature.
Recommended Torque for Retaining Nut: 29.4 N·m (260 in-lb).
