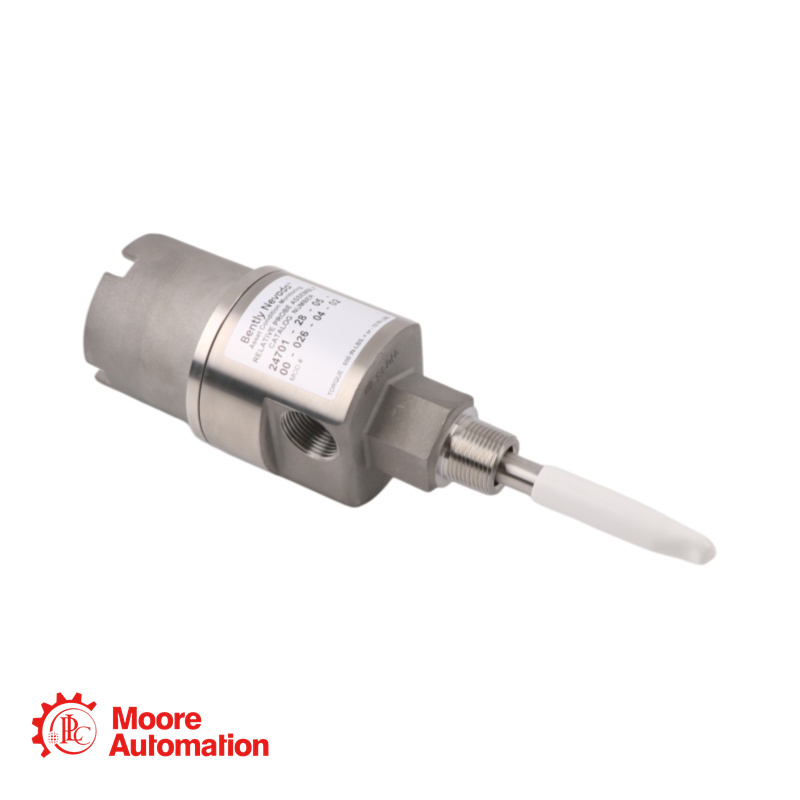

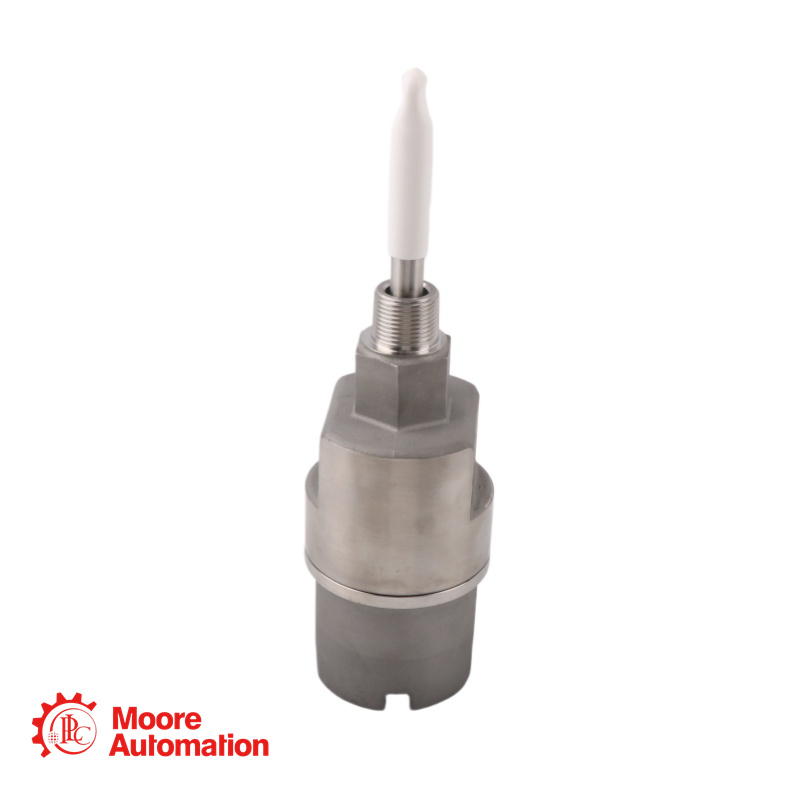

Bently Nevada 24701-28-05-65-105-03-02 Proximity Probe Housing Assembly

CONTACT US TO GET 24701-28-05-65-105-03-02'S PRICE

24701-28-05-65-105-03-02 DESCRIPTION

24701-28-05-65-105-03-02 FEATURES

❯ Material: The housing body is made of 303 stainless steel, and the probe sleeve is 304 stainless steel for high corrosion resistance.
❯ External Access: Allows for probe replacement or gap adjustment without disassembling the machine.
❯ Total Reach: The combined length of the standoff and penetration (C + D) is 17.0 inches.
❯ Note: Because this exceed 12 inches (304 mm), an additional sleeve support is required to prevent resonance/vibration.
❯ Compliance: Fully compliant with API 670 standards for externally mounted housings.
❯ Environmental: Designed for harsh conditions with an operating temperature range of -51°C to +177°C (-60°F to +351°F).

24701-28-05-65-105-03-02 SPECIFICATIONS

24701-28-05-65-105-03-02 FREQUENTLY ASKED QUESTIONS

The C dimension is the length of the standoff adapter that spaces the housing away from the machine surface. The D dimension is the length that the probe sleeve penetrates into the machine. Together, they determine the total probe tip position relative to the target.

※What type of probe is included with this assembly?

Option "28" specifies a 3300 XL 8mm reverse mount probe with selectable hazardous area approvals. The probe cable length is 0.5 meters, as specified by the "05" option.

※What is the purpose of the fittings option "03"?

Option "03" provides a comprehensive set of conduit fittings including one plug, one reducer (3/4-14 NPT to 1/2-14 NPT), and a cable seal grip with grommets. This allows for flexible conduit connections and proper sealing of the cable entry point to maintain the environmental integrity of the housing.
