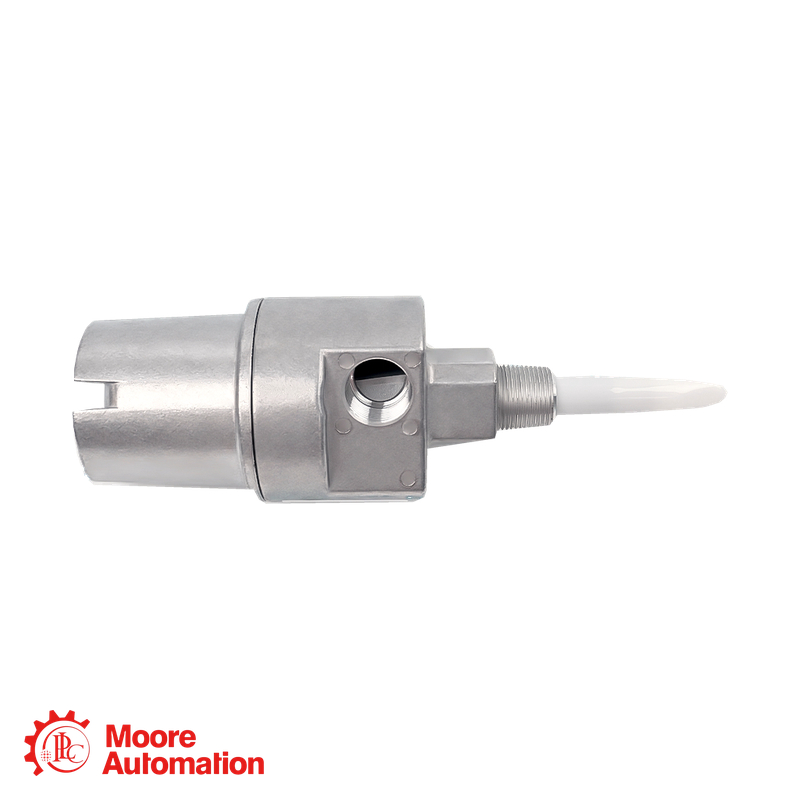

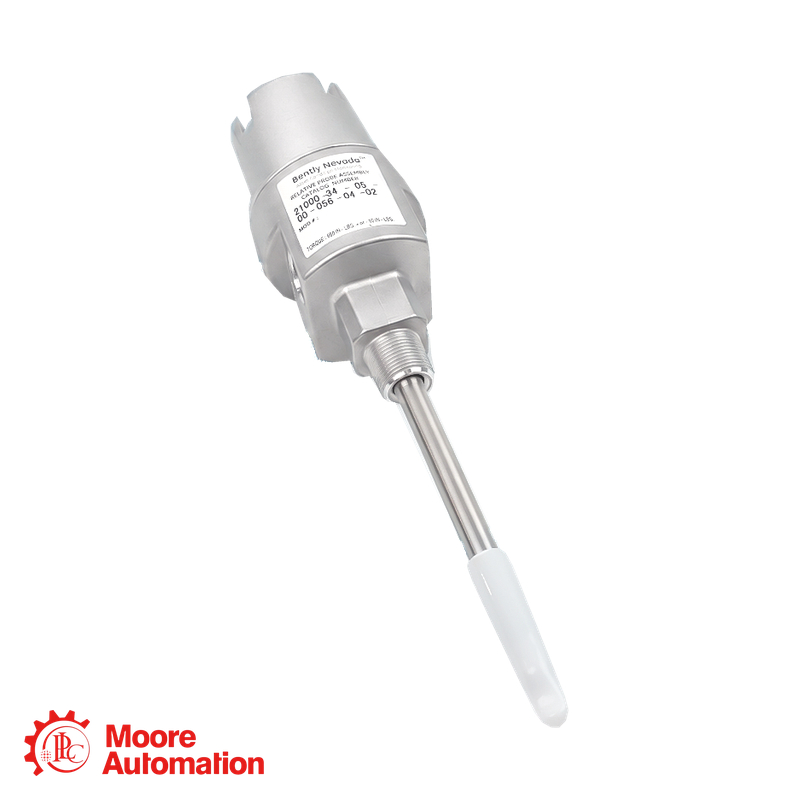

The Bently Nevada 21000-34-05-00-022-03-02 is an aluminum proximity probe housing assembly for externally mounting a 3300 XL 8 mm reverse-mount probe
ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
21000-34-05-00-022-03-02น้ำหนัก :
1.1 kgมิติ :
34.3 × 5.59 × 8.3 cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
3300 XL NSv Probe Housing
|
Product Enquiry |
Contact Details |
|
Model Number |
21000-34-05-00-022-03-02 |
|
Sales Contact |
Frida |
|
Fast Contact |
|
|
Email Request |
|
|
Please Provide |
Required quantity and destination country |
Product Overview
The Bently Nevada 21000-34-05-00-022-03-02 is an aluminum proximity probe housing assembly for externally mounting a 3300 XL 8 mm reverse-mount probe. Option 34 supplies the probe with a connector protector and selectable hazardous-area approvals. This configuration has a 0.5 m probe cable, no standoff adapter, 2.2 in probe penetration, fittings option 03, and a 3/4-14 NPT mounting thread. Its enclosed construction protects the probe connection while allowing external access for probe positioning and maintenance.
Model Number Breakdown
Complete Model: 21000-34-05-00-022-03-02
21000 = Aluminum proximity probe housing assembly.
34 = 3300 XL 8 mm probe with connector protector and selectable hazardous-area approval options.
05 = 0.5 m (20 in) probe cable.
00 = No standoff adapter.
022 = 2.2 in probe penetration.
03 = One 3/4-14 NPT plug;
one 3/4-14 to 1/2-14 NPT reducer;
one cable seal grip with grommets for:
1/8–3/16 in cable,
1/4–5/16 in cable,
5/16–3/8 in cable.
02 = 3/4-14 NPT mounting thread.
Technical Information
Parameter
Value
Manufacturer
Bently Nevada
Ordering Number
21000-34-05-00-022-03-02
Product Type
Proximity Probe Housing Assembly
Housing Body
Aluminum
Probe Sleeve
304 stainless steel
Probe Type
3300 XL 8 mm reverse-mount probe
Connector Protection
Connector protector included
Probe Cable Length
0.5 m (20 in)
Standoff Adapter
None
Probe Penetration
2.2 in (approx. 56 mm)
Penetration Adjustment Range
13 mm (±0.5 in)
Mounting Thread
3/4-14 NPT
Fittings
NPT plug, NPT reducer and cable seal grip
Cable Seal Grommet Ranges
1/8–3/16 in; 1/4–5/16 in; 5/16–3/8 in
Probe Operating and Storage Temperature
-51°C to +177°C
External Housing Standard
API 670
Industries Served
• Oil and gas production
• Power generation
• Petroleum refining
• Chemical and petrochemical processing
• Heavy industrial manufacturing
Application Areas
-External mounting of a 3300 XL 8 mm proximity probe
-Shaft radial-vibration measurement
-Shaft position and clearance monitoring
-Turbine and generator bearing housings
-Compressor, pump, fan and motor monitoring points
Key Highlights
Key Highlight
Details
Protected 8 mm probe
Option 34 provides a 3300 XL 8 mm probe with a connector protector.
Short cable configuration
The 0.5 m cable supports compact probe-to-system routing.
2.2 in penetration
Offers a defined probe reach for relatively shallow machine-case installations.
No standoff adapter
The probe reach is established directly by the 022 penetration option.
Field-ready fittings
Includes an NPT plug, reducer and cable seal grip with three grommet ranges.
Standard NPT mounting
Option 02 specifies a 3/4-14 NPT machine connection.
Frequently Asked Questions
1. Which probe is supplied with 21000-34-05-00-022-03-02?
Option 34 specifies a 3300 XL 8 mm probe with a connector protector.
2. Does this model include a standoff adapter?
No. The 00 field indicates that no standoff adapter is included.
3. What is included with fittings option 03?
It includes a 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with three grommet ranges.
4. What mounting connection does the housing use?
The final 02 option specifies a 3/4-14 NPT mounting thread.
